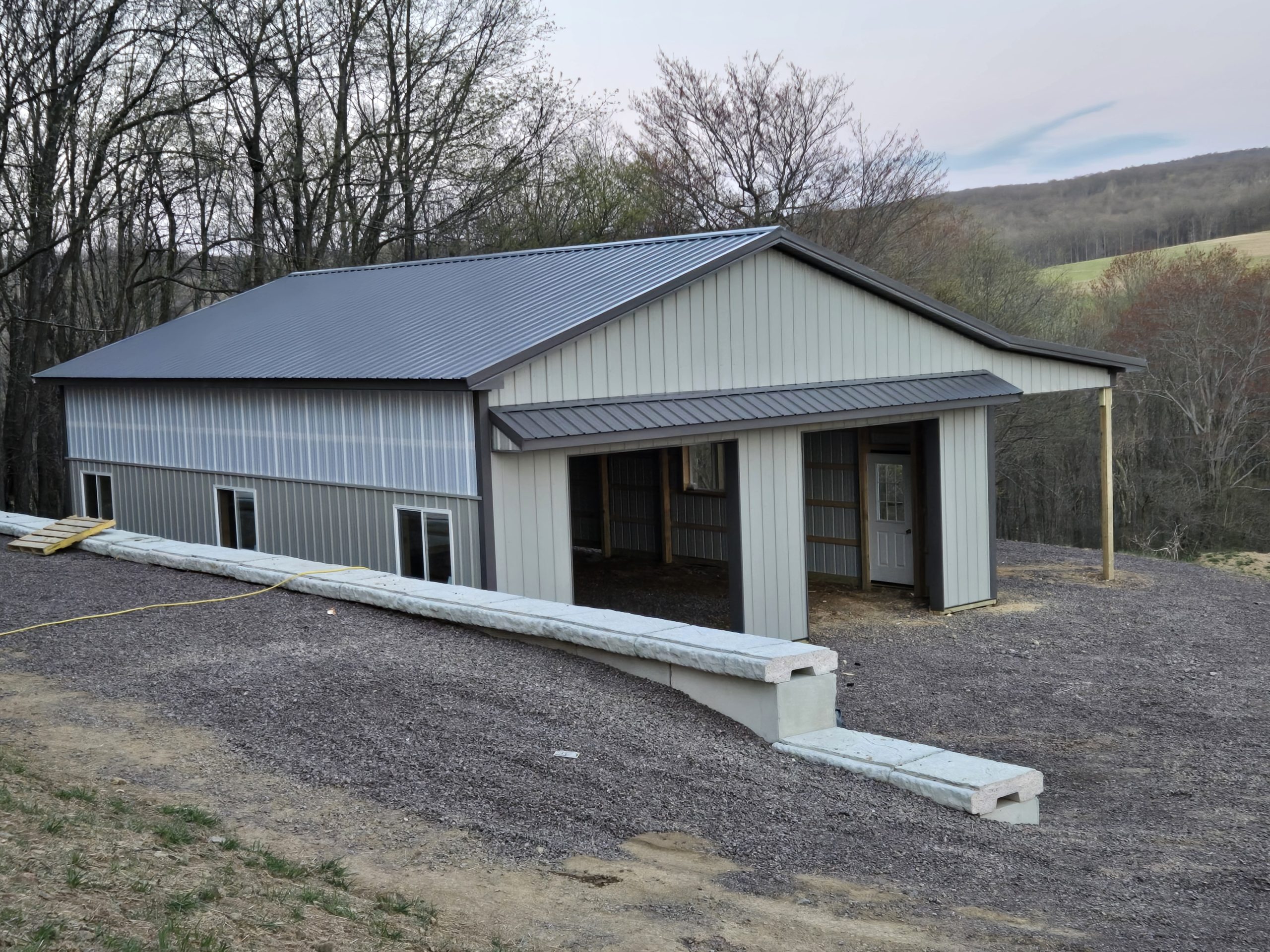

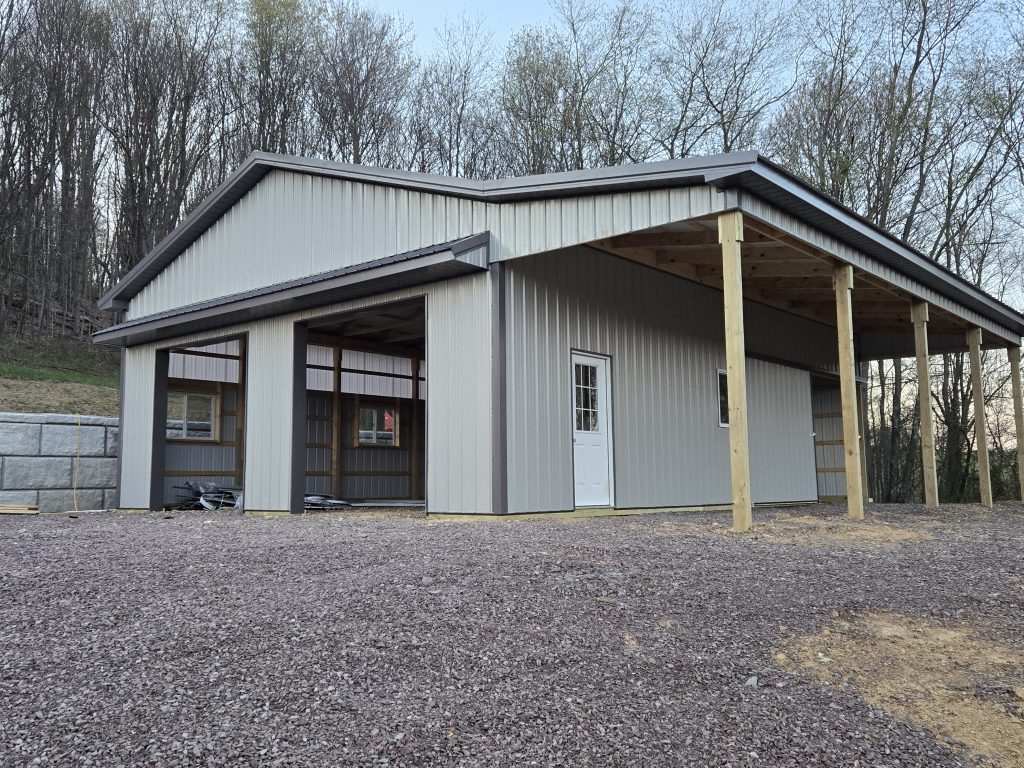

Click on the above image to view it in its full size.Building Specs:
30′ width x 40′ length x 12′ inside height

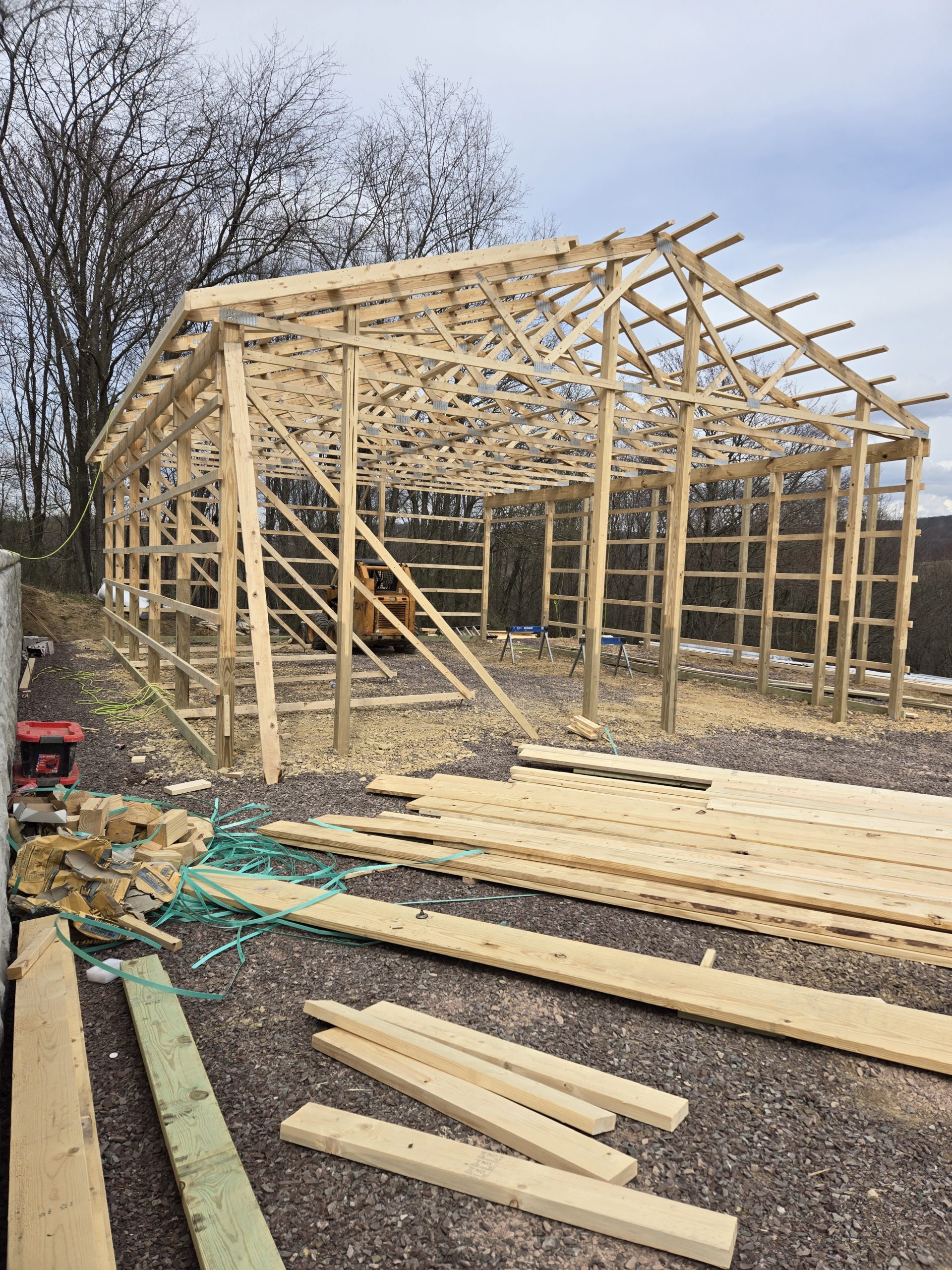

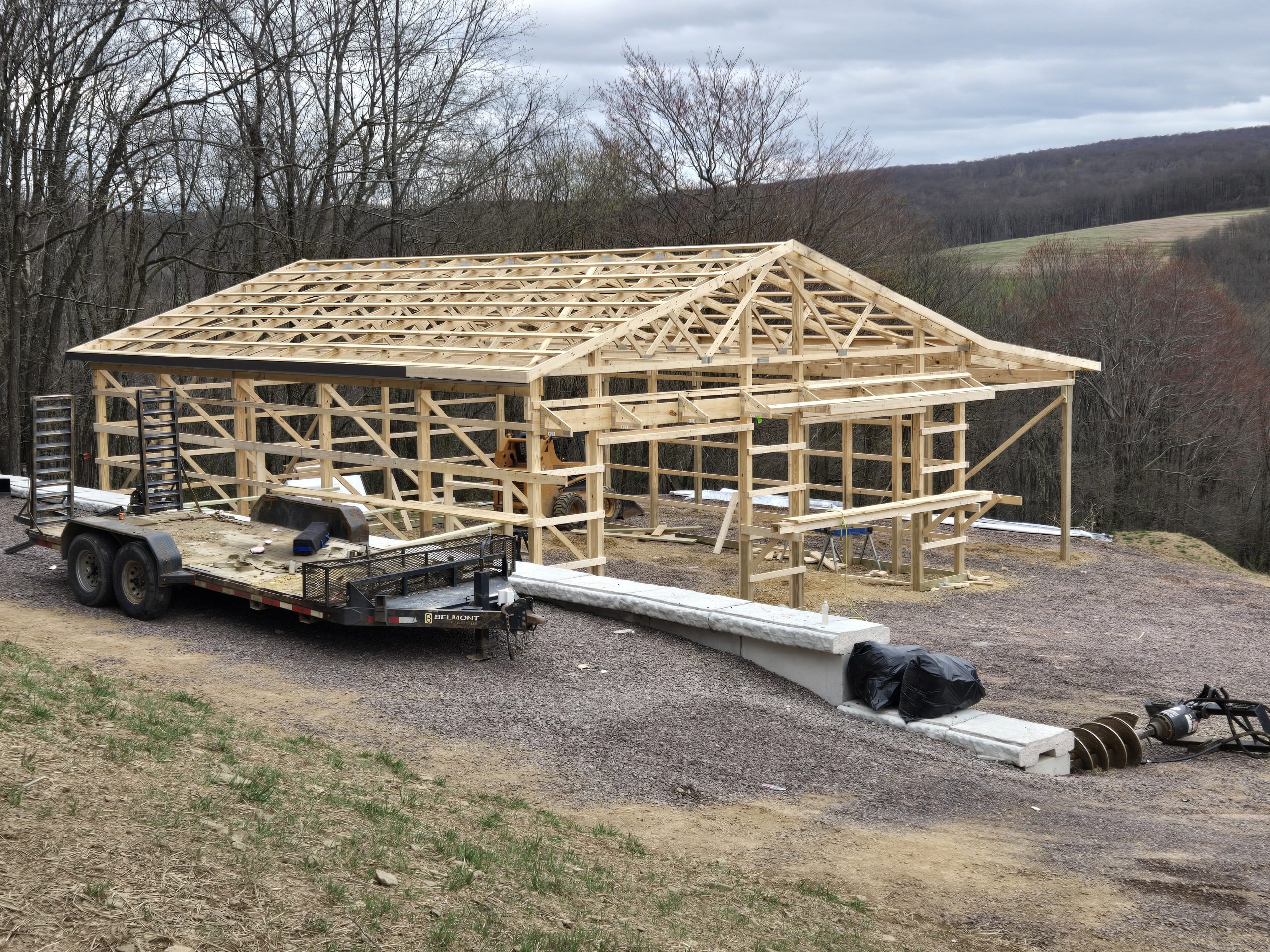

Roof System: 4′ o/c trusses Pitch: 4/12 Loading: 30-5-5 standard
Walls: 8′ o/c 3-Ply 2×6 Glulam Load-Bearing Posts
Siding: 28 Gauge Painted Steel (Gray)
Trim Color (Charcoal)
Roofing Type: 27 Gauge Painted Steel with Ridge Vent (Charcoal)
Overhangs: 12″ Boxed Vented on 1-eave & 2-gables (Charcoal) soffit and fascia
30 Lineal ft of Eyebrow Lift
Insulation/Underlayment: 1373 sqft of Radiant Insulation Barrier on Roof
2 – 9 x 9 Insulated Steel-Backed (White) Overhead Door(s) with 5 lite(s) and Hi-lift track
1 – 10 X 10 Single N/I (Gray) Sliding Door(s)
1 – 3′ X 6’8″ Fiberglass 9-Lite Entry Door(s)
6 – 4X3 Slider Insulated Window(s)
40 lineal ft of 4′ Sidelight White Opal Sidelight Belt

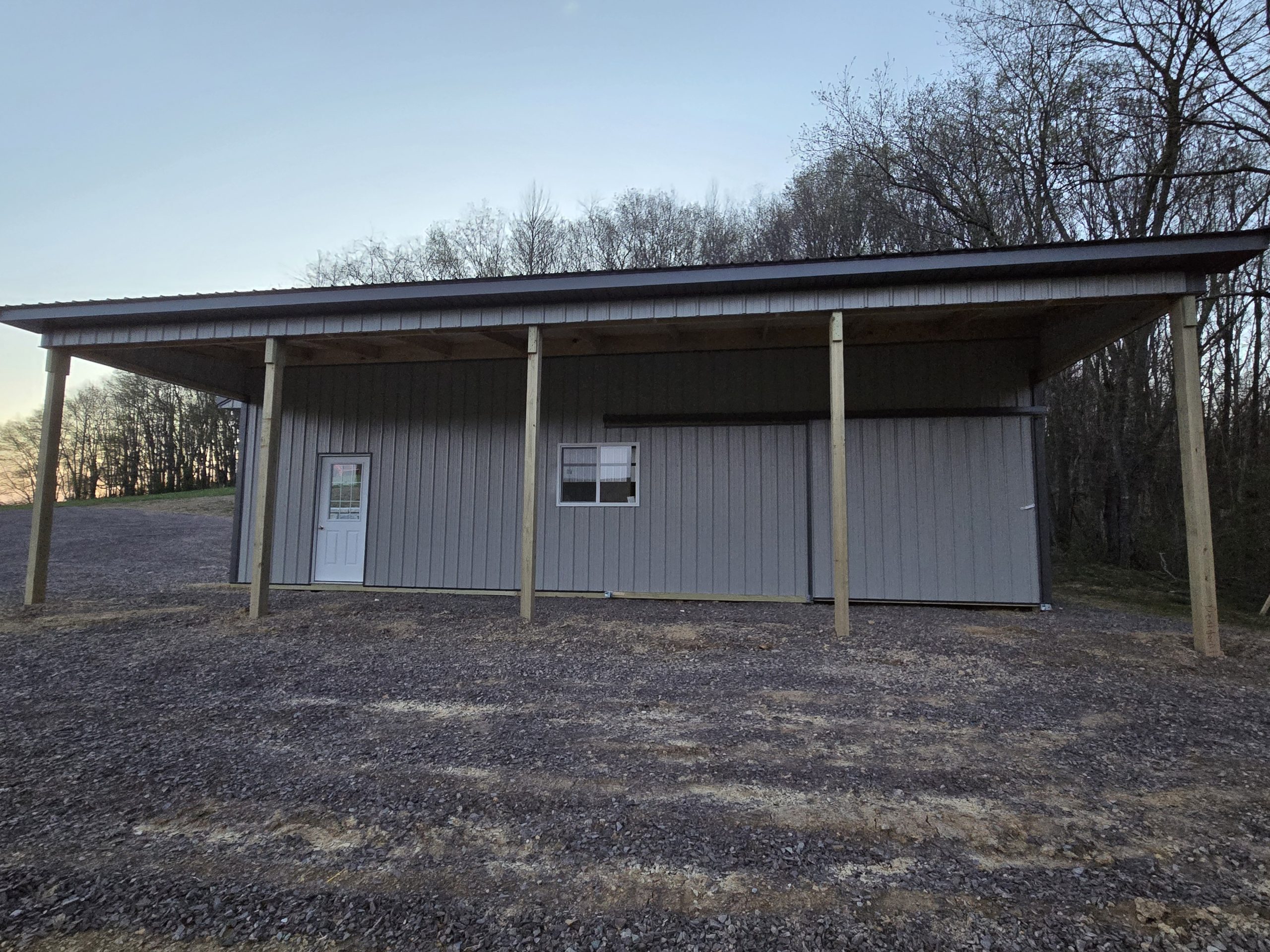

Lean-to #1
10 x 40 Open On Eave Lean-to with 2/12 pitch
Roofing Type: 27 Gauge Painted Steel with Ridge Vent (Charcoal)
Overhangs: 12″ Boxed Vented on 1-eave & 2-gables (Charcoal) soffit and fascia
Project# 050FWMR23
