Attic Building with Maximum Space
,

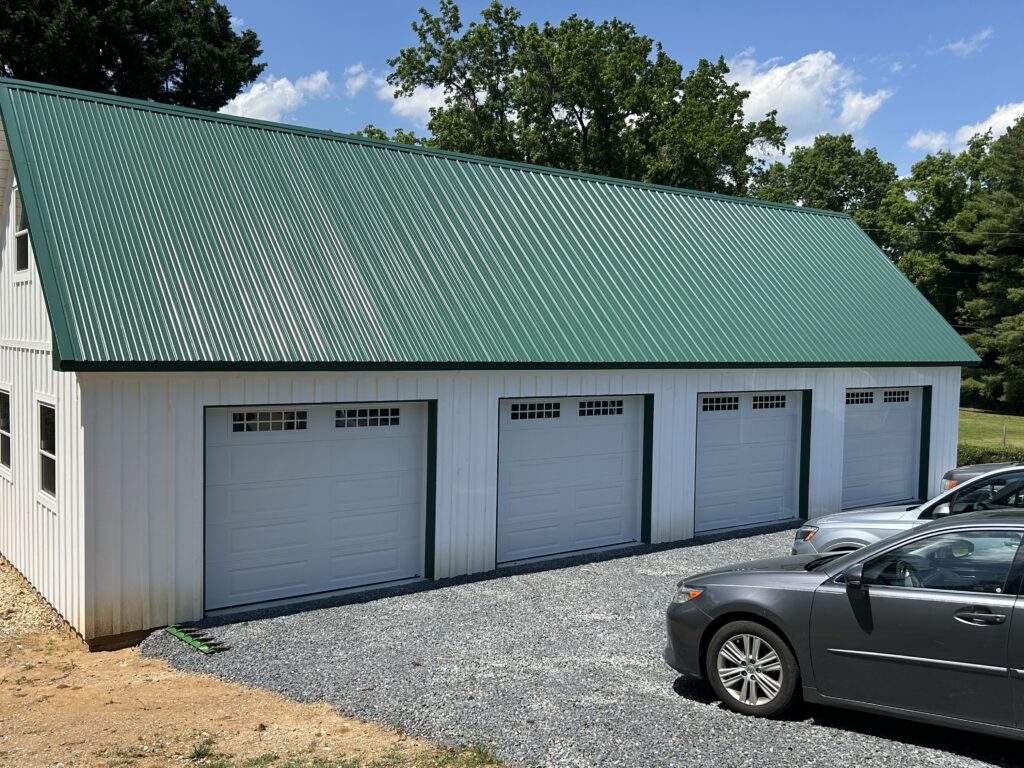

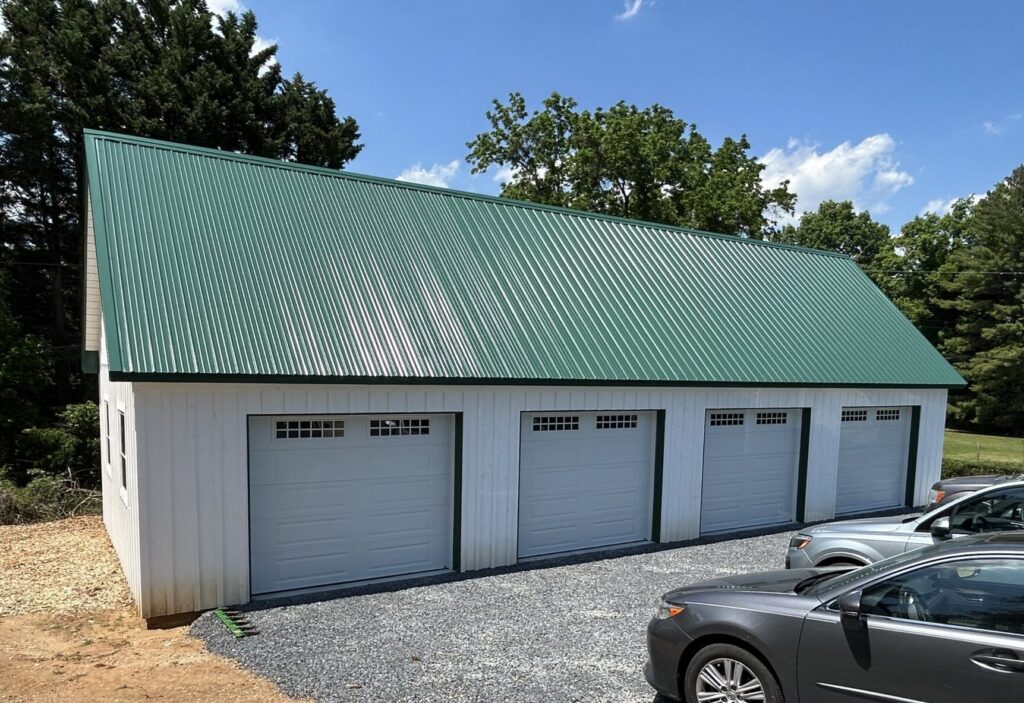

This 20′ x 58′ Post Frame is a great example of how to maximize usable space while creating a building that immediately stands out. The attic trusses throughout the entire building and the 12/12 roof pitch creates plenty of space upstairs and an eye-catching appearance from every angle. The four insulated garage doors across the front eave combined with full attic space leaves no shortage of functional space here!
m

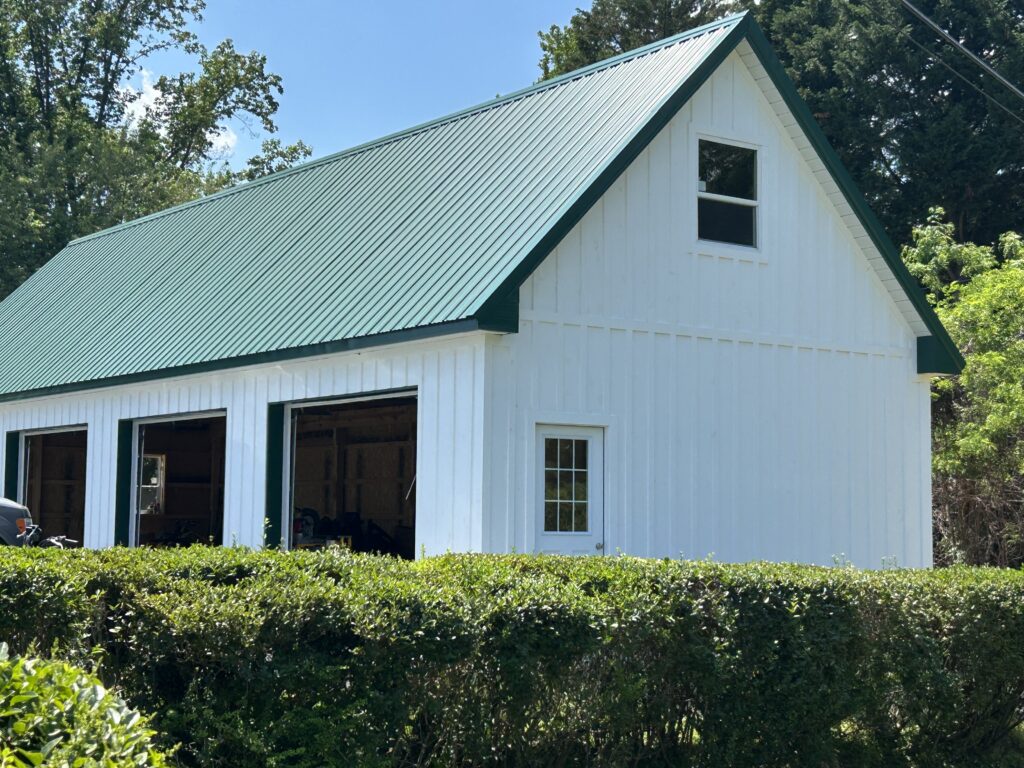

The customer made a great decision to paint the Pine Board & Batten siding white after construction, turning into into a timeless look that blends right into the Ivy Metal Roof. Whether it’s extra storage, workspace, or completely custom layout, we work with our customers to build spaces that work for them.
,
Building Specs
20′ width x 58′ length x 10′ inside height

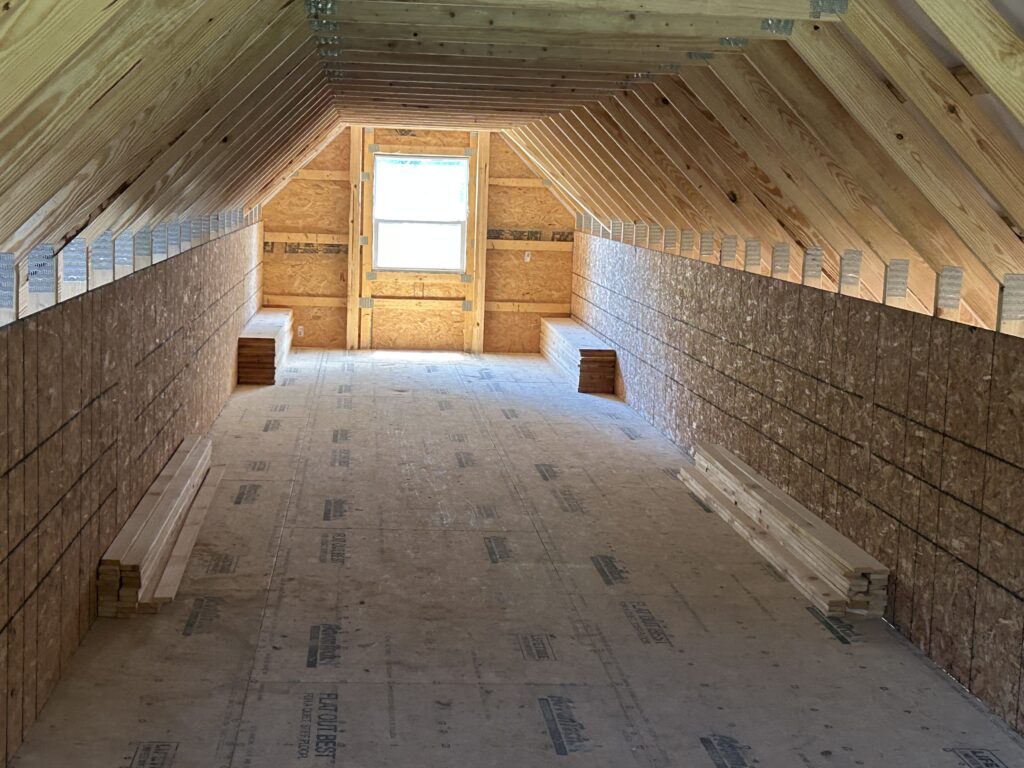

2′ o/c attic trusses with floor
42″ stairway with landing to attic space
12/12 roof pitch
3-Ply Glulam posts
Pine Board & Batten siding with OSB backer
Patriot Panel 28-gauge Ivy roof with lifetime warranty
Radiant roof barrier
12″ Soffit & Fascia Overhangs on all Sides
Four 10′ x 8′ insulated garage doors
(1) 9-Lite entry door

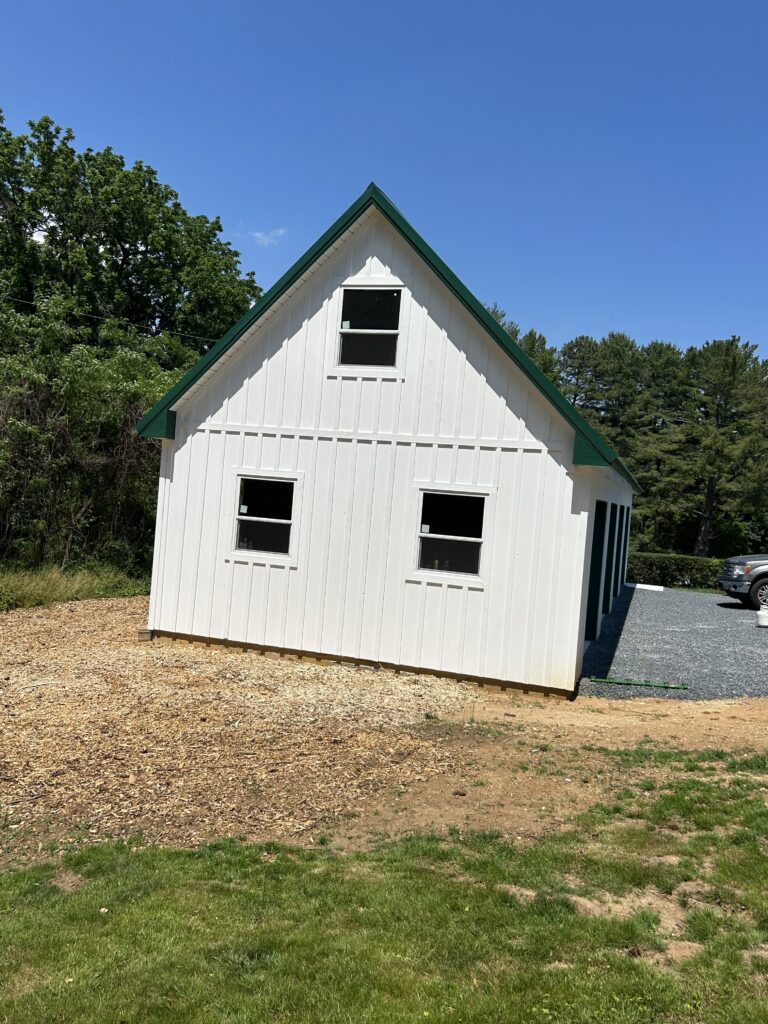

(4) 36″ x 44″ Windows
,
