Birdsboro, PA
Click on the above image to view it in its full size.

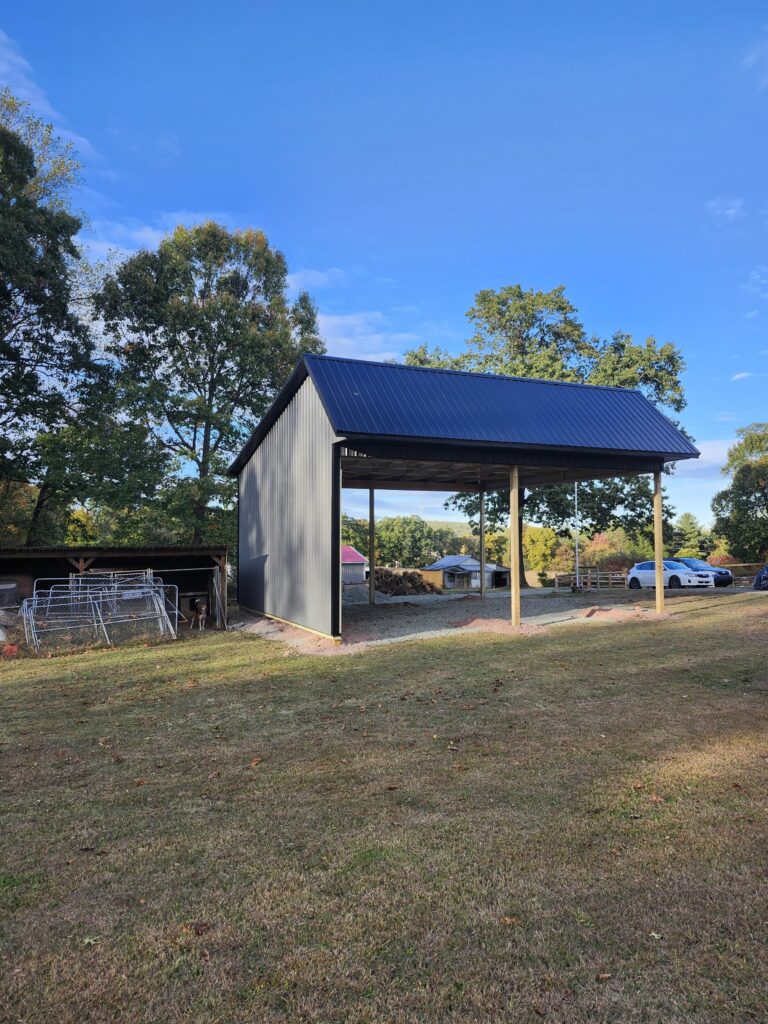

Open Sided 30′ x 32′ Equipment Storage
This 30′ x 32′ structure was designed with one purpose in mind: functional storage. But it still makes a visual statement thanks to its carriage-style trusses, which give the roof a dual-slope appearance from both sides. This style is very popular for structures like this and for run-in sheds for horses.
.
With two open eaves and one open gable, the layout allows for smooth entry and exit from both sides — ideal for storing equipment, trailers, or seasonal gear. It may look simple, but it’s exactly what this customer needed that will get the job done day in and day out.
.
Building Specs
30′ width x 32′ length x 14′ interior height
4′ o/c carriage trusses with 3′ overhang on one side
Roof pitch: 12/12 front, 3/12 rear
4-ply 2×6 glulam load-bearing posts
Patriot Panel 28 Gauge Roofing & Siding – Lifetime Warranty
12″ boxed vented overhangs on one eave and both gables (Black soffit & fascia)
.
Need something simple that works? Call (800) 331-1875 or request a quote online to get started.
.
Project # 022FELG25
