Living & Garage Combination Post Frame Building
\f
This custom combination building is another great example of the versatility and flexibility of Post Frame Construction. Combining Living quarters and garage space under one connected roof system is a practical and efficient way to maximize building use. Whether it’s a shop-house layout, living and garage combination, or office and warehouse setup, these “combination buildings” have become one of the fastest-growing segments of our business over the past couple years,
l

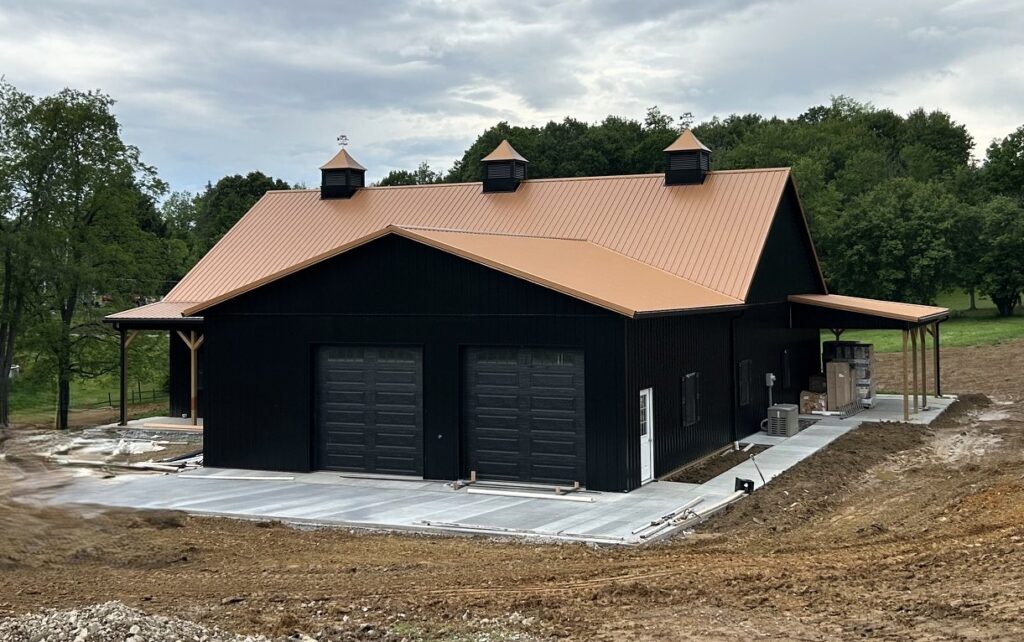

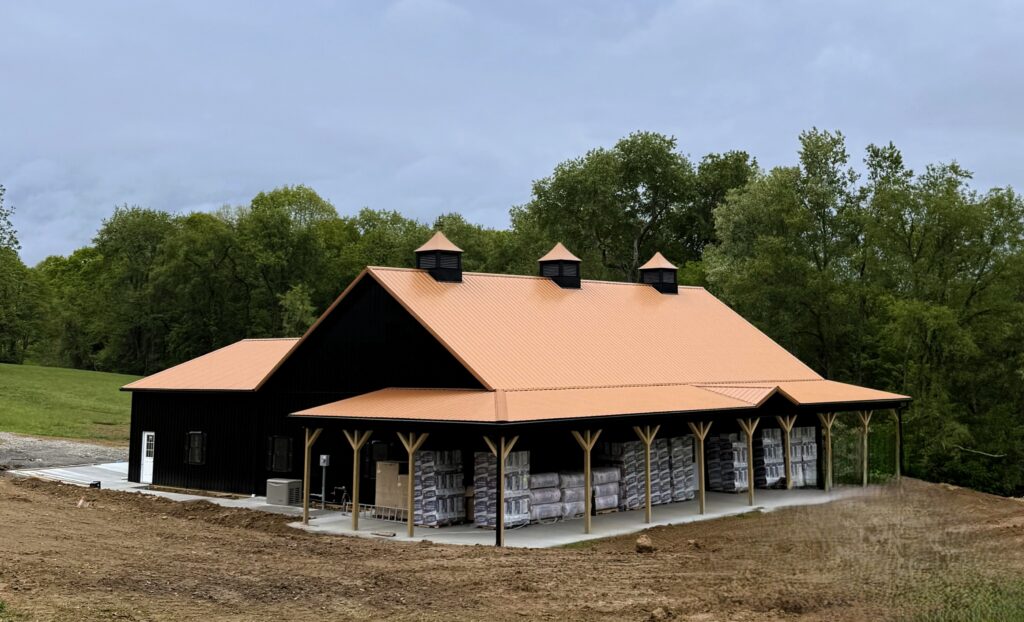

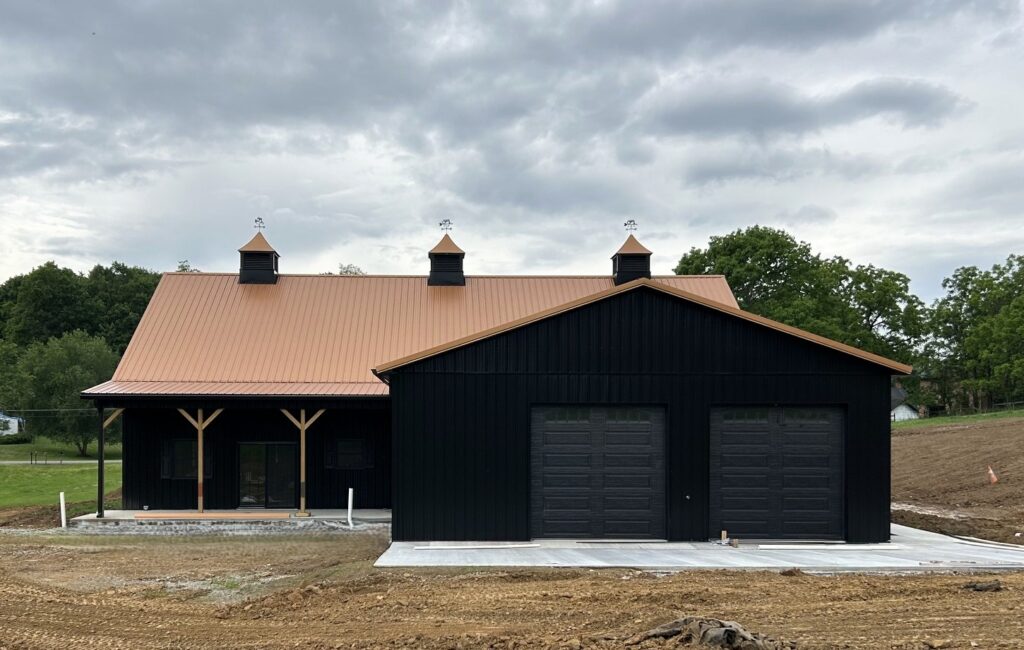

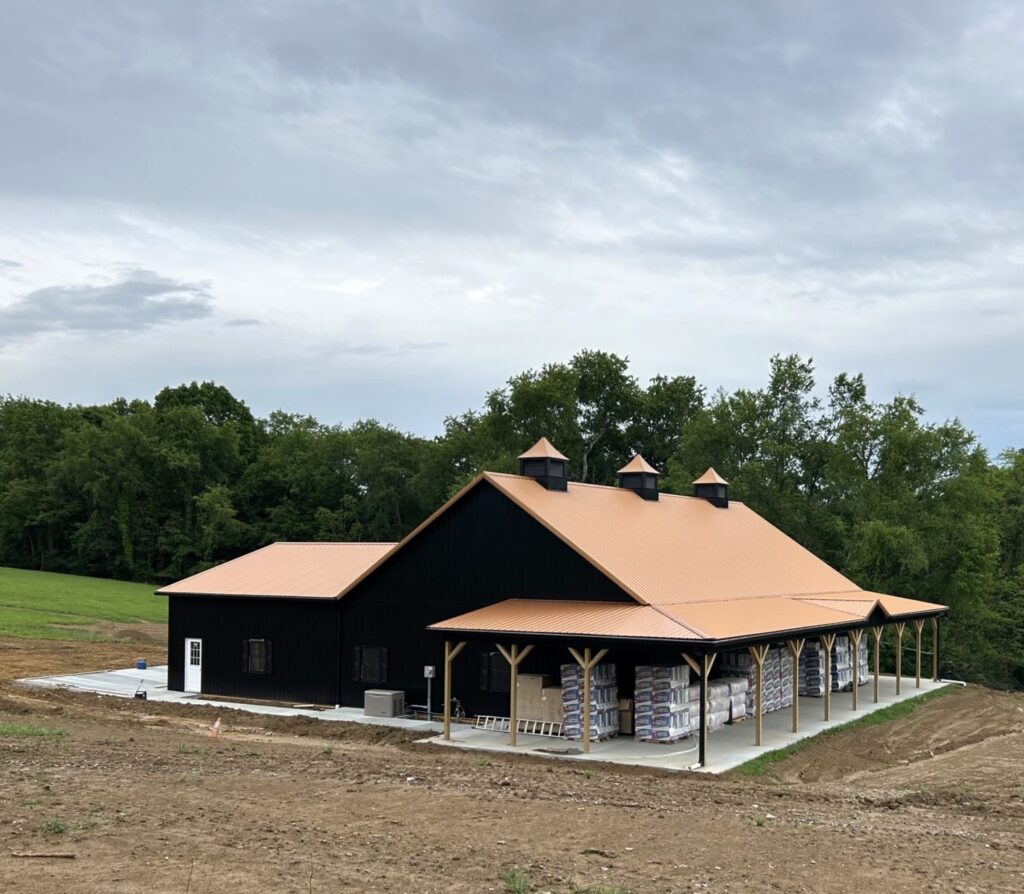

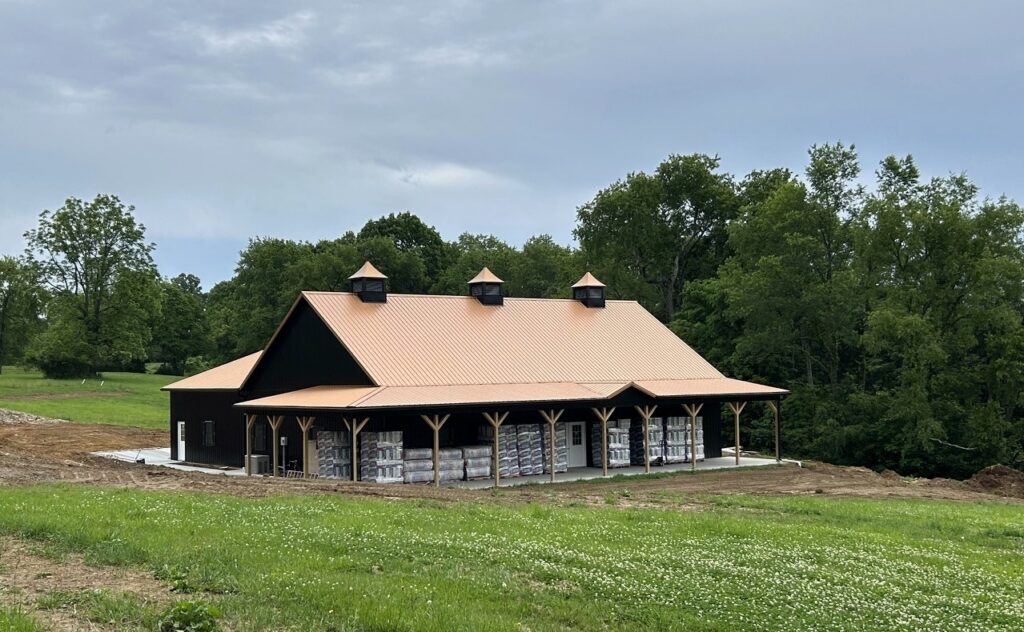

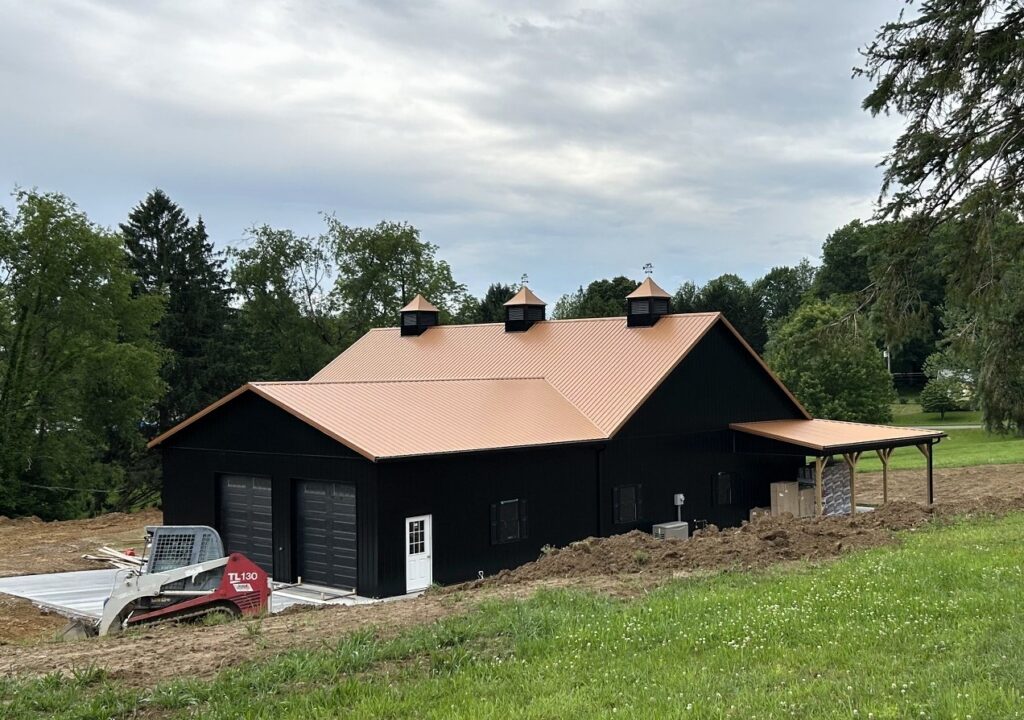

The living quarter section is 40′ x 60′ x 12′ and features an 8/12 pitched roof with attic trusses for upstairs space. Combined with the full wrap around porch and you have a building that looks sharp from outside and provides functionality inside. Attached to the rear eave is a 36′ x 30′ garage to provide easy access between living & storage areas. The garage features a 4/12 roof pitch, (2) 10×10 black garage doors, an entry door, and additional windows.
.
Building Specs:
40′ x 64′ x 12′ Main Living Quarters & 36′ x 30′ x 12′ Attached Garage Addition
2′ o/c Attic Trusses with Upstairs Floor System
8/12 Main Roof Pitch with 4/12 Garage Roof Pitch
Patriot Panel 28 Gauge Painted Steel Roofing Siding (Black)
Radiant Roof Barrier & House Wrap on Sides
12″ Boxed Ventilated Overhangs
(3) 4′ Cupolas with Copper Roofs & Black Weathervanes
12′ Deep Wrap Around Porch
Y-Bracing on Exposed Porch Posts
8′ Reverse Gable Porch at Main Entry
6′ Fiberglass Double Front Entry Door
Black Sliding Patio Door
Black Exterior Windows with Shutters
(2) 10′ x 10′ Insulated Overhead Garage Doors
.
Whether you’re planning a custom barndominium, shop-house, commercial space for your business, or completely unique post frame project, our team is here to help bring your vision to life. Call (855) 342-0979 or fill out our Online Building Form to get started today.
,
