Jefferson, MD
Click on the above image to view it in its full size.
Horse Barn with Character
k

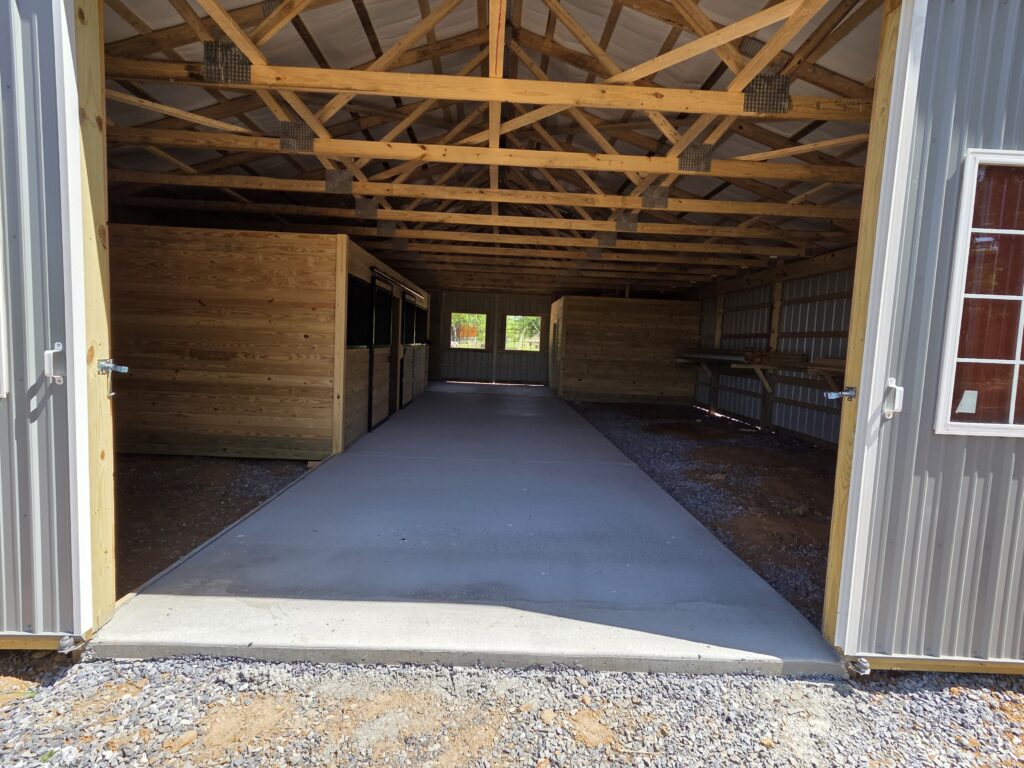

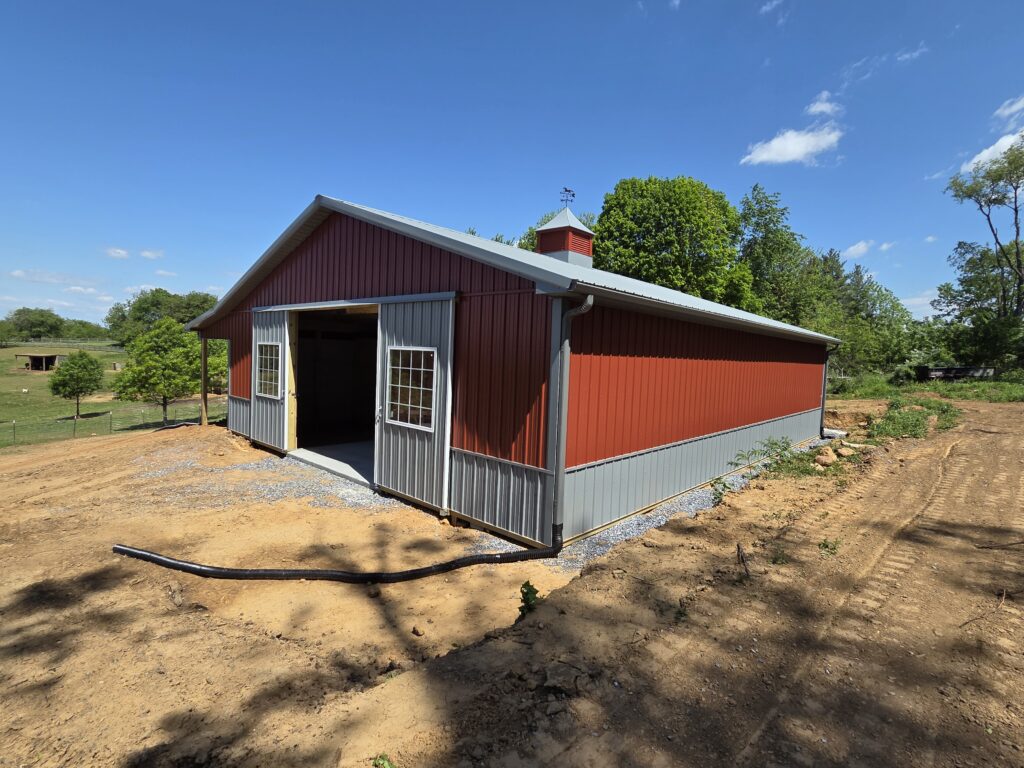

The 36′ x 48′ layout features two 12′ x 12′ horse stalls, a dedicated wash stall, and 12×12 slider doors with tempered windows on both gable ends, giving the customer an great setup for everyday use now and plenty of flexibility for the future.
h

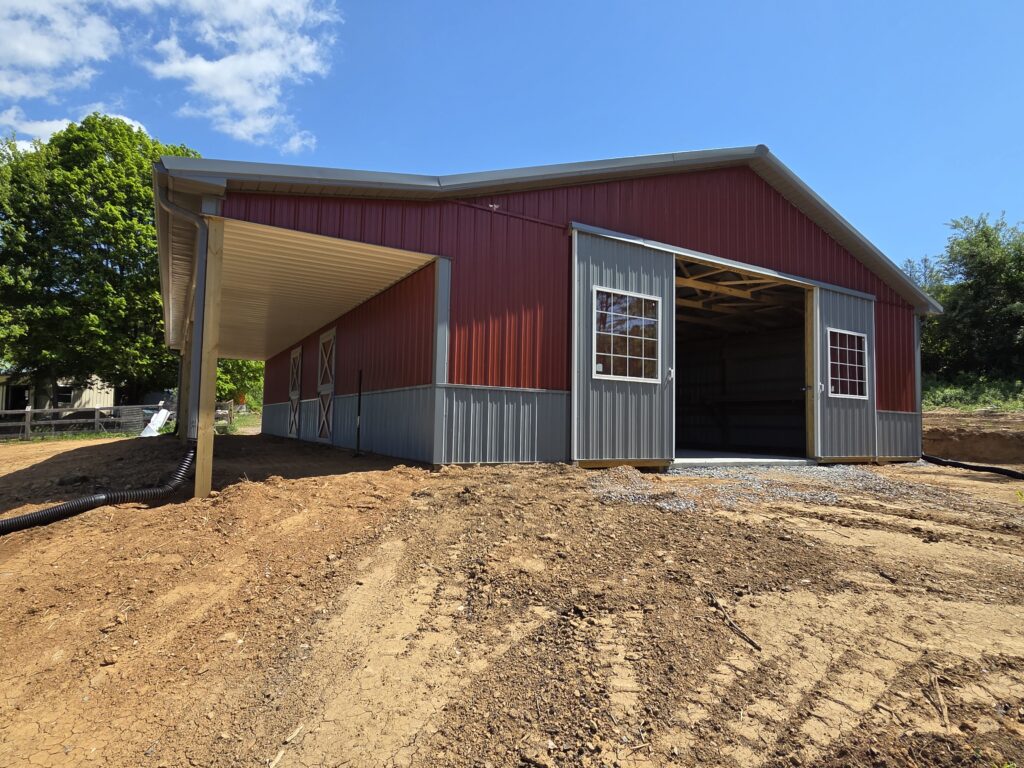

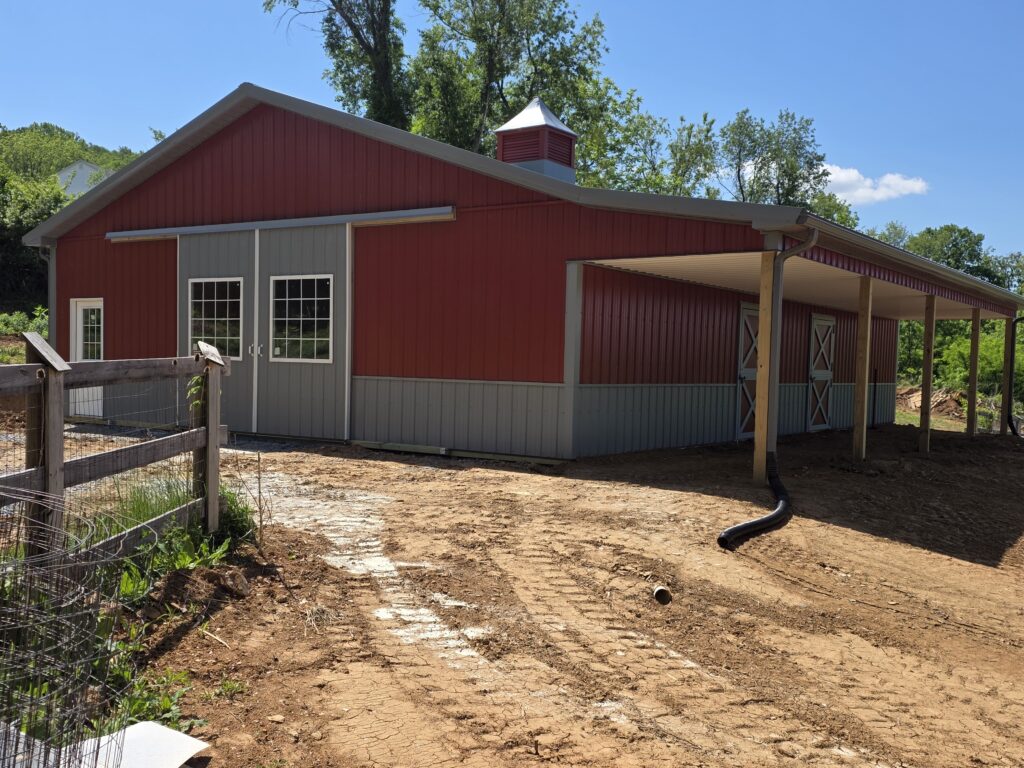

A full-length 8′ lean-to provides additional covered space for equipment and protection from the elements. Dutch doors beneath the lean-to provides direct access to the stalls. Inside, the wood stall fronts and T&G siding give the barn a classic equestrian with plenty of character.
b
Building Specs
36′ width x 48′ length x 10′ inside height
8′ x 48′ open eave lean-to with 2/12 pitch
Roof System: 4′ o/c trusses with 4/12 pitch
Walls: 8′ o/c 3-Ply 2×6 Glulam Load-Bearing Posts
28 Gauge Patriot Panel Roofing & Siding Lifetime Warranty
3′ Slate Wainscoting
Radiant Insulation Barrier installed beneath roof steel
4″ concrete floor
(2) 12′ x 10′ split sliding doors with (2) 4′ x 4′ tempered windows with grids
(1) 3′ x 6’8″ fiberglass 9-lite entry door
(1) 4′ vented cupola with black weathervane
5K gutters with (4) downspouts
c
Horse Stall Package

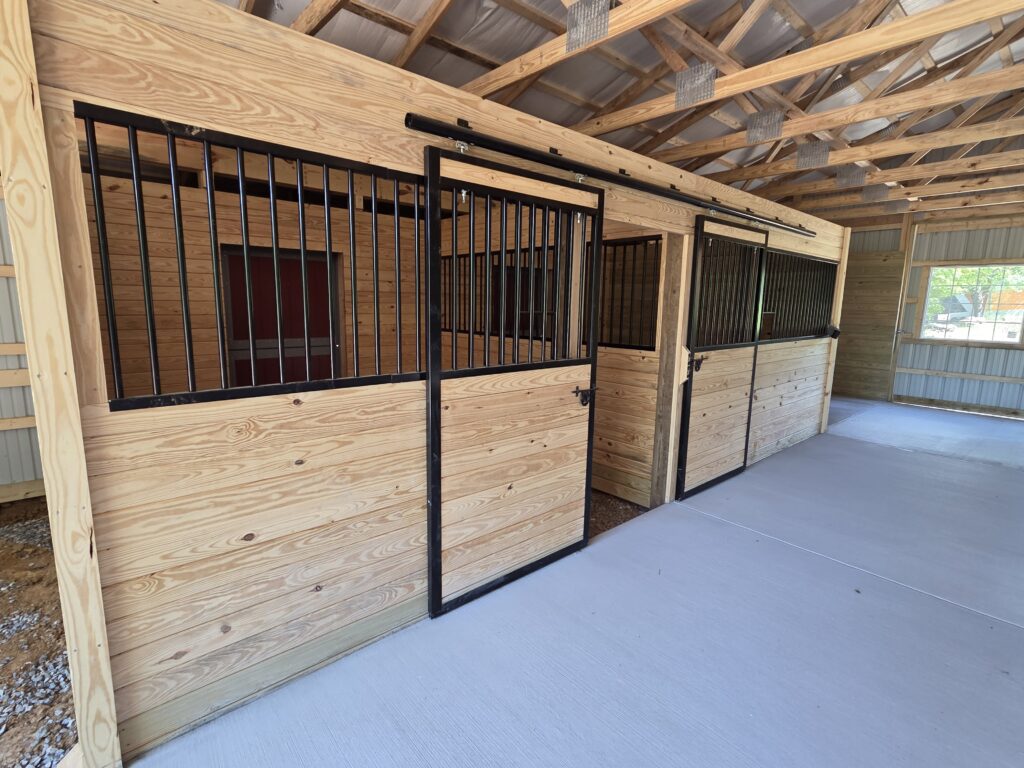

(2) 12′ x 12′ horse stalls with 8′ walls and feed holes
(2) X-Buck over X-Buck 4′ x 7′ clad Dutch doors
(1) 12′ x 12′ wash stall with 8′ walls

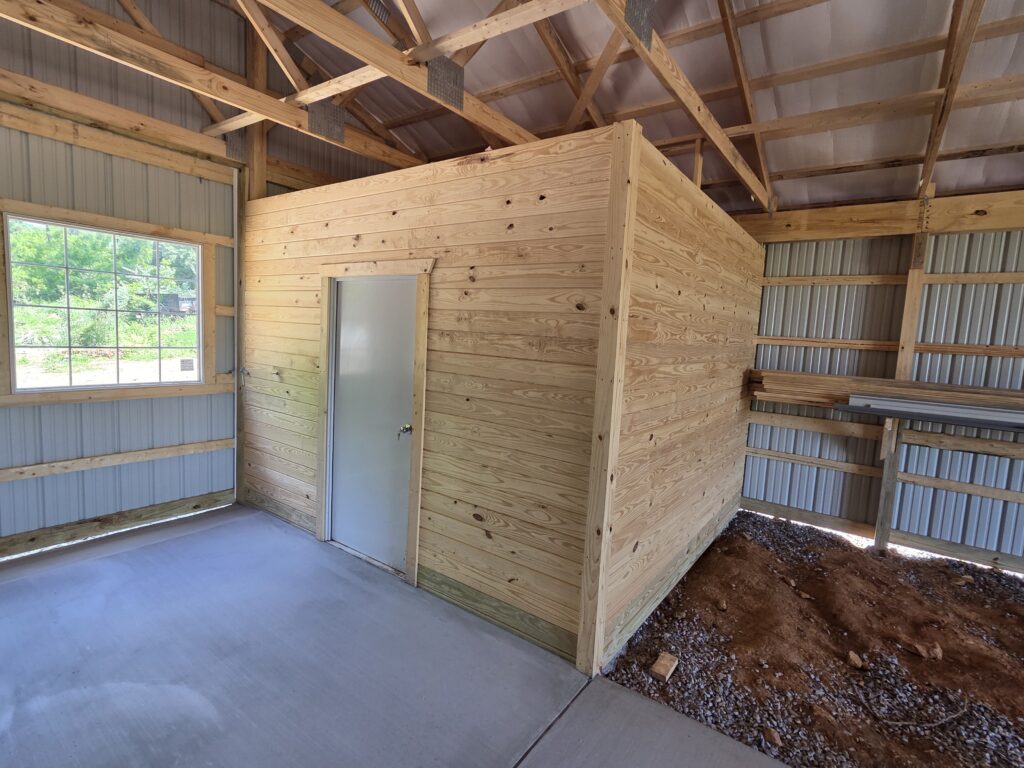

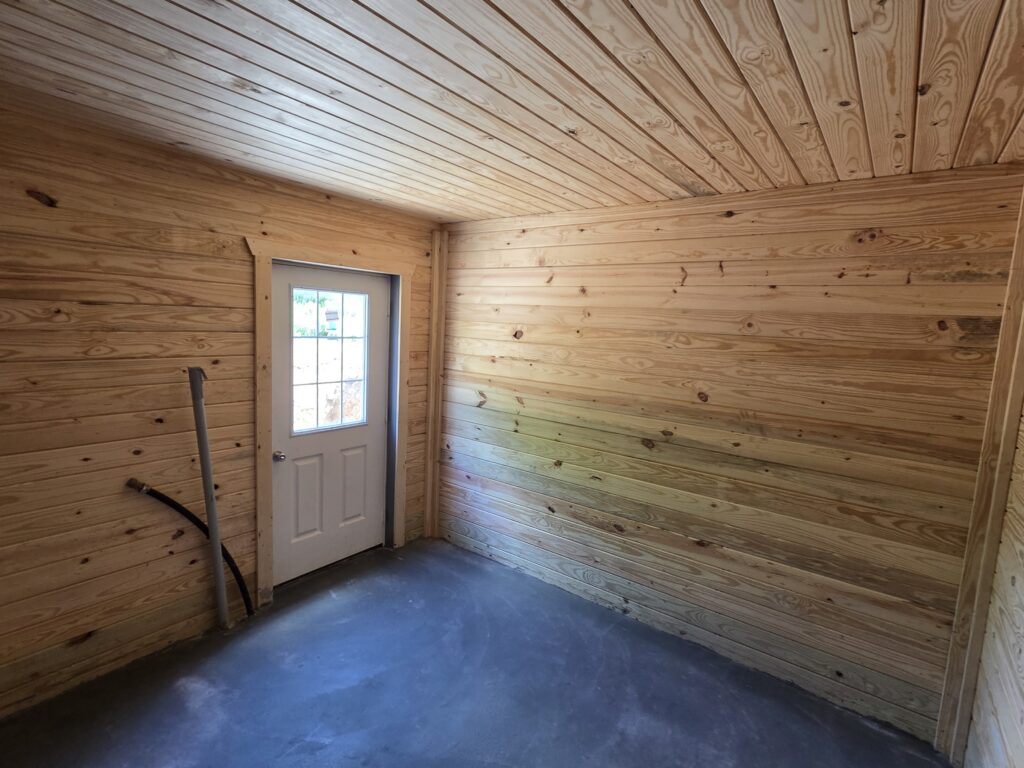

(1) 12′ x 12′ insulated tack room with insulated walls and ceiling
