Jefferson, MD
Click on the above image to view it in its full size.
Room Inside and Out

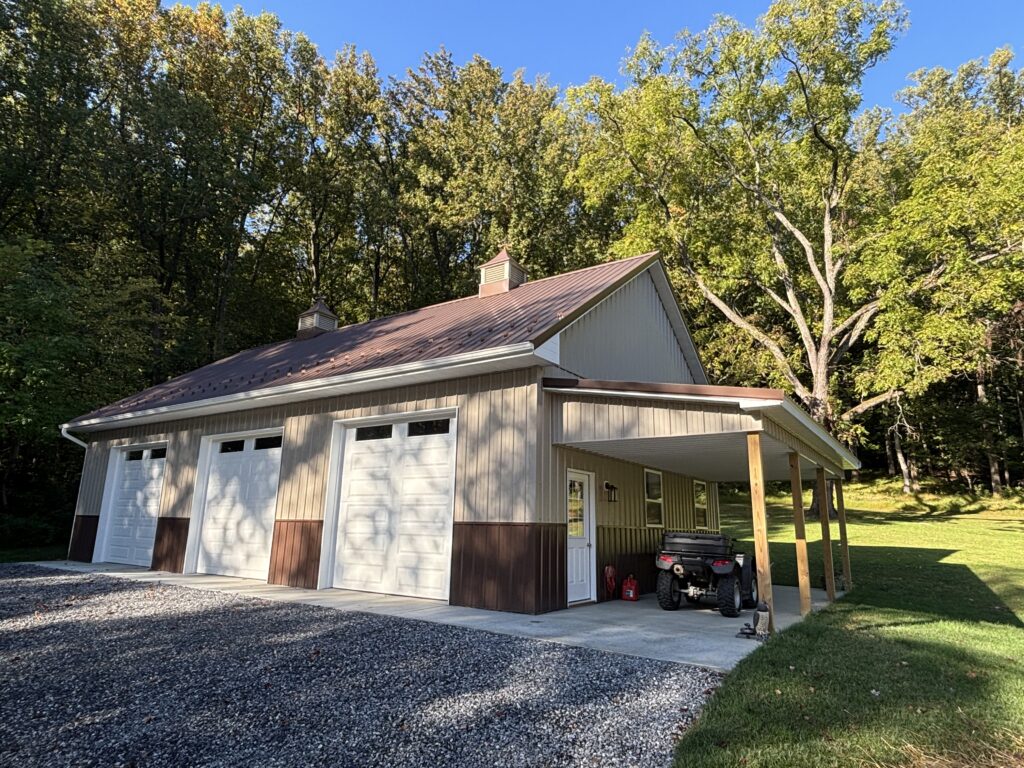

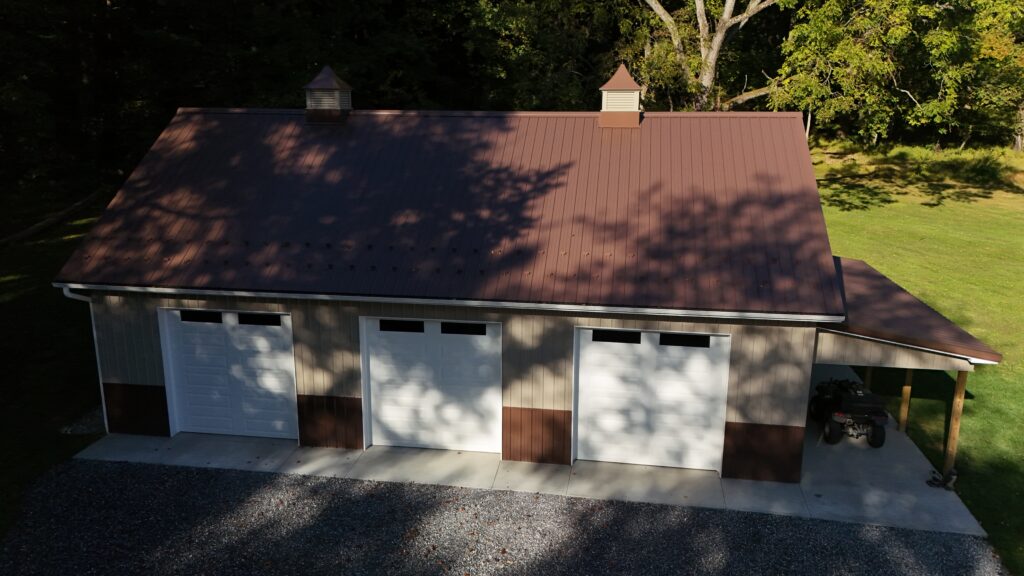

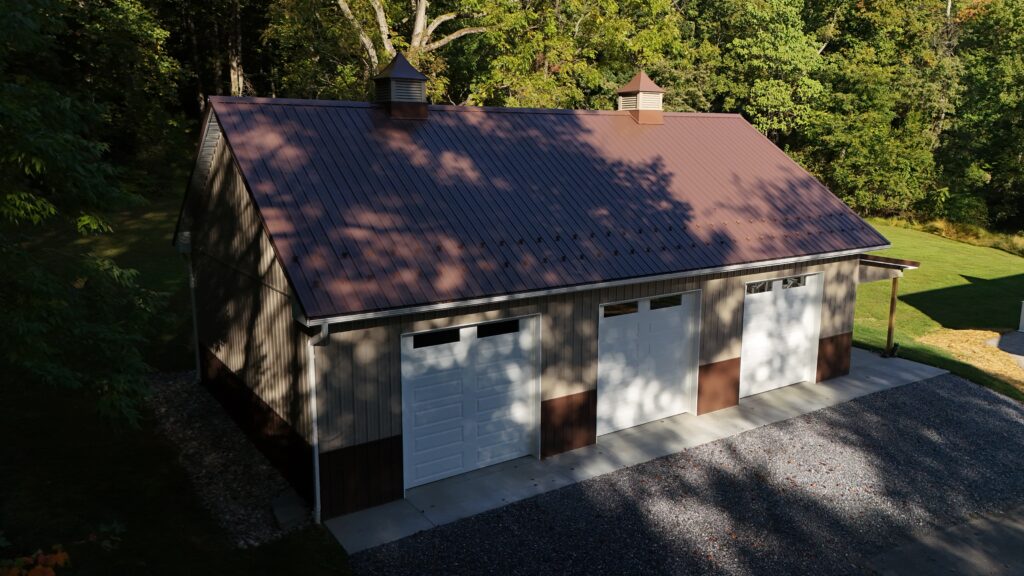

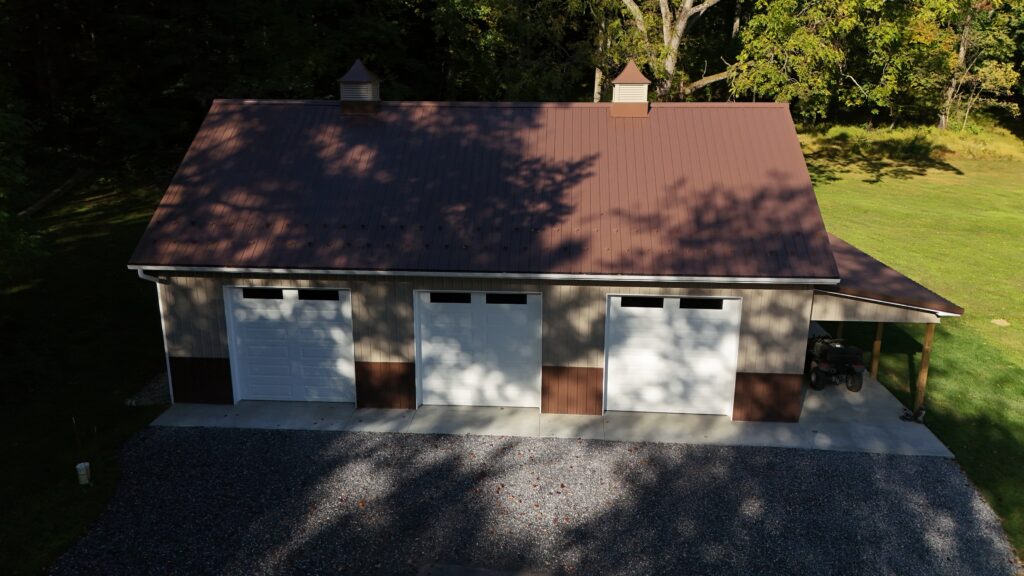

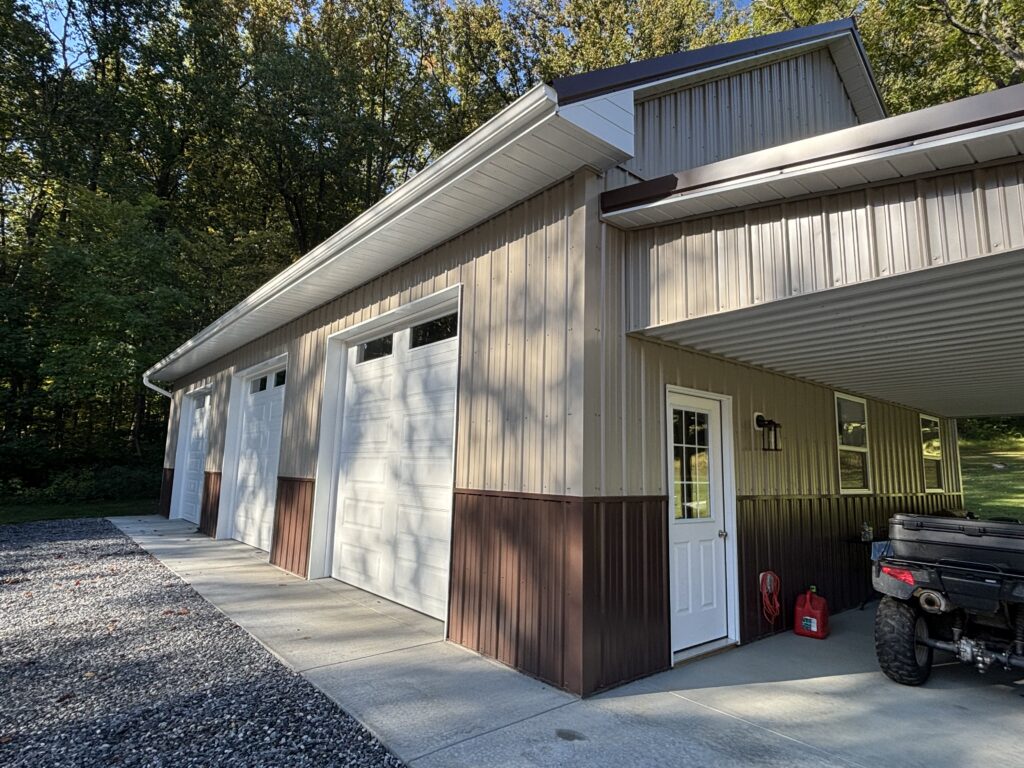

Designed for personal use, this Jefferson, MD project gives the customer plenty of room to store cars, four-wheelers, and other recreational vehicles. The 30′ x 50′ building features three 10′ x 10′ insulated overhead doors, making it easy to move vehicles in and out while keeping everything protected indoors.

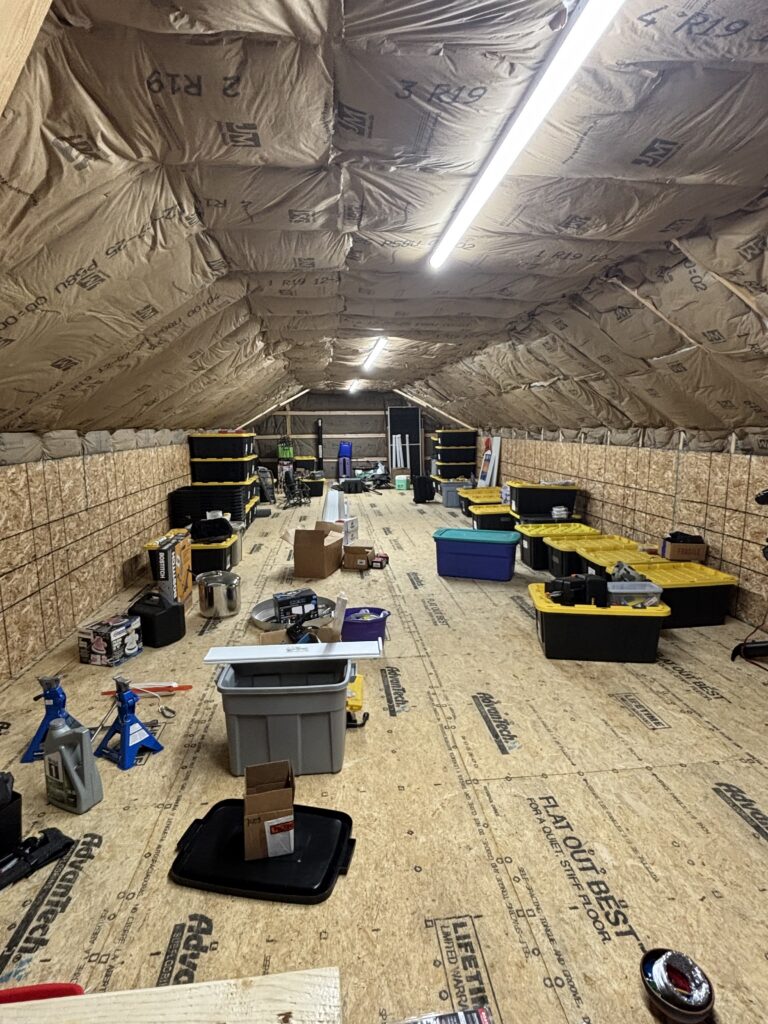

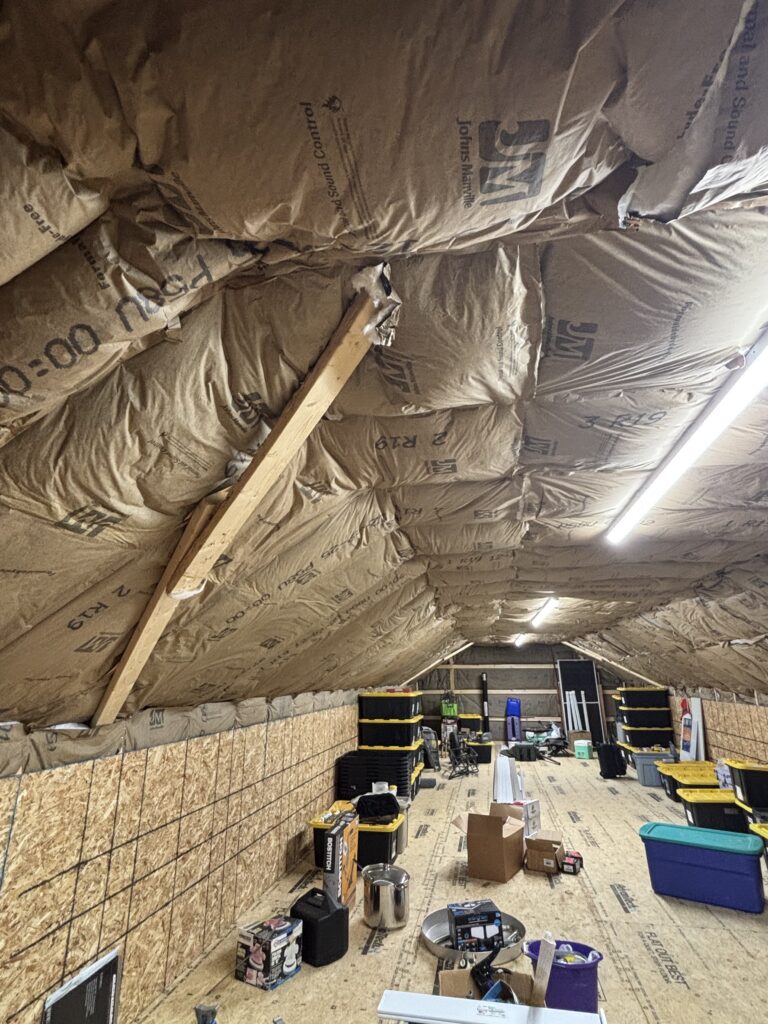

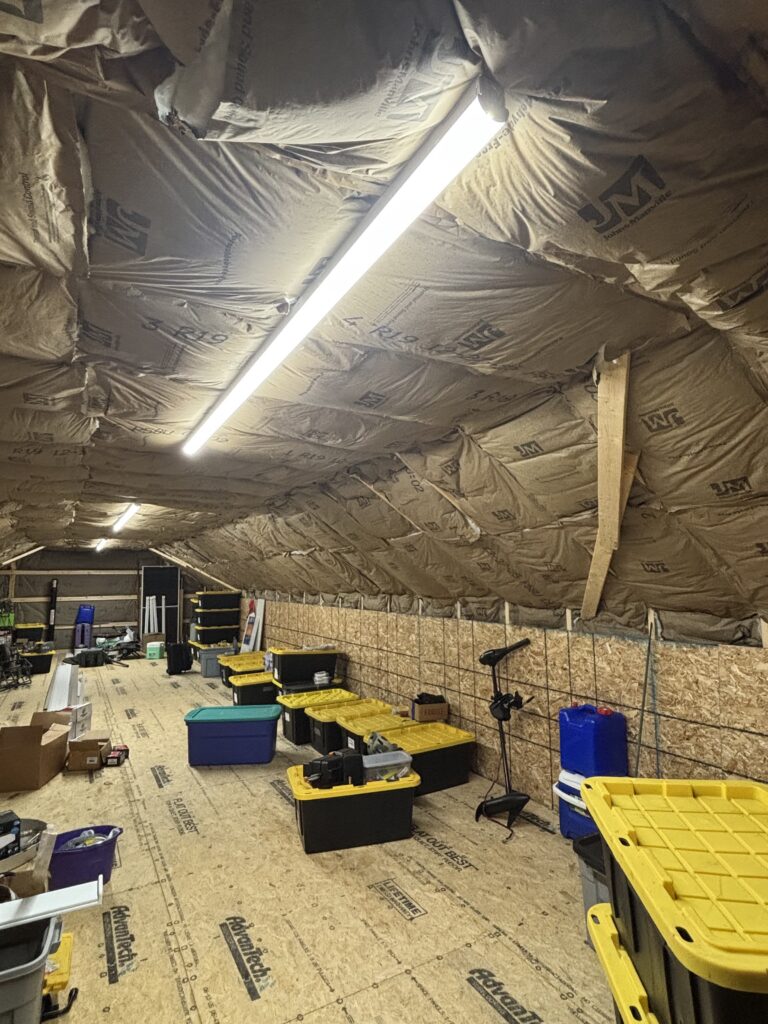

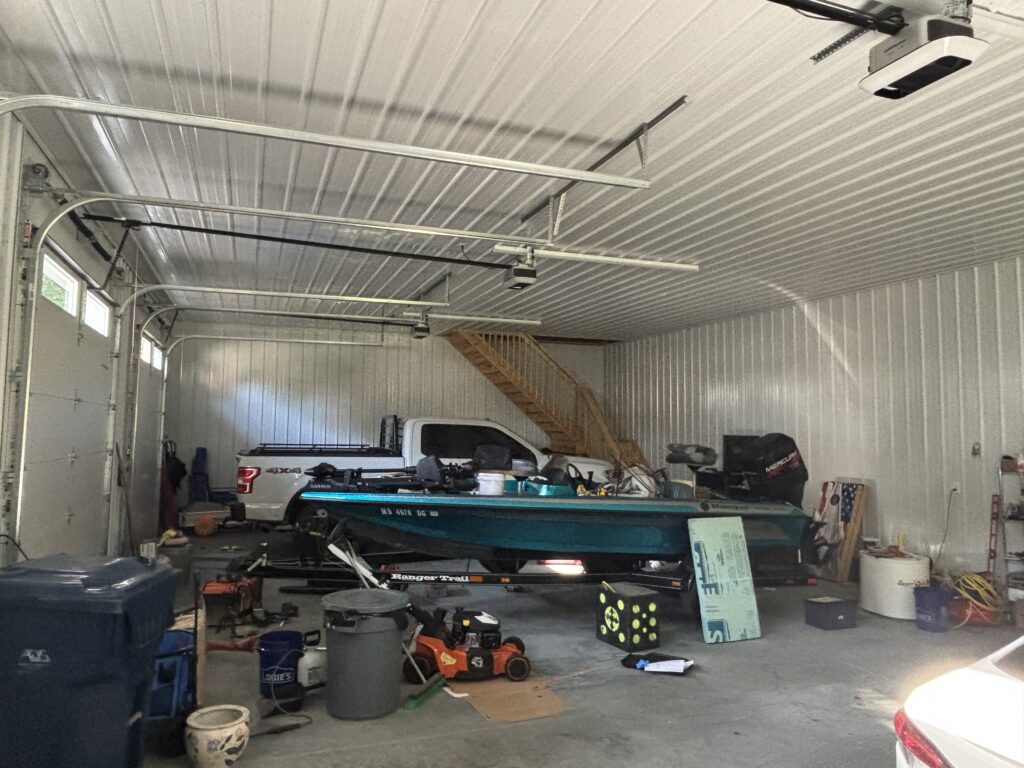

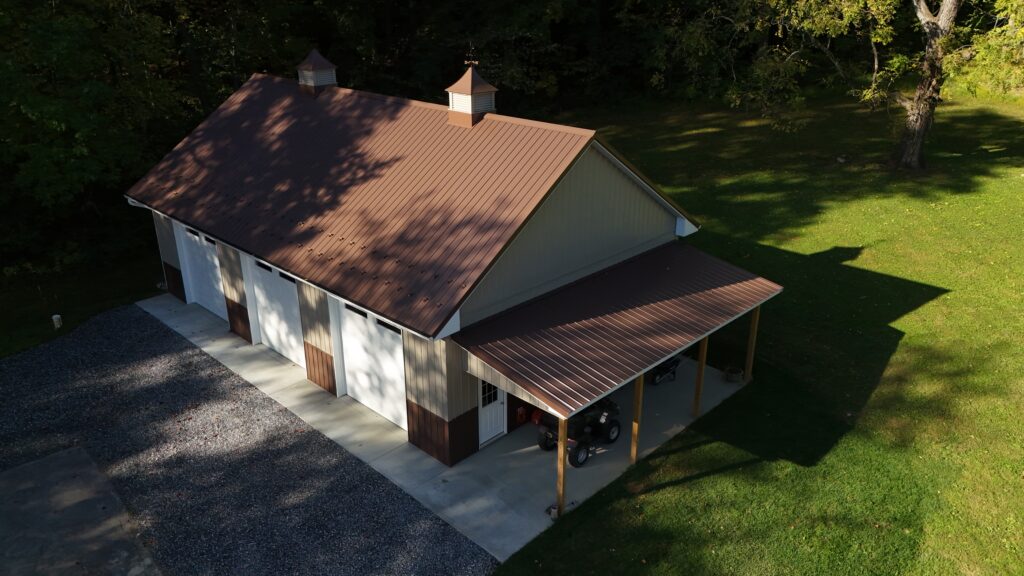

Inside, attic trusses with a floor create additional space and flexibility, while insulation and metal liner panels on the walls and ceiling give the building a more finished interior. Outside, the combination of clay siding, brown wainscoting and roofing, and white trim creates a clean, contrasting look. Two cupolas with a black weathervane add a little extra character, while the attached 10′ x 27′ open lean-to provides additional covered space. With its mix of storage capacity, interior functionality, and classic post-frame style, this building is ready to accommodate the customer’s vehicles and hobbies.
Building Specs
30′ W x 50′ L x 12′ inside height

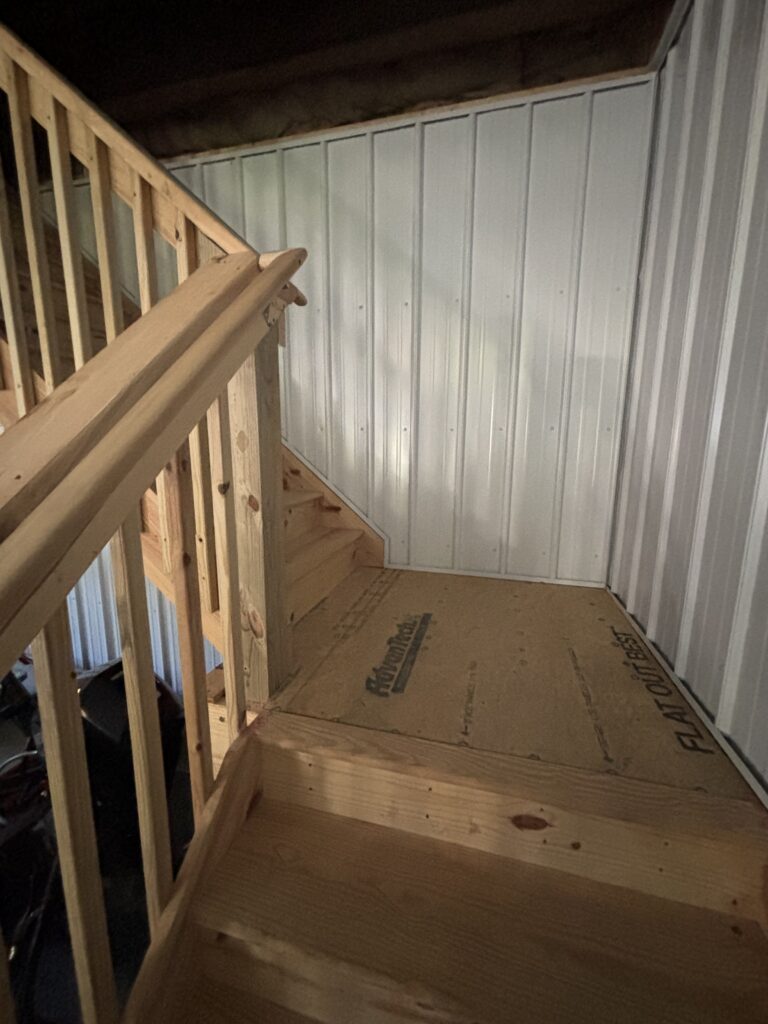

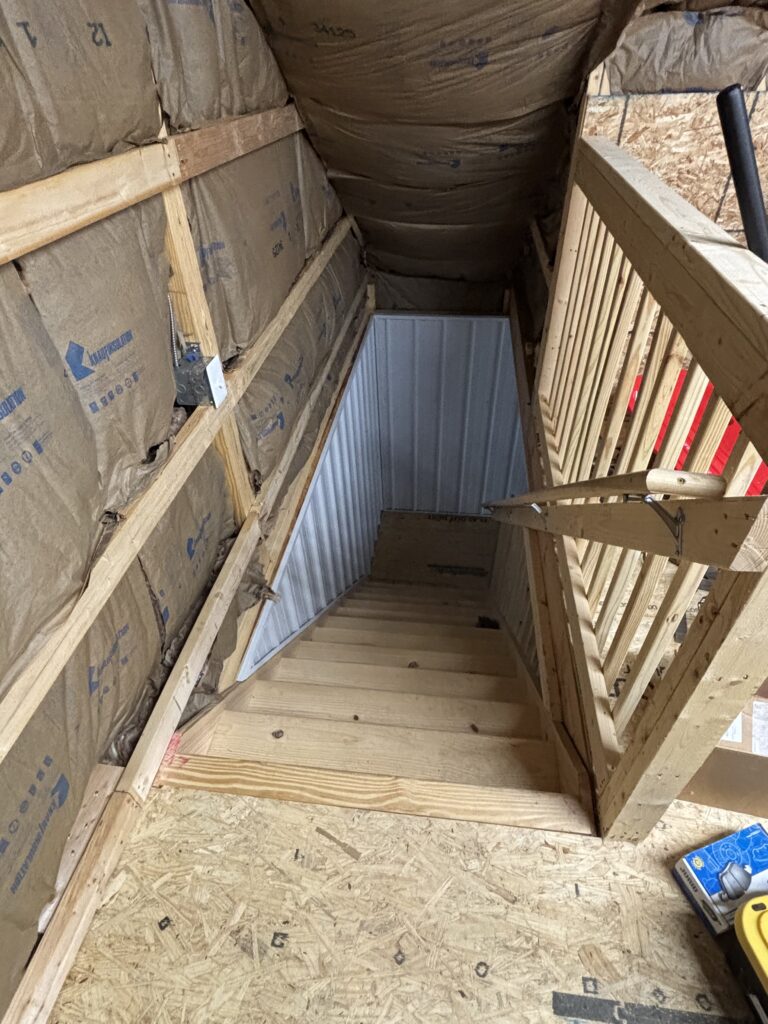

2′ o/c attic truss system with floor
8/12 roof pitch
3-ply 2×6 Glulam load-bearing posts
Patriot Panel 28-gauge painted steel roofing and siding — Lifetime Warranty

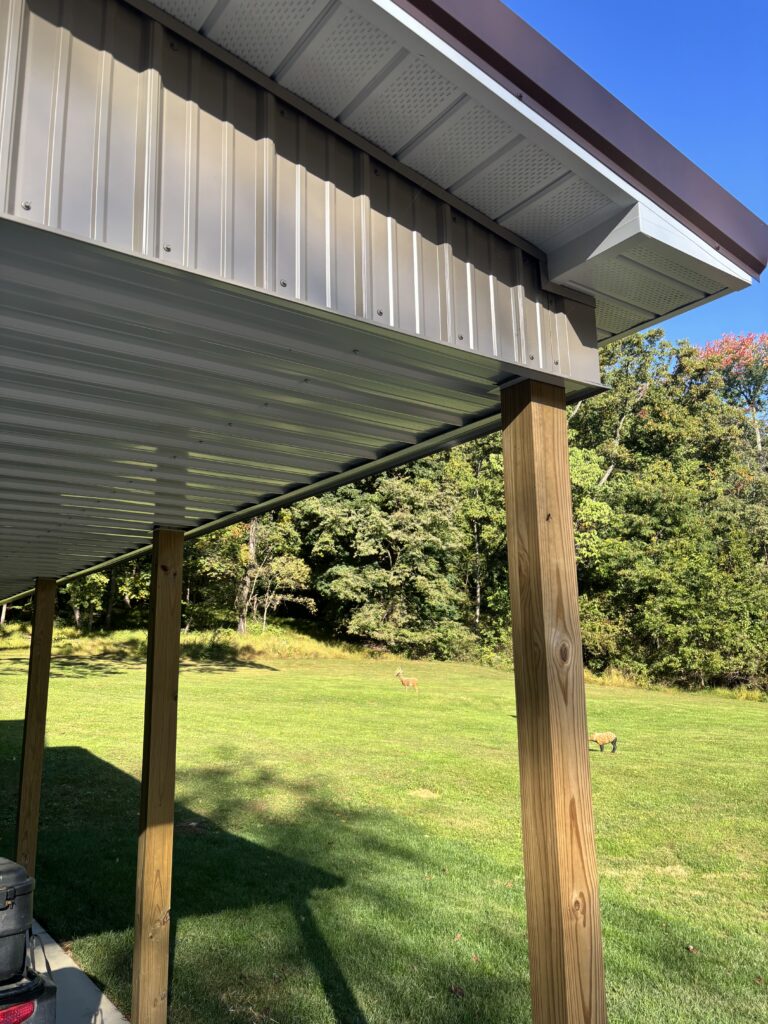

12″ boxed, vented gable overhangs and 24″ boxed, vented eave overhangs
(3) 10′ x 10′ insulated overhead doors with windows

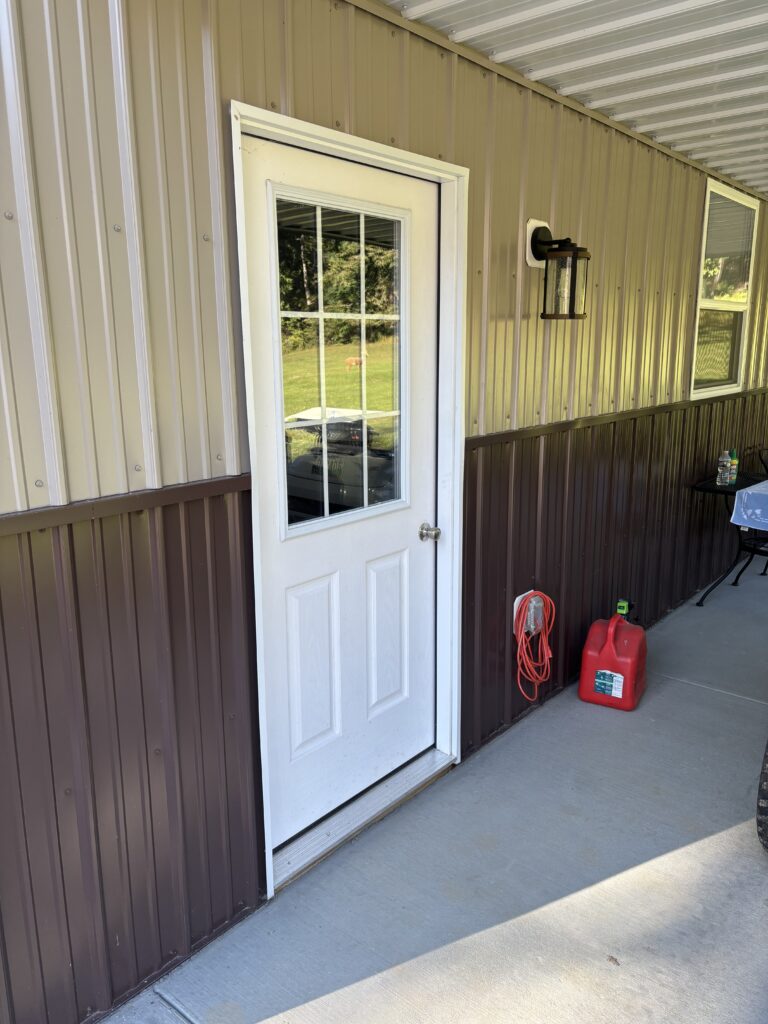

(1) 3′ x 6′8″ fiberglass 9-lite entry door
(2) 36″ x 44″ insulated single-hung windows
(2) 3′ cupolas with vents and a black weathervane

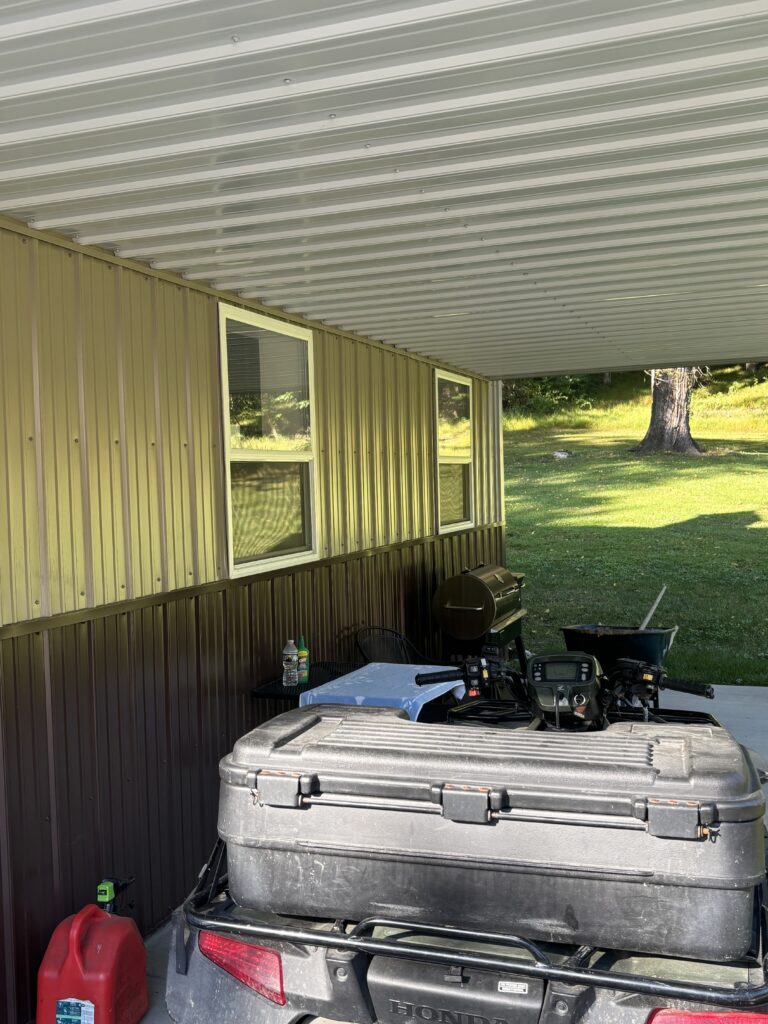

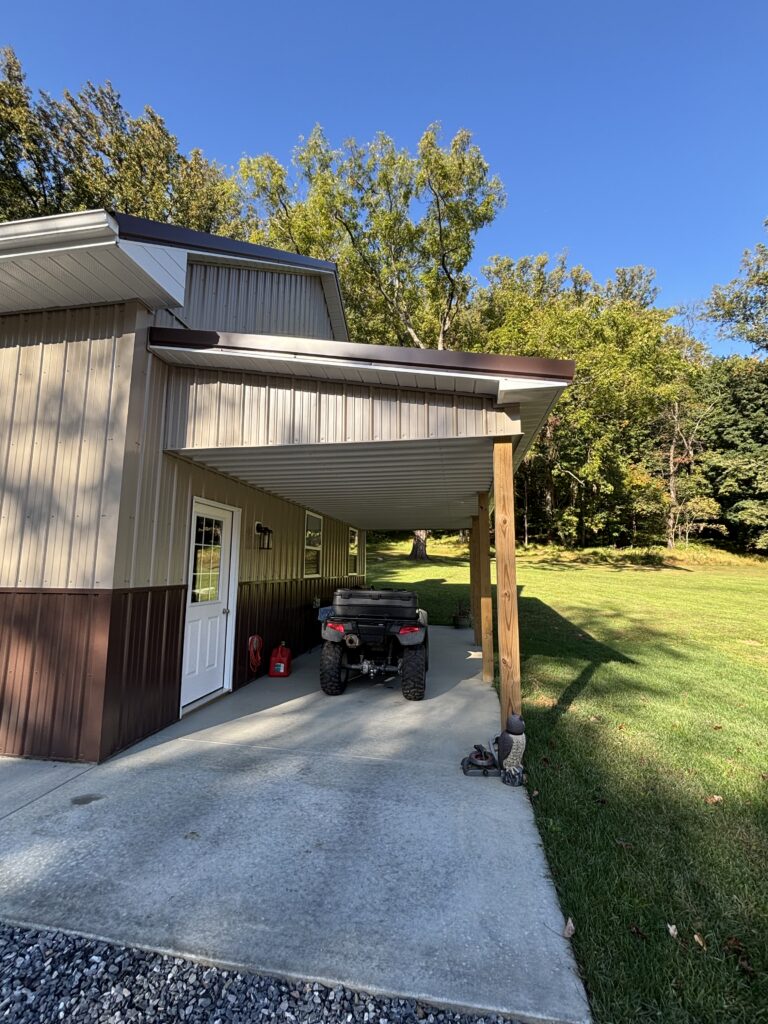

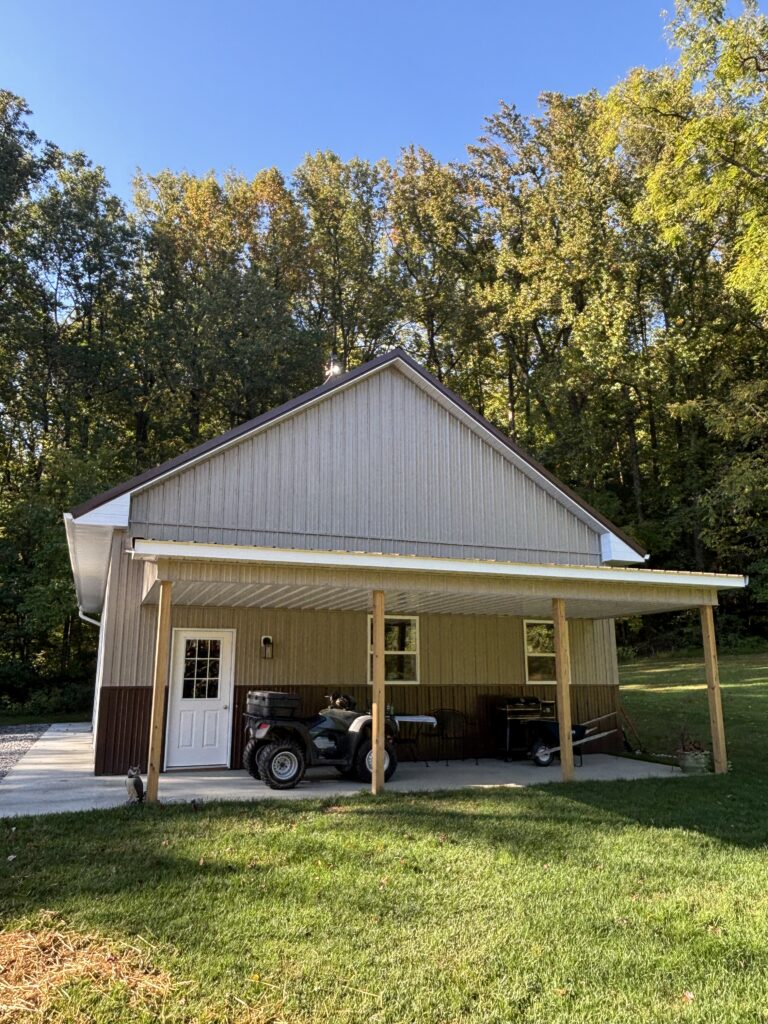

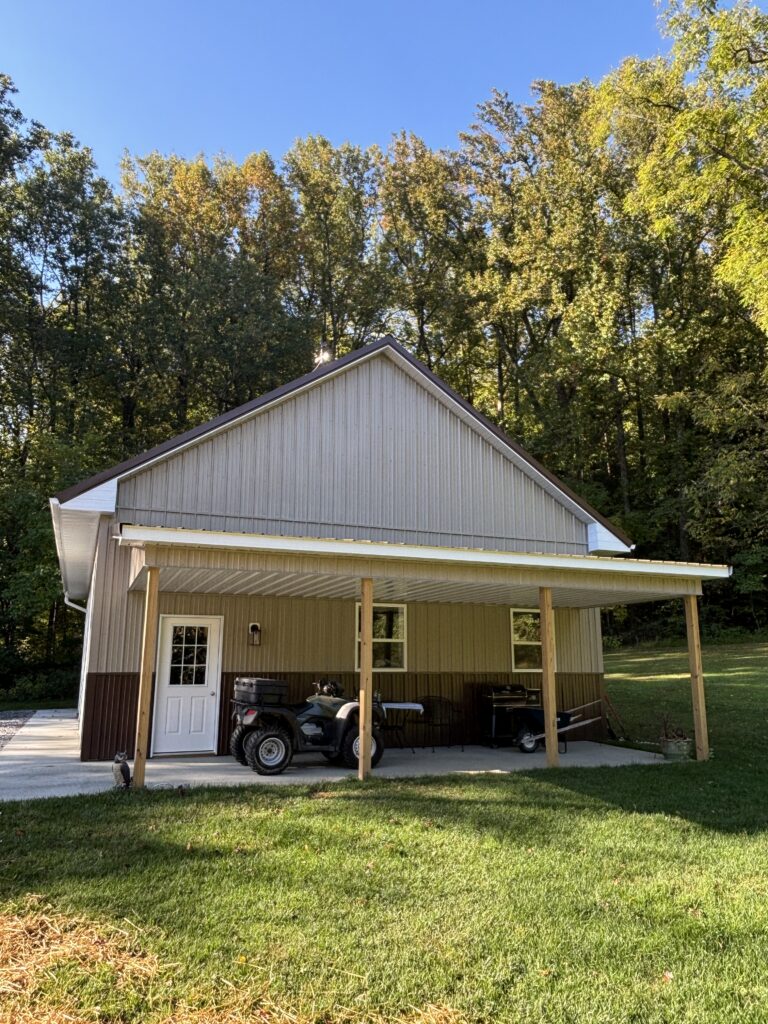

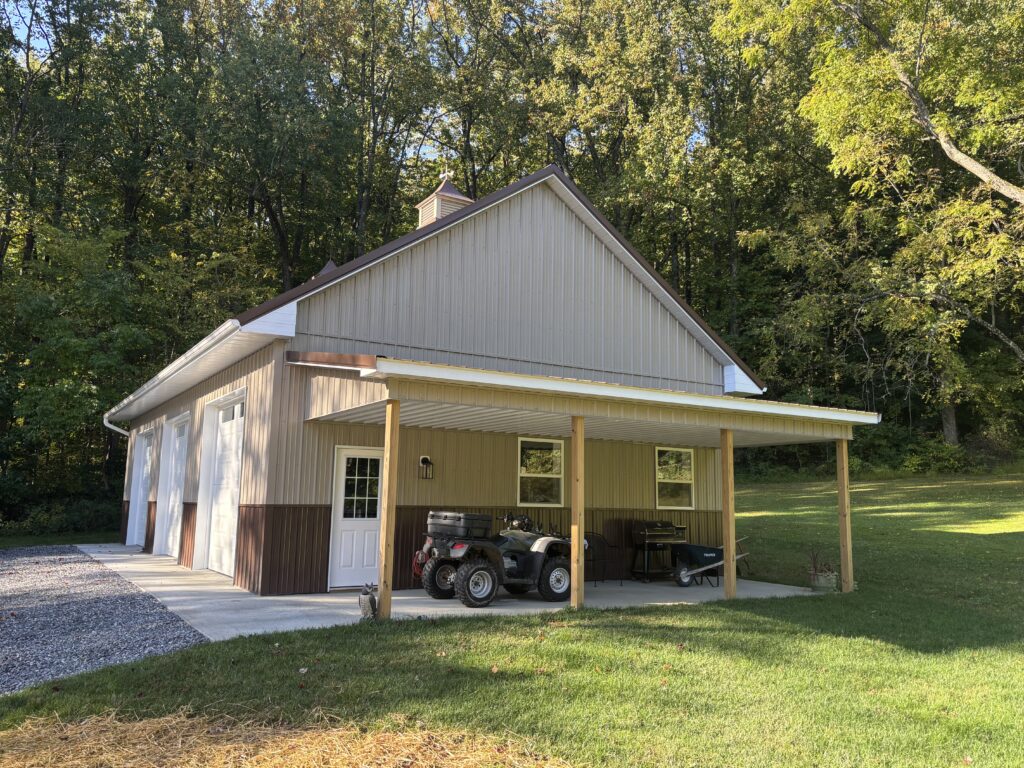

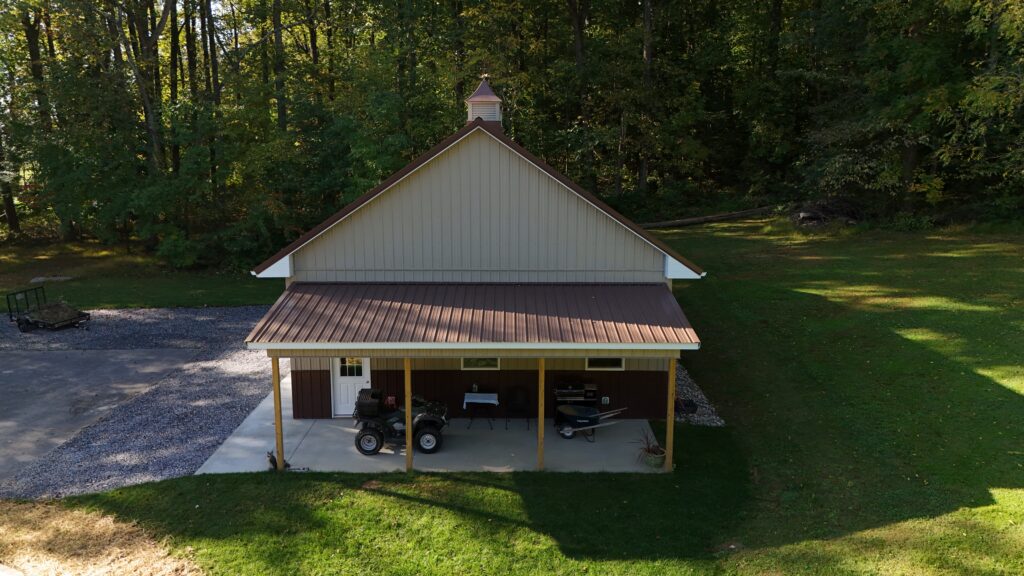

10′ x 27′ Open Lean-To
