Mohnton, PA
Click on the above image to view it in its full size.

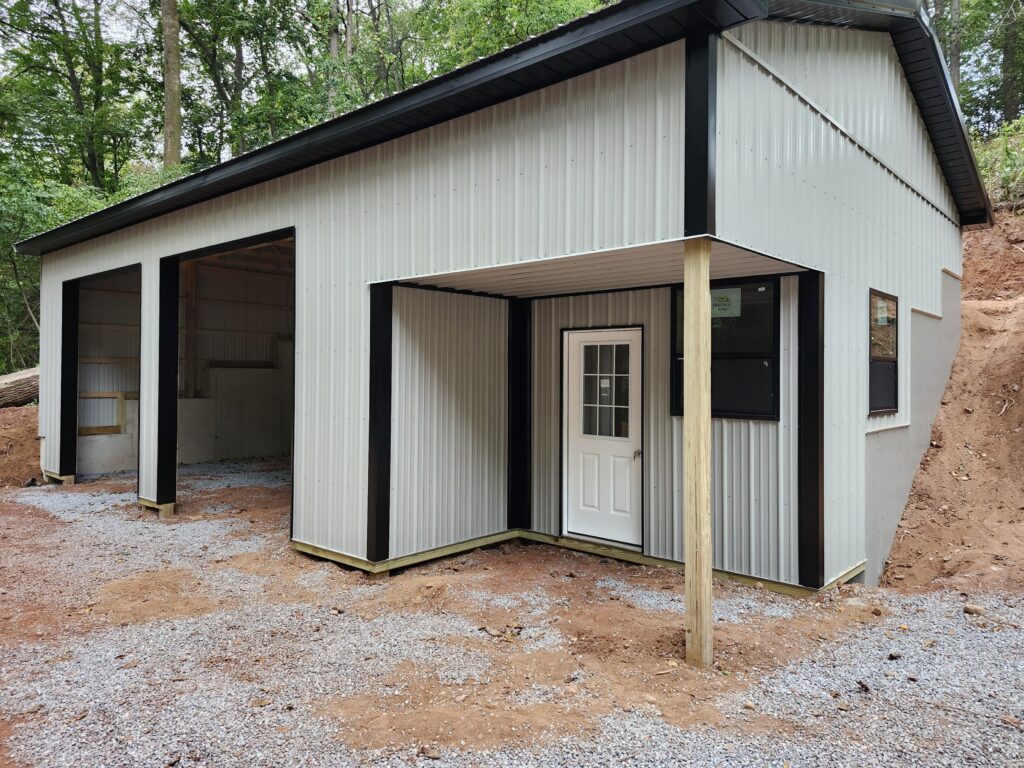

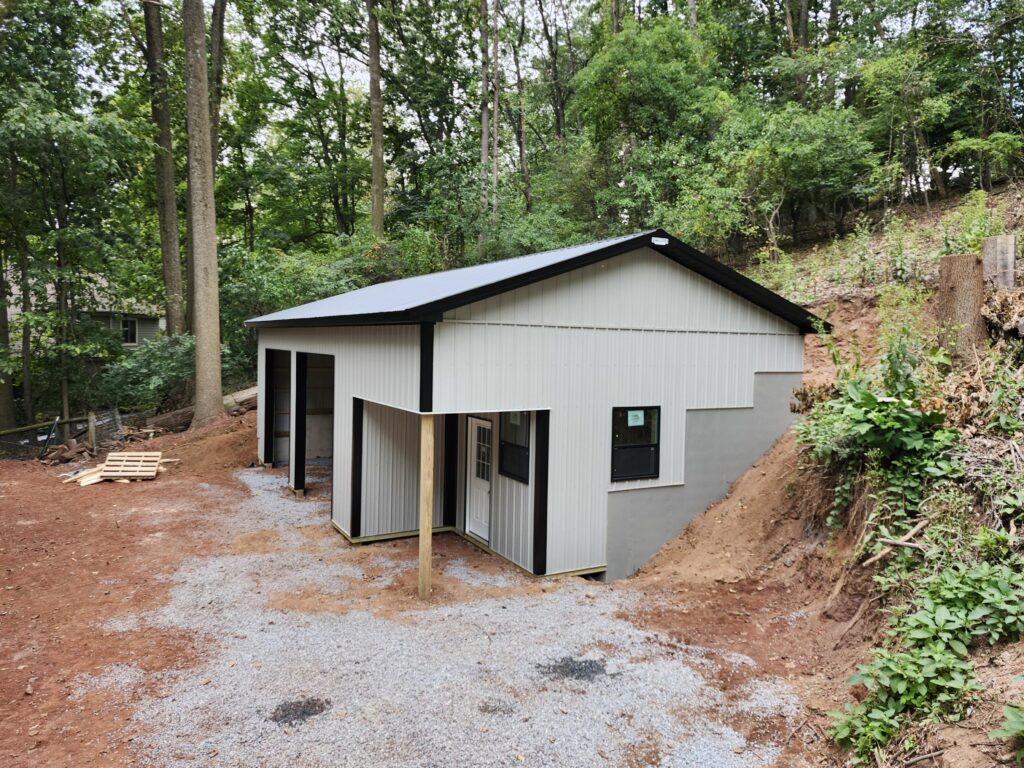

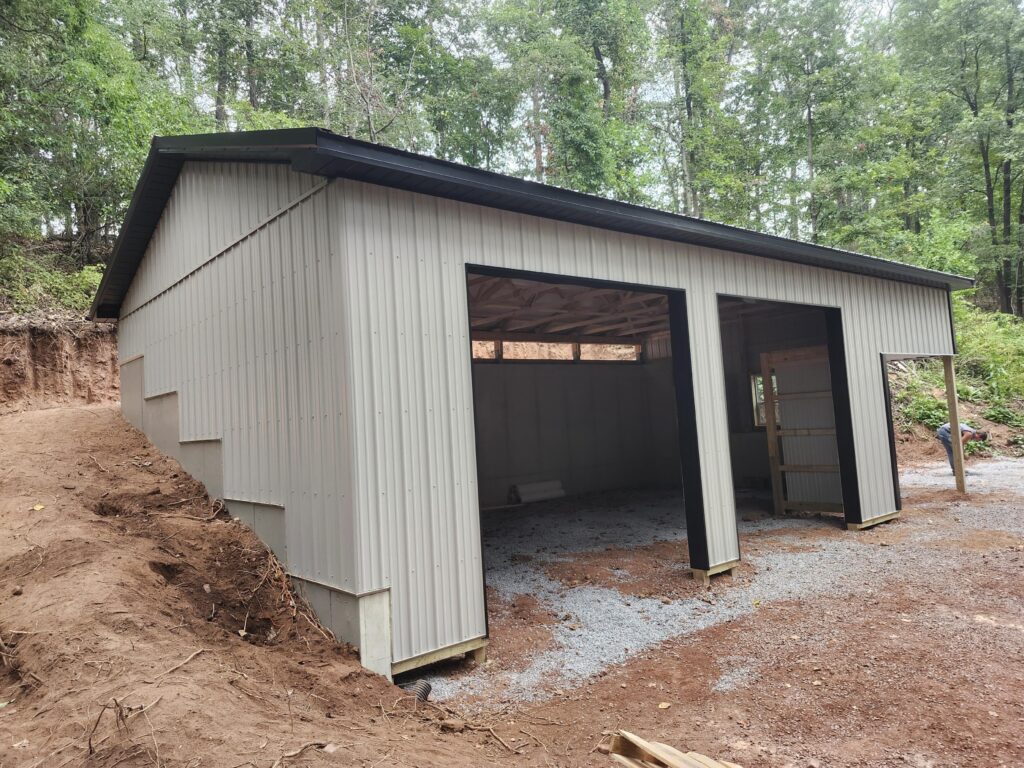

24′ x 40′ Garage with In-Set Porch

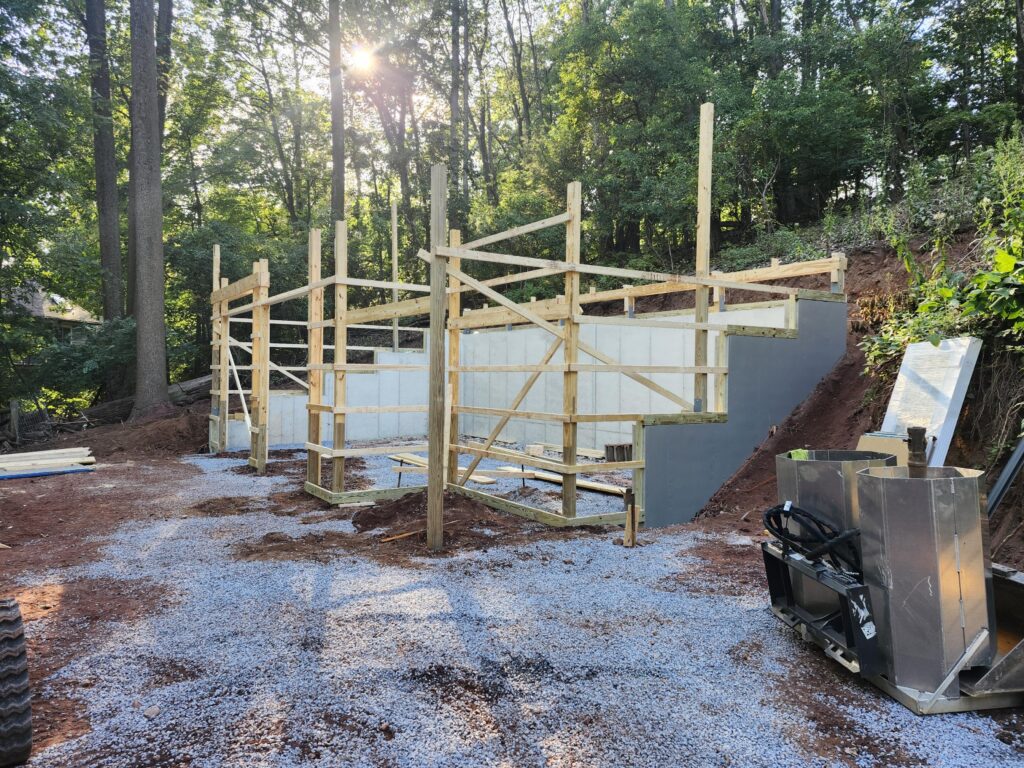

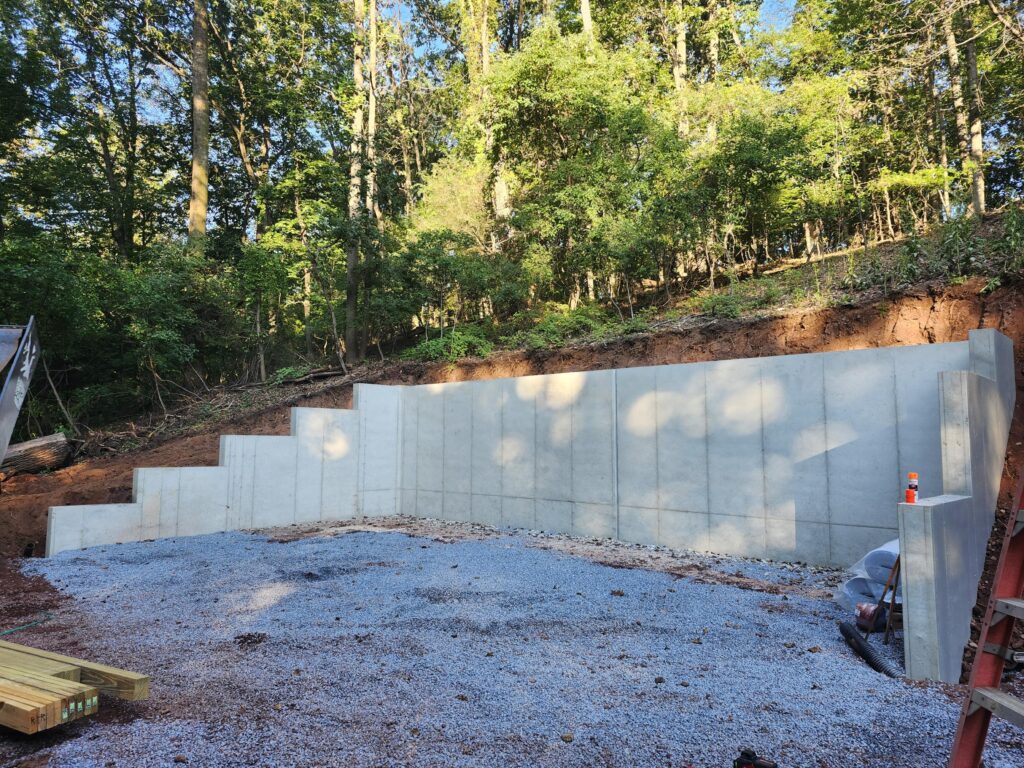

When this customer approached us about constructing a building atop a poured concrete retaining wall—installed to address a challenging runoff issue—we jumped at the opportunity.
.

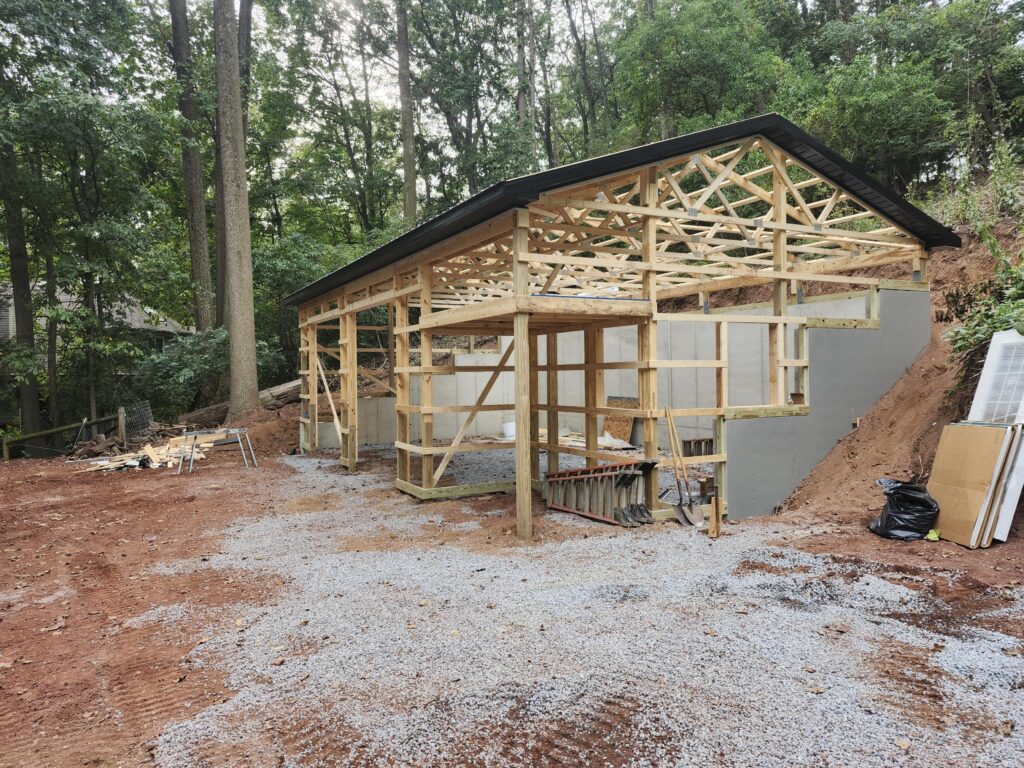

While we don’t typically work with elevated concrete foundations, our team was eager to tackle the challenge and deliver a building that fit the site perfectly. The end result speaks for itself — an elevated post-frame building that fits this property perfectly.
.
Features & Specs:
• 24′ x 40′ footprint with 12′ interior height
• 4/12 roof pitch with 4′ o/c trusses (30-5-5 loading)
• Patriot Panel 28 Gauge Roofing & Siding
• 12″ overhangs on Eaves & Gables
• Radiant insulation barrier on roof
• (2) 10′ x 10′ insulated steel-backed overhead doors
• (1) 3′ x 6′8″ fiberglass 9-lite entry door
• (2) 36″ x 44″ single-hung insulated windows with half screens (Black)
• Inset 10′ x 6′ covered porch with finished ceiling
• Black Gutter & Downspouts
.
Ready to get started on your next project? Call us today at (800) 331‑1875 for a free quote.
.
Project # 006FETS25
