80′ x 200′ Commercial Trucking & Transportation Facility
j

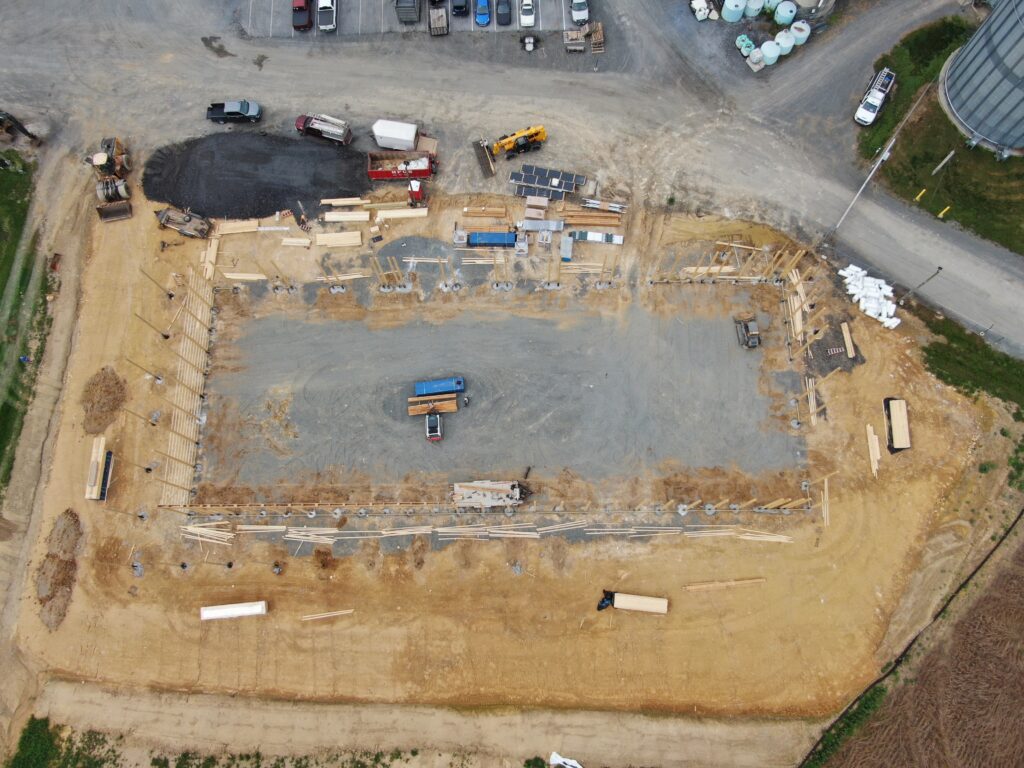

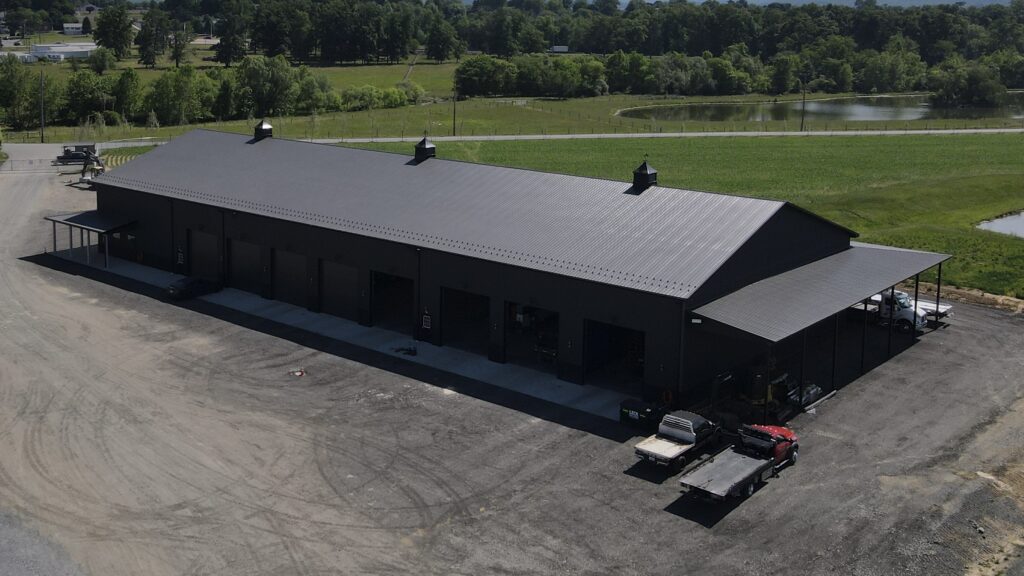

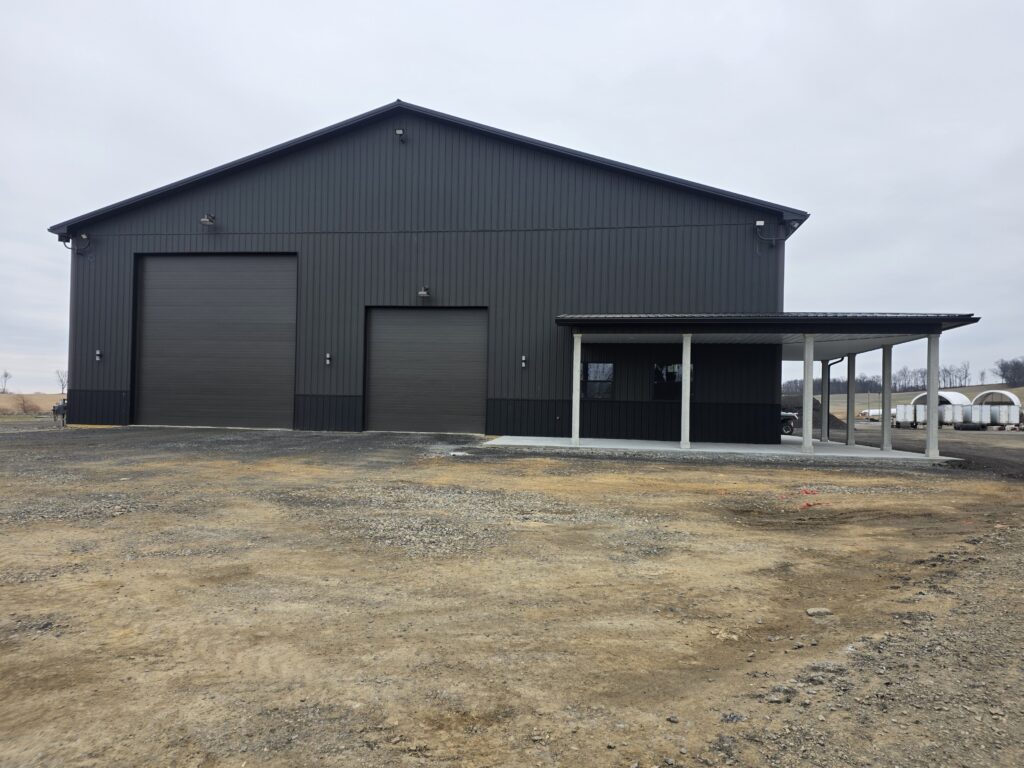

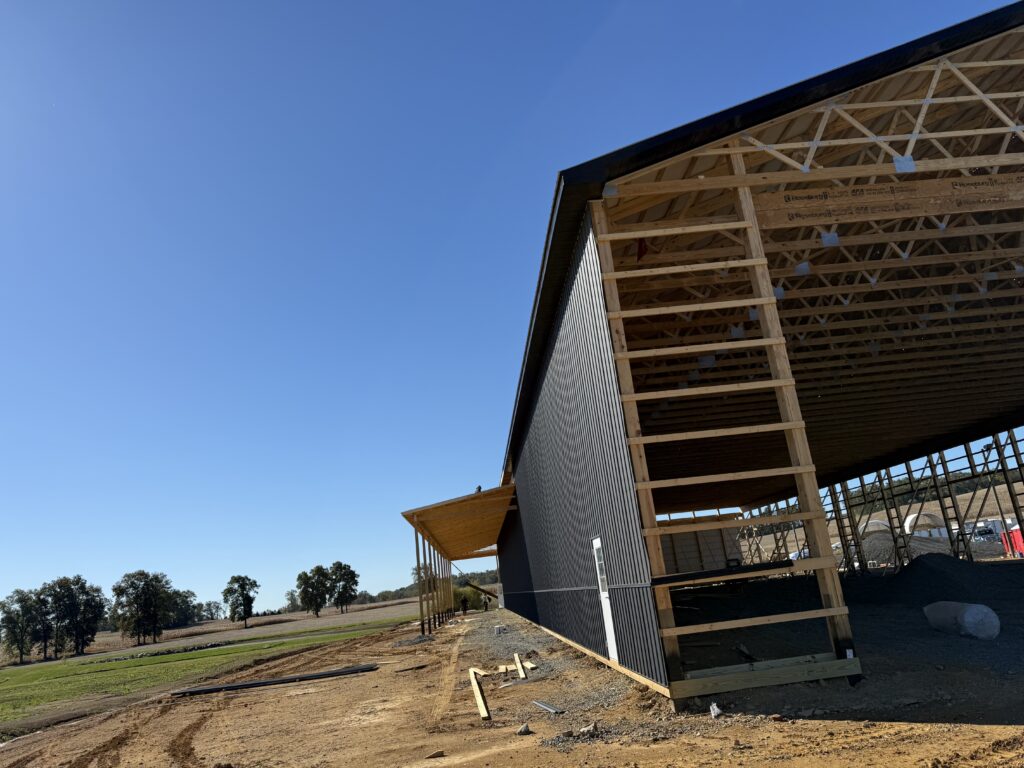

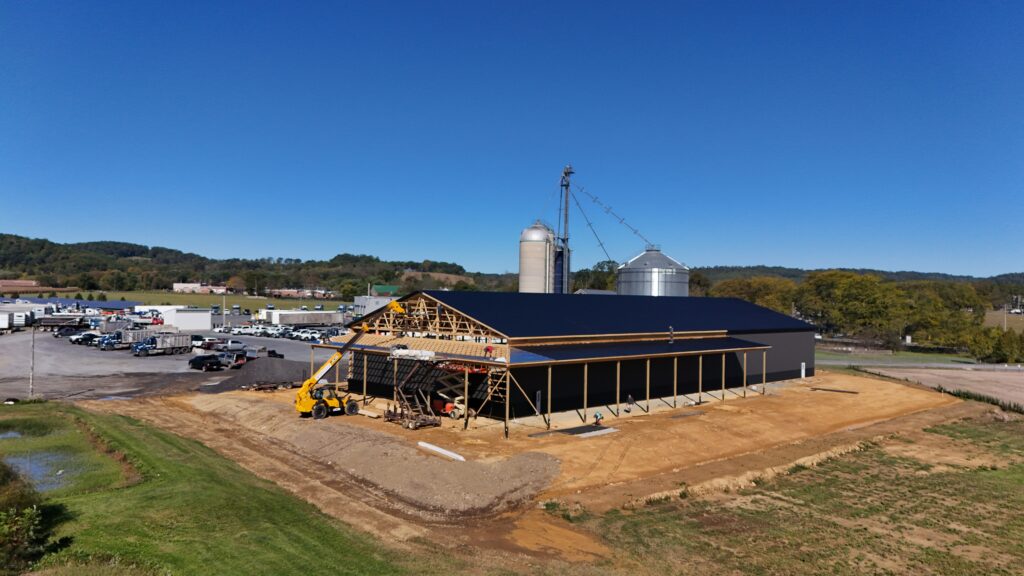

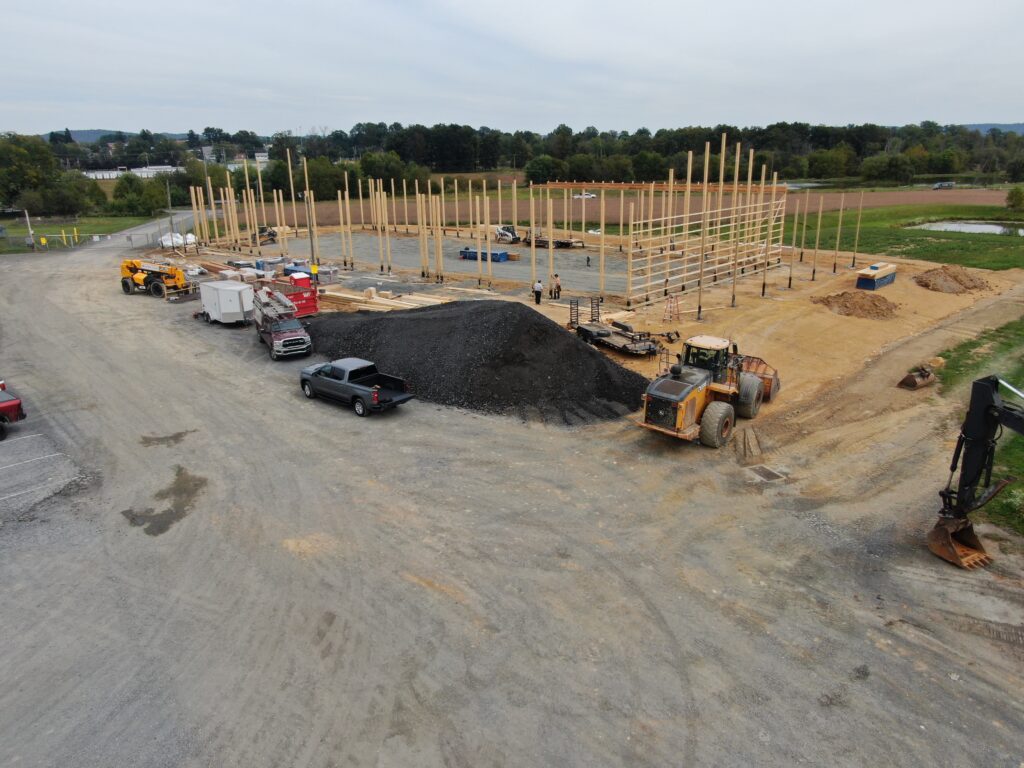

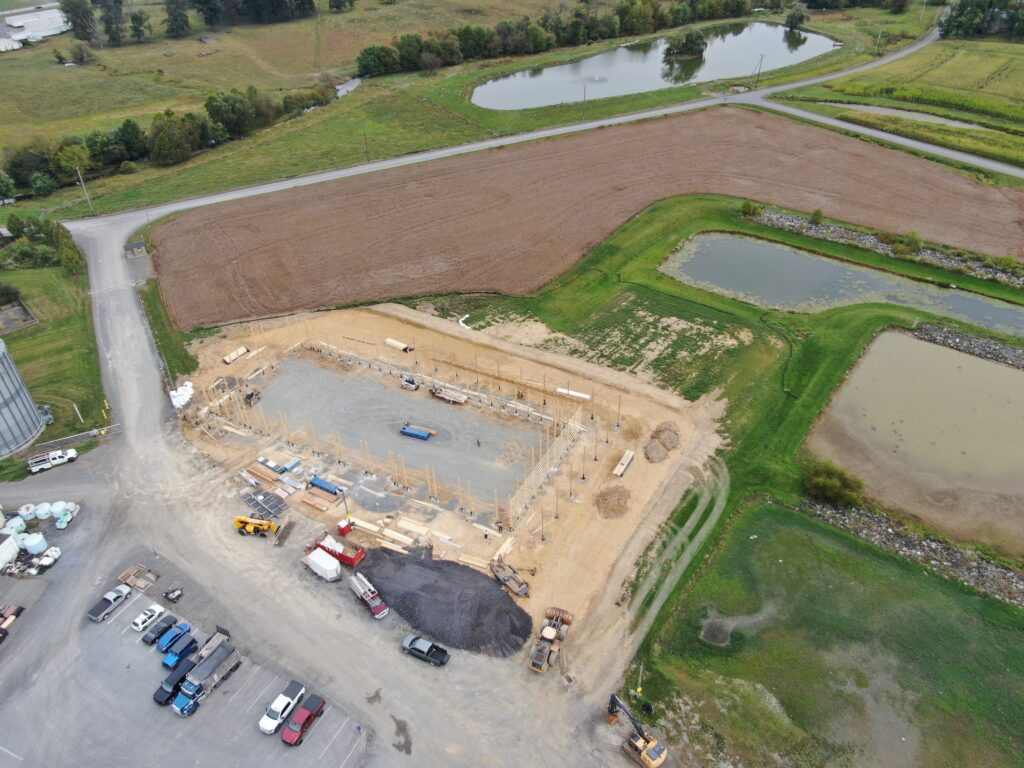

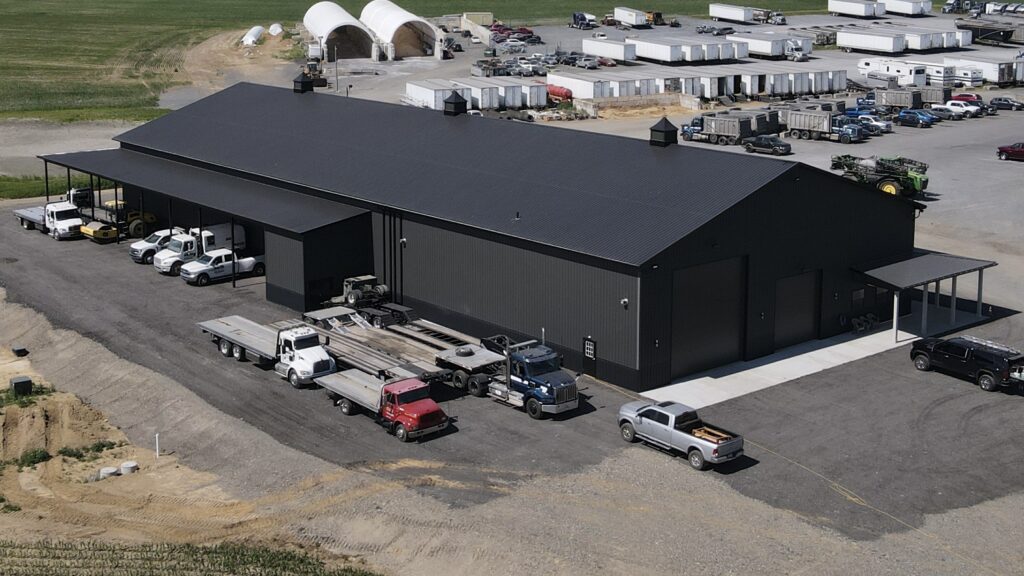

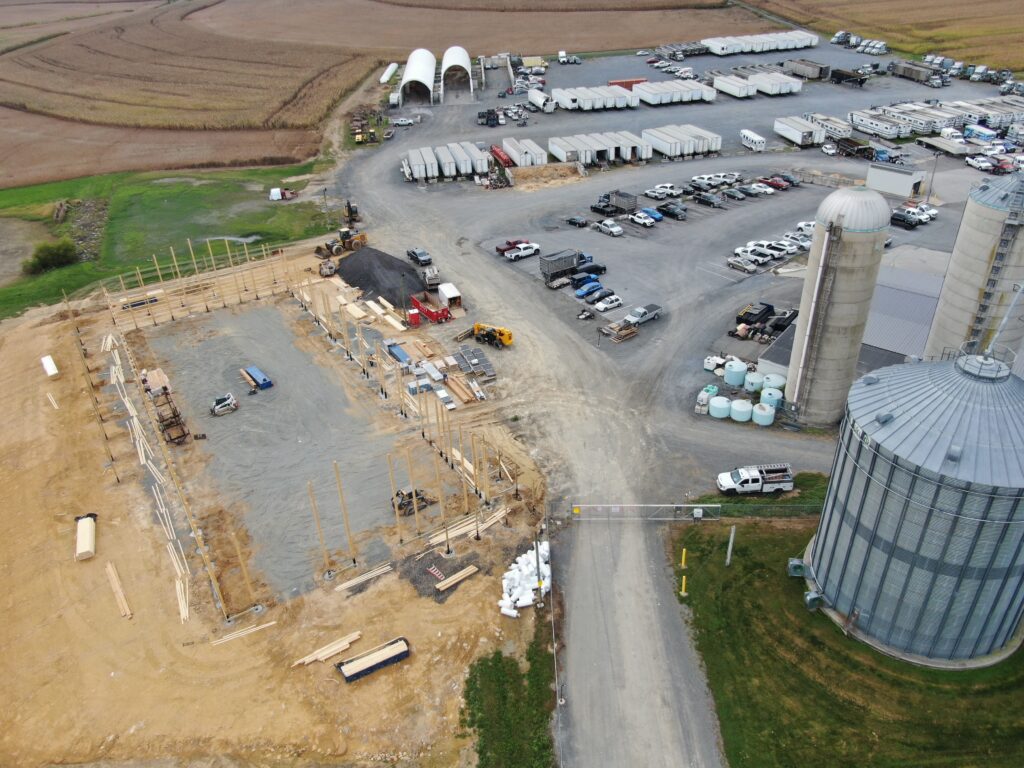

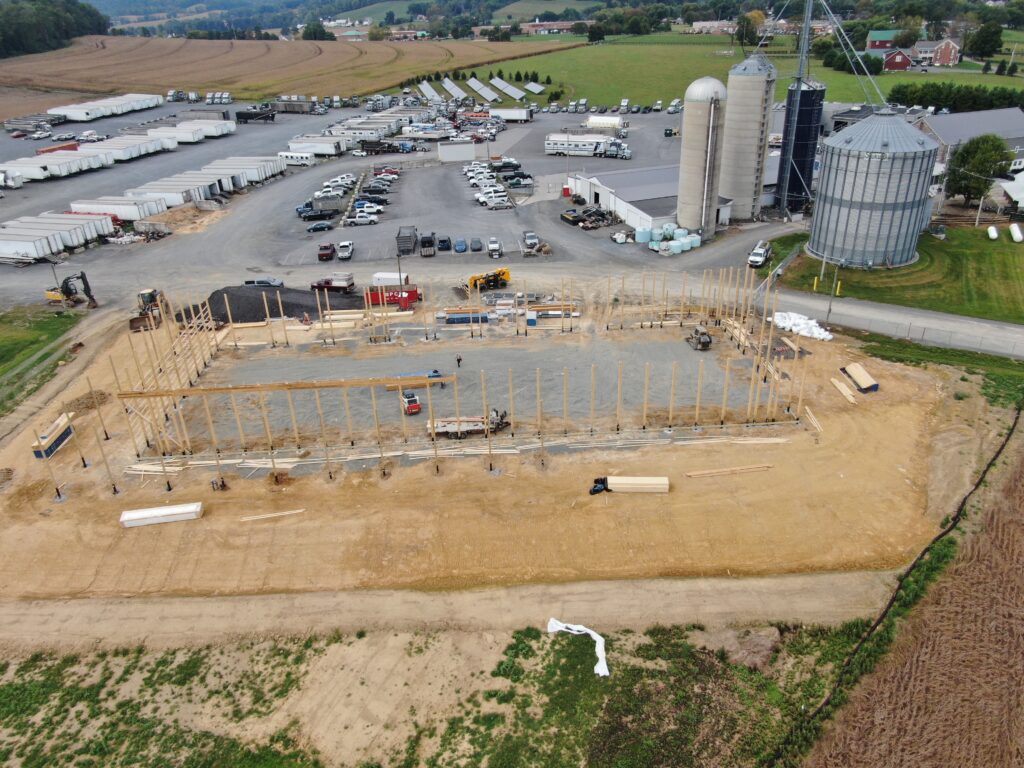

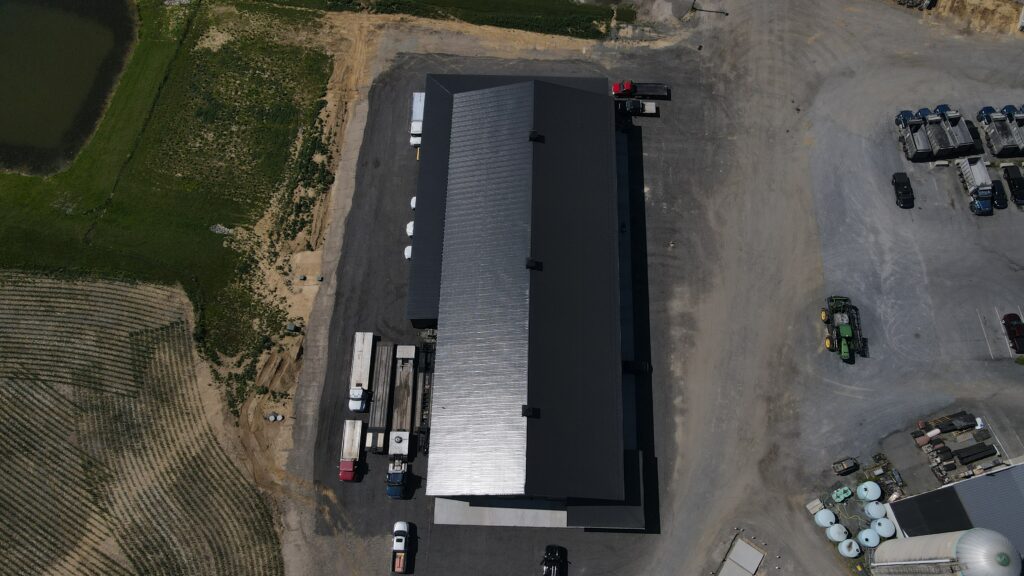

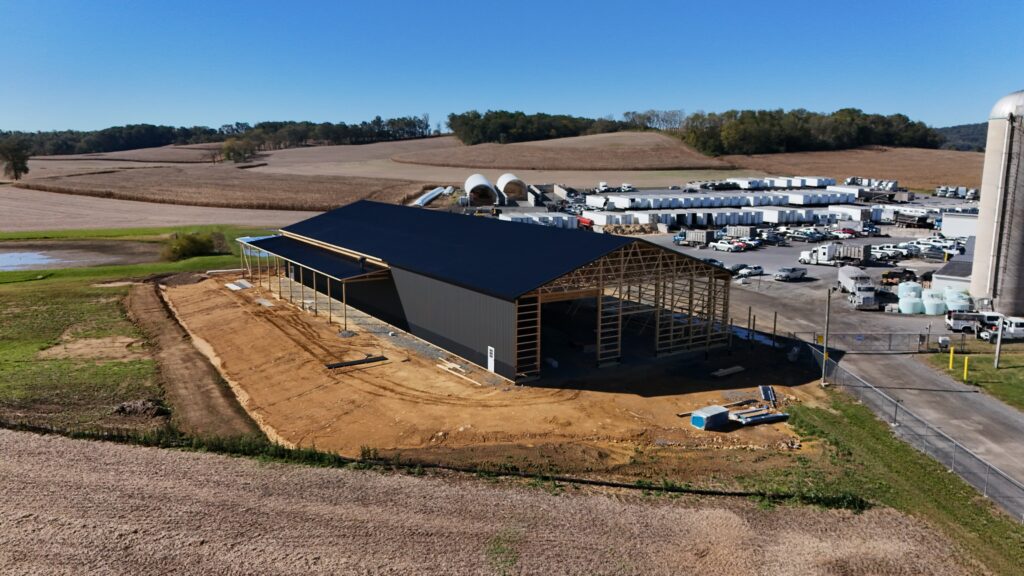

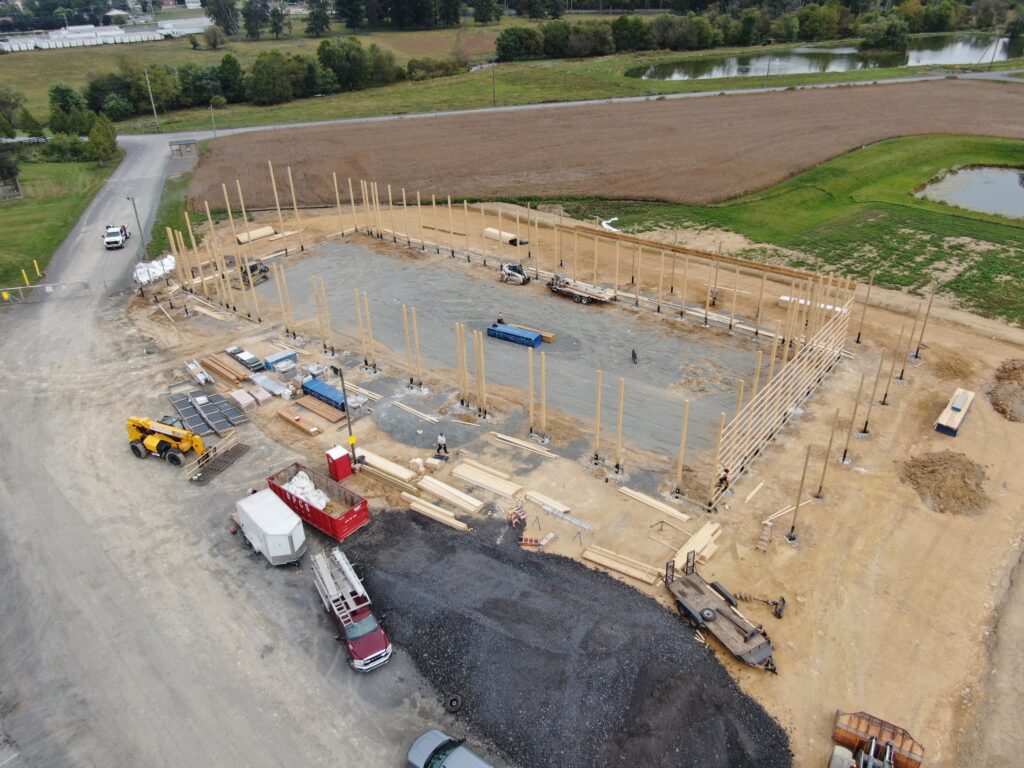

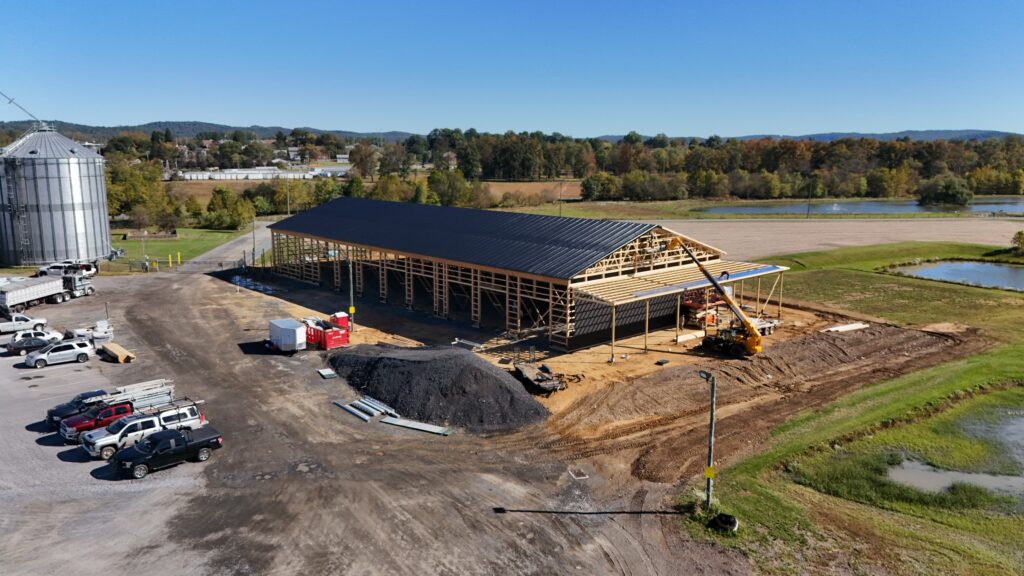

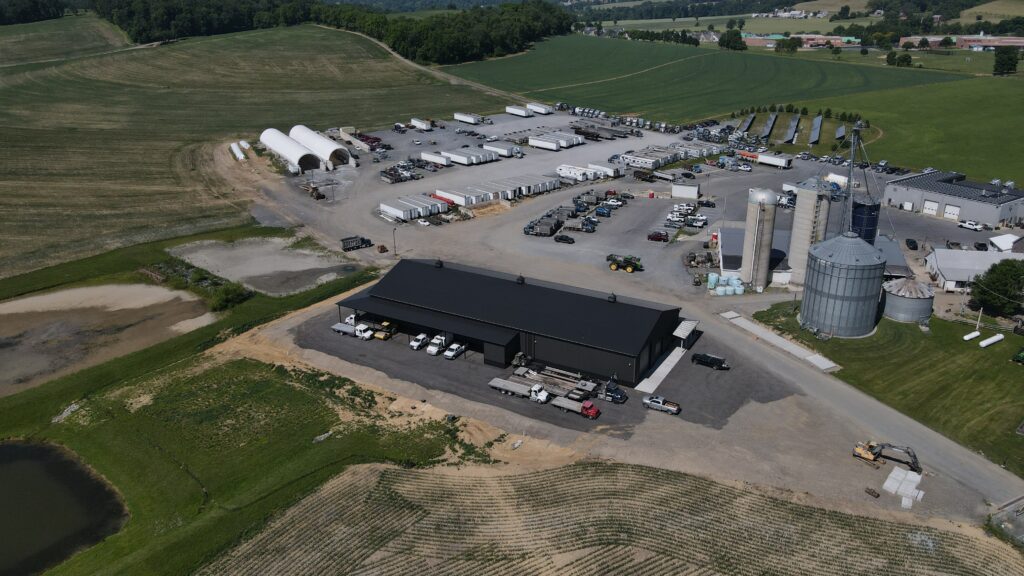

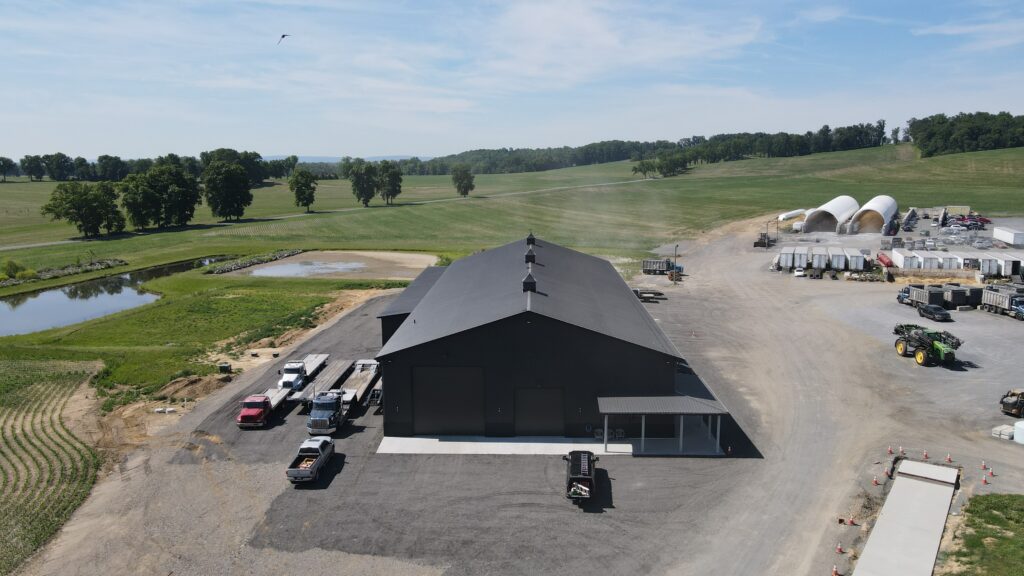

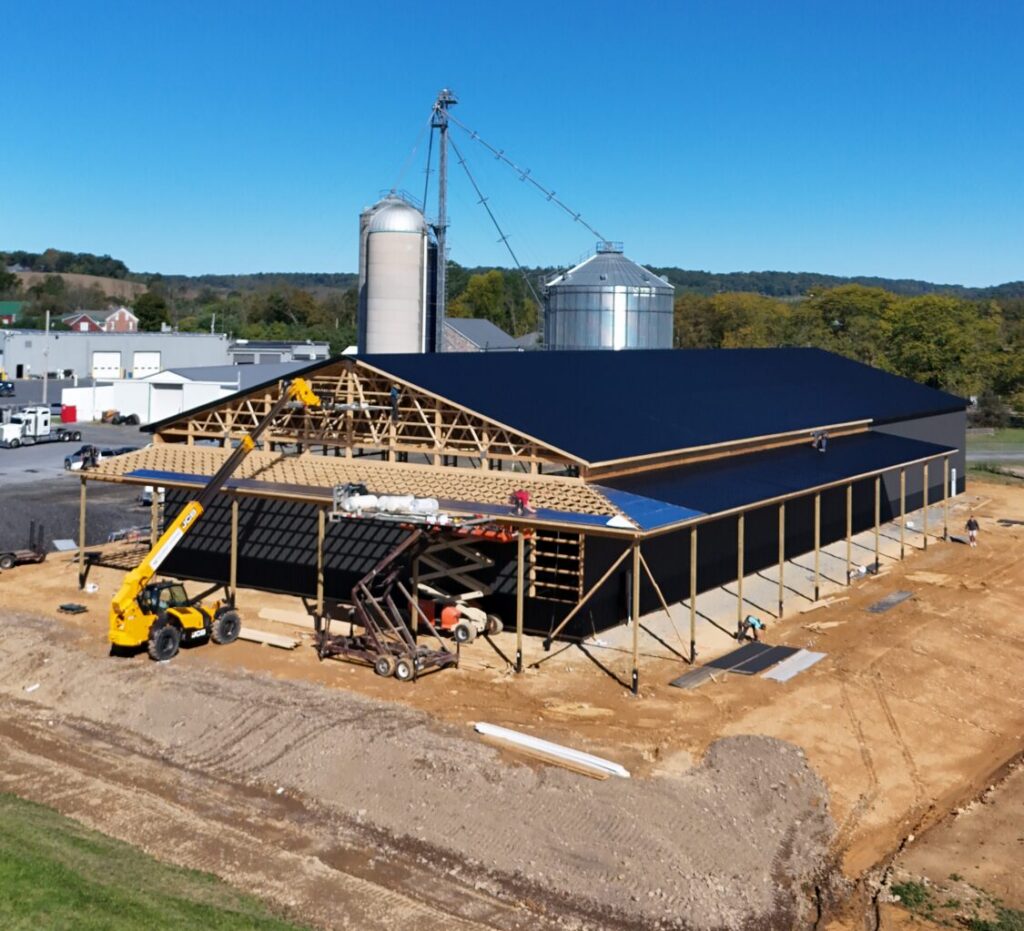

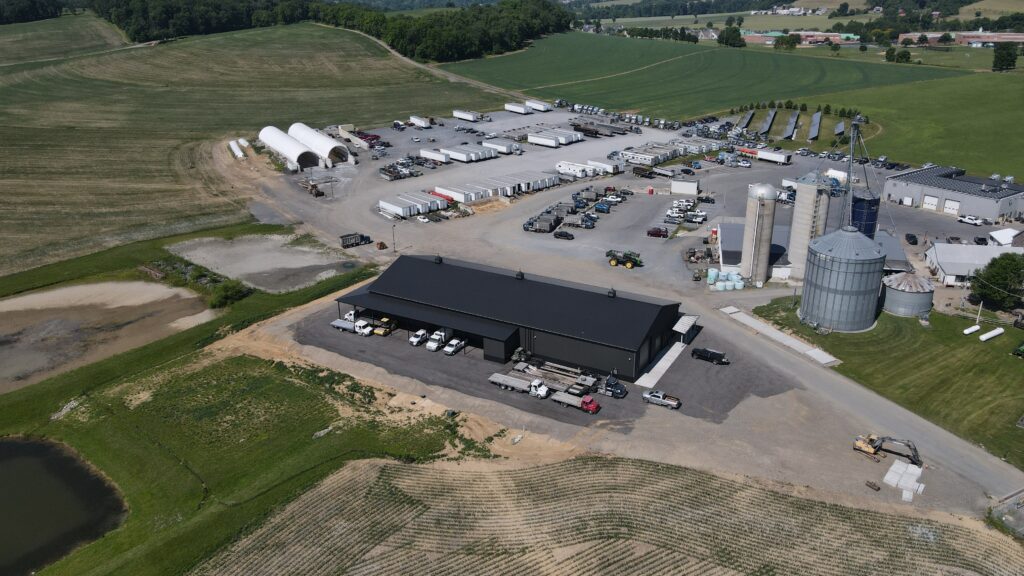

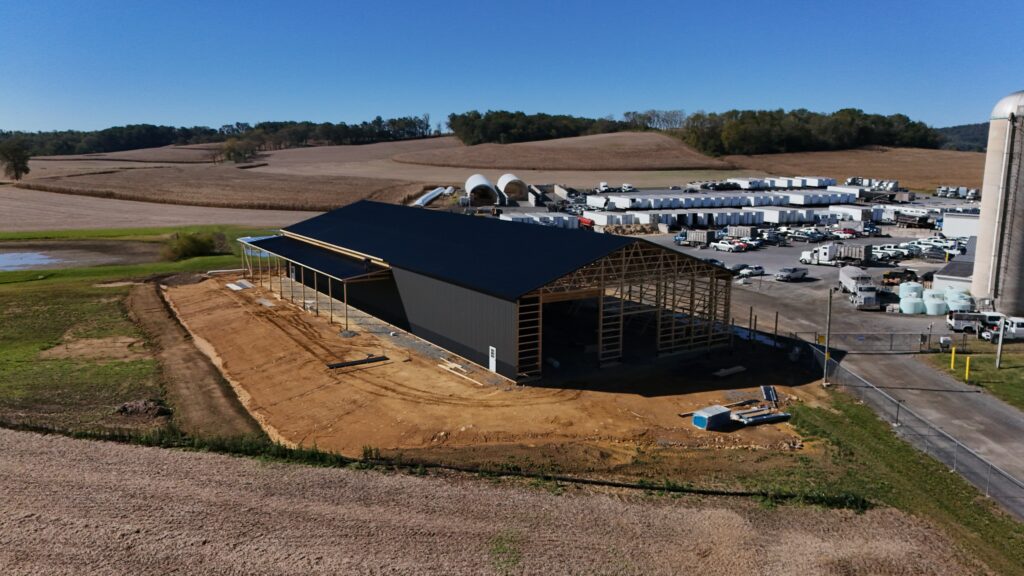

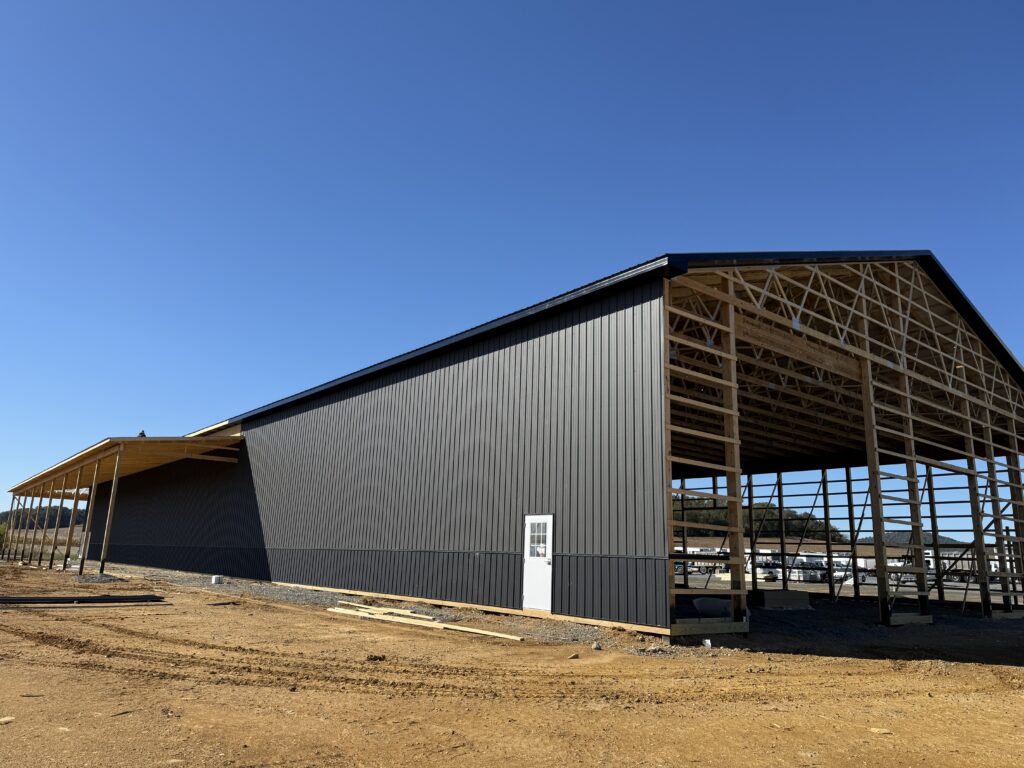

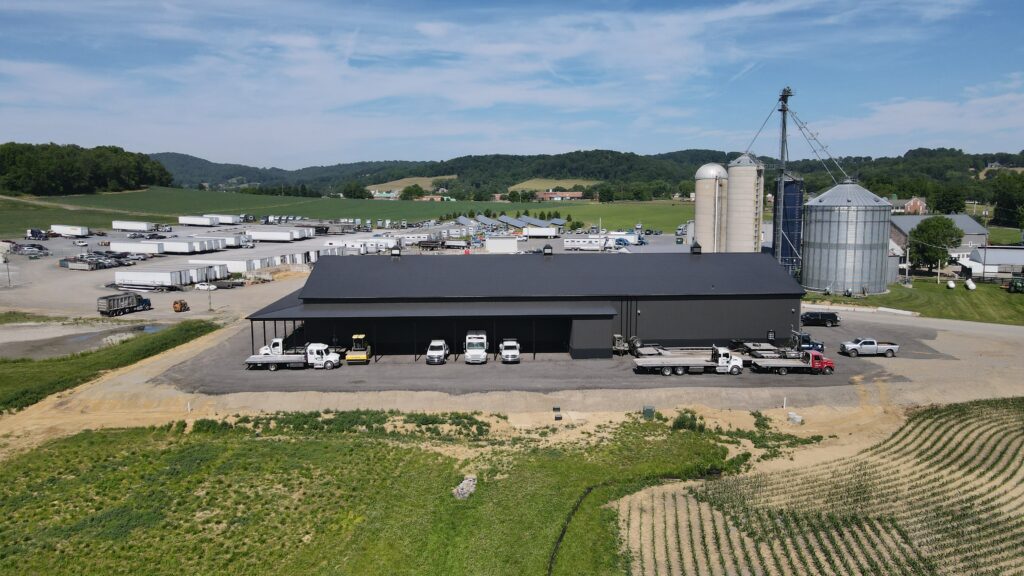

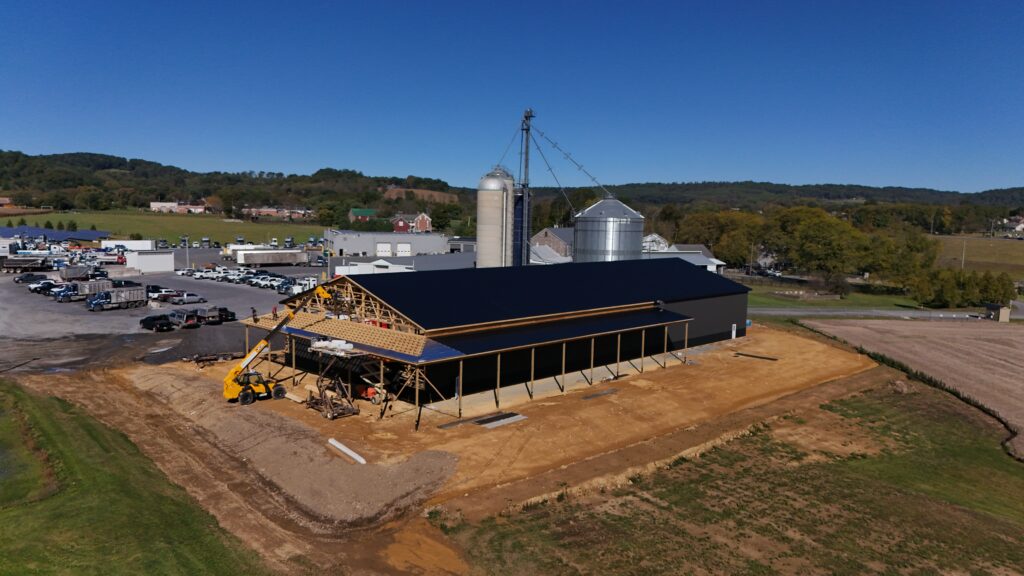

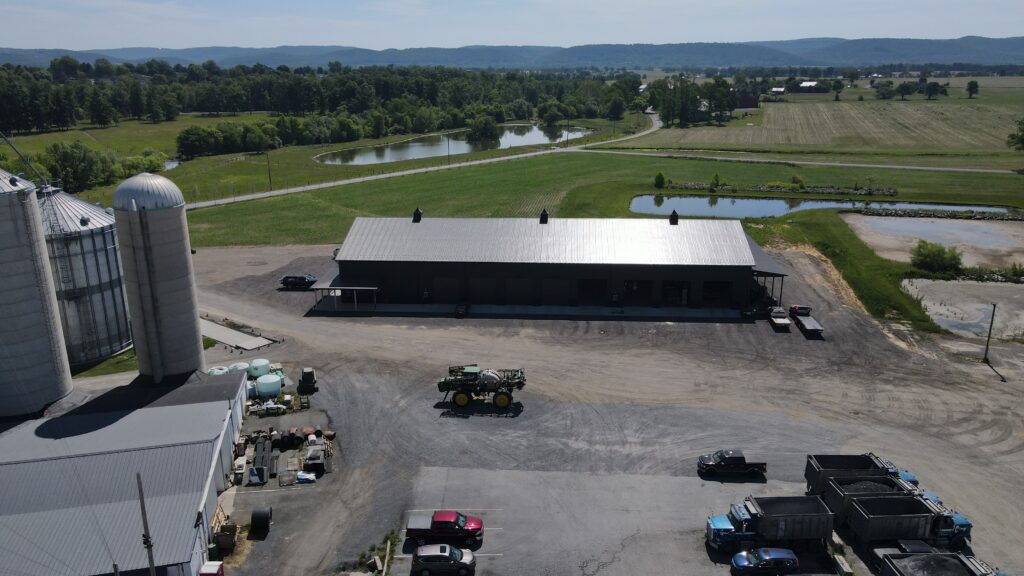

This 80′ x 200′ x 22′ post frame facility was one the standout commercial projects we could not wait to highlight from 2025. Built for a local trucking and transportation company, this building was designed to provide serious space for trucks, equipment, warehouse operations, and office use.
Building Specs
80’W x 200’L x 22’H

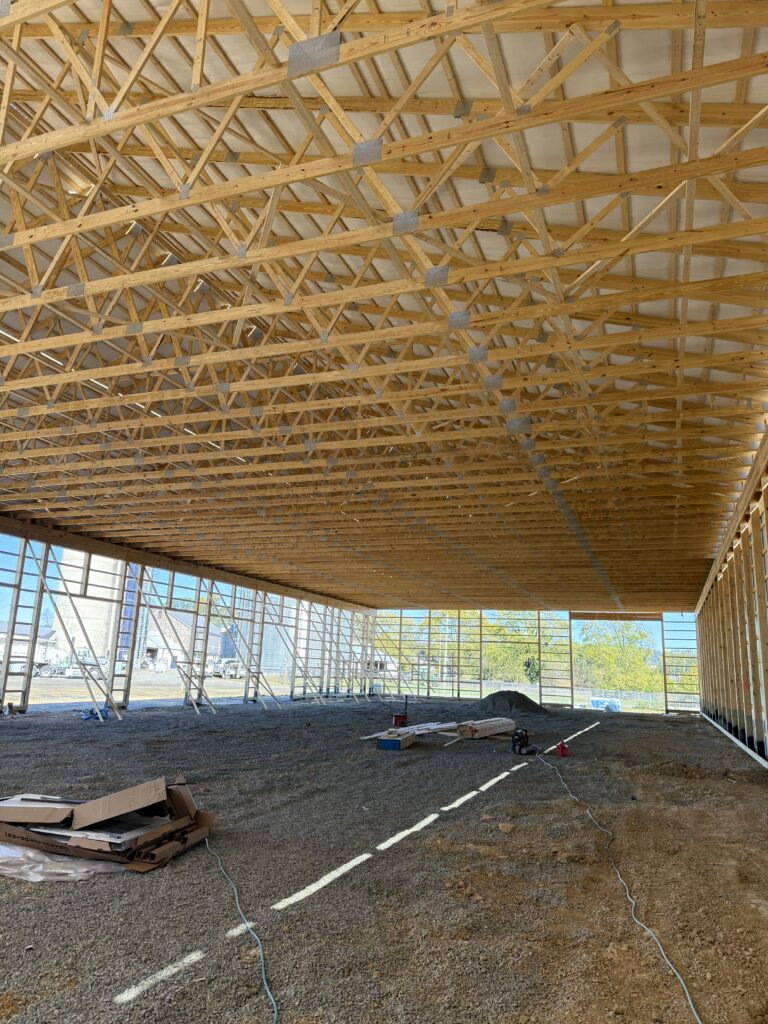

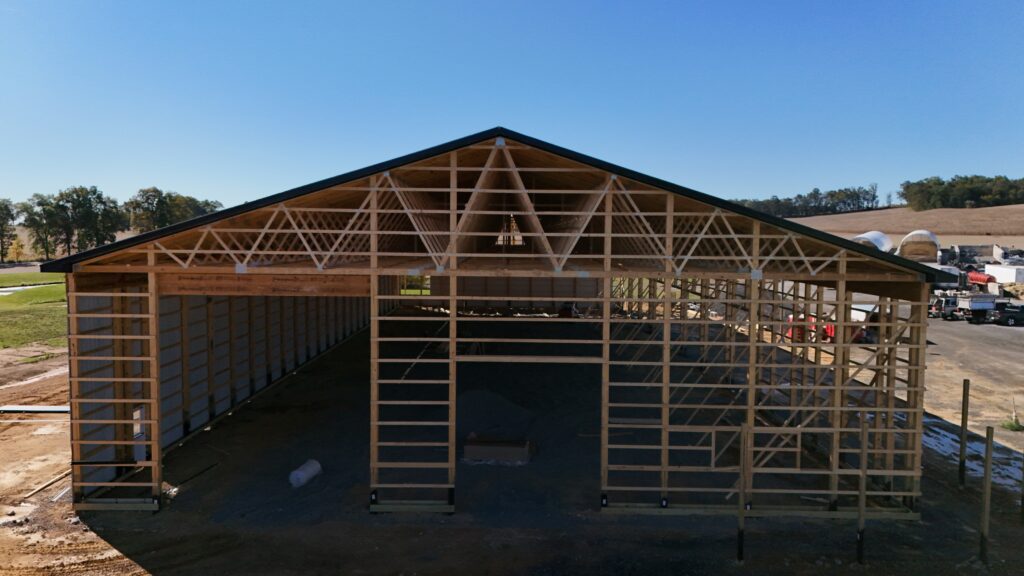

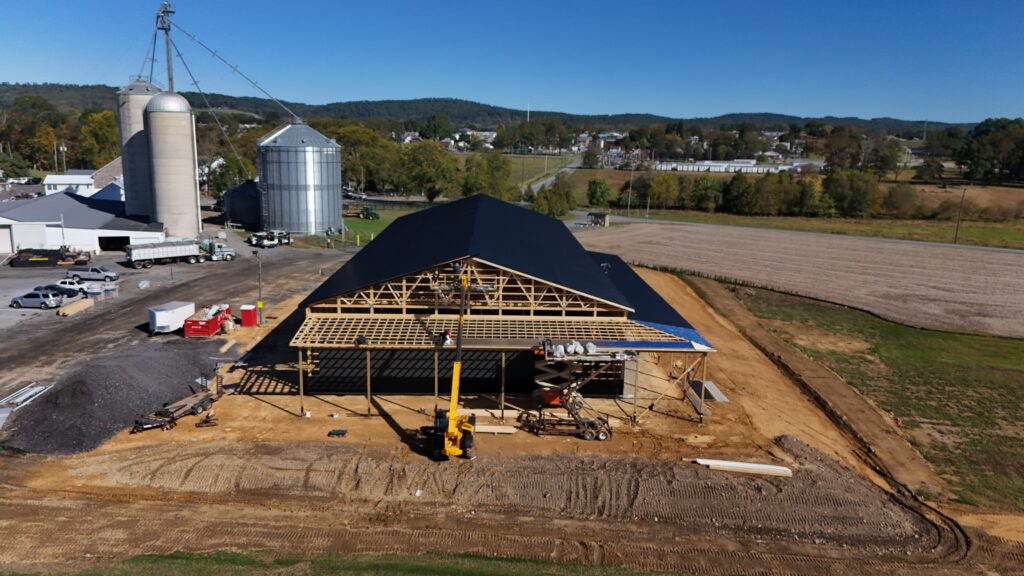

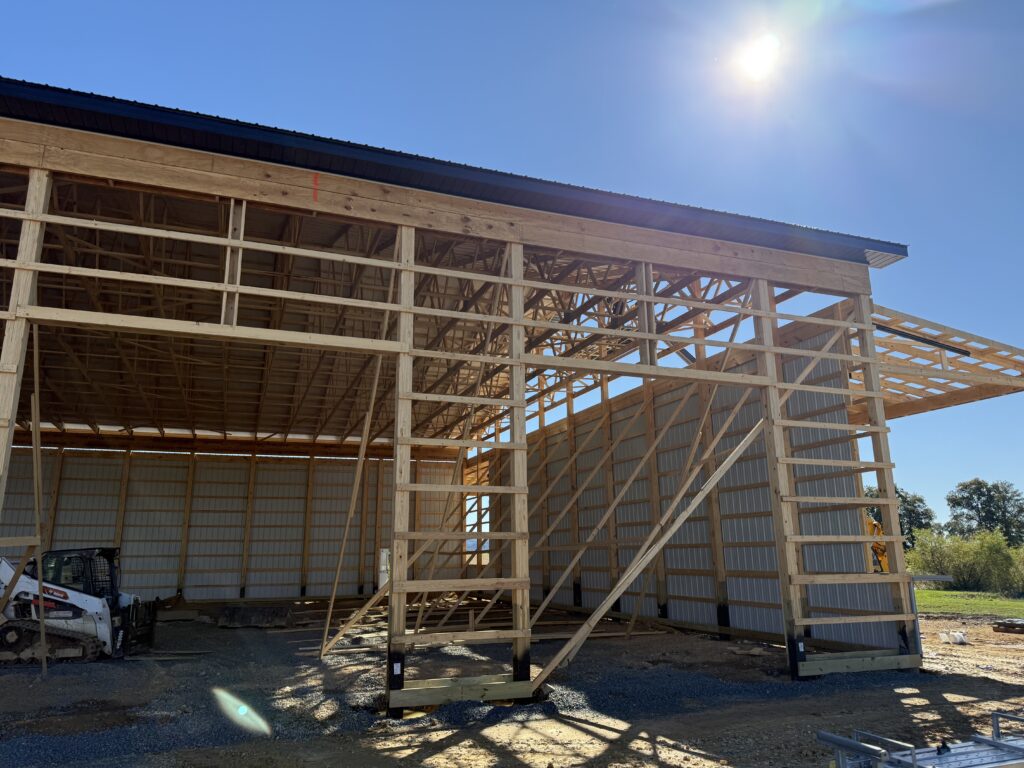

4/12 roof pitch with 4′ o/c roof trusses

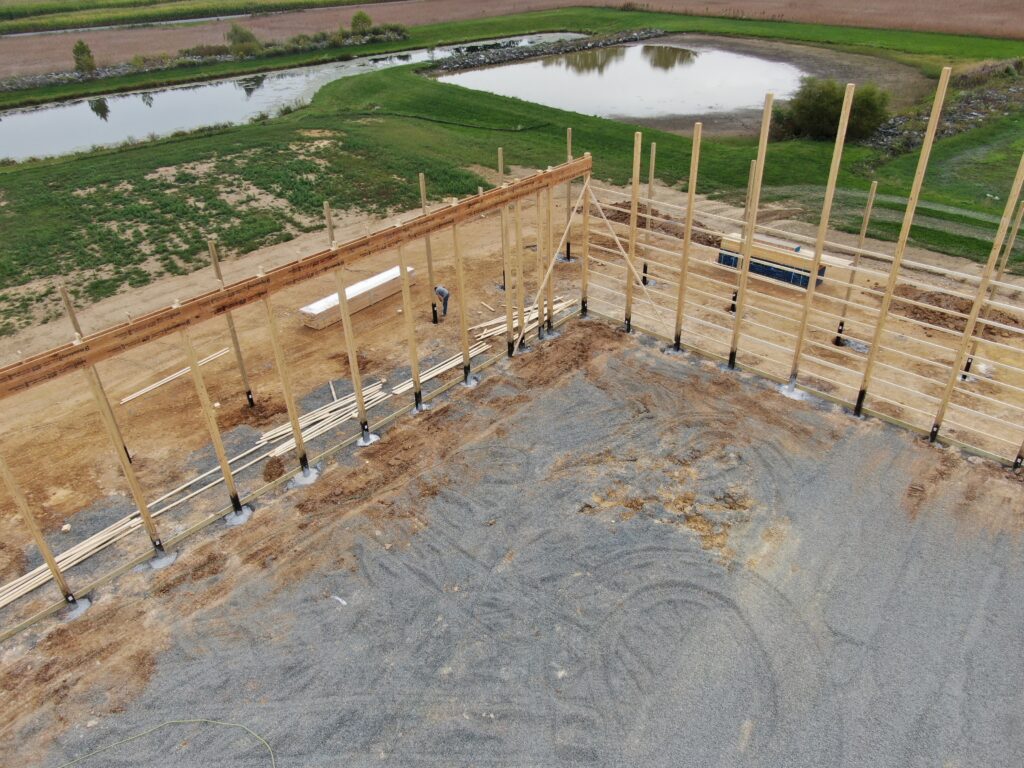

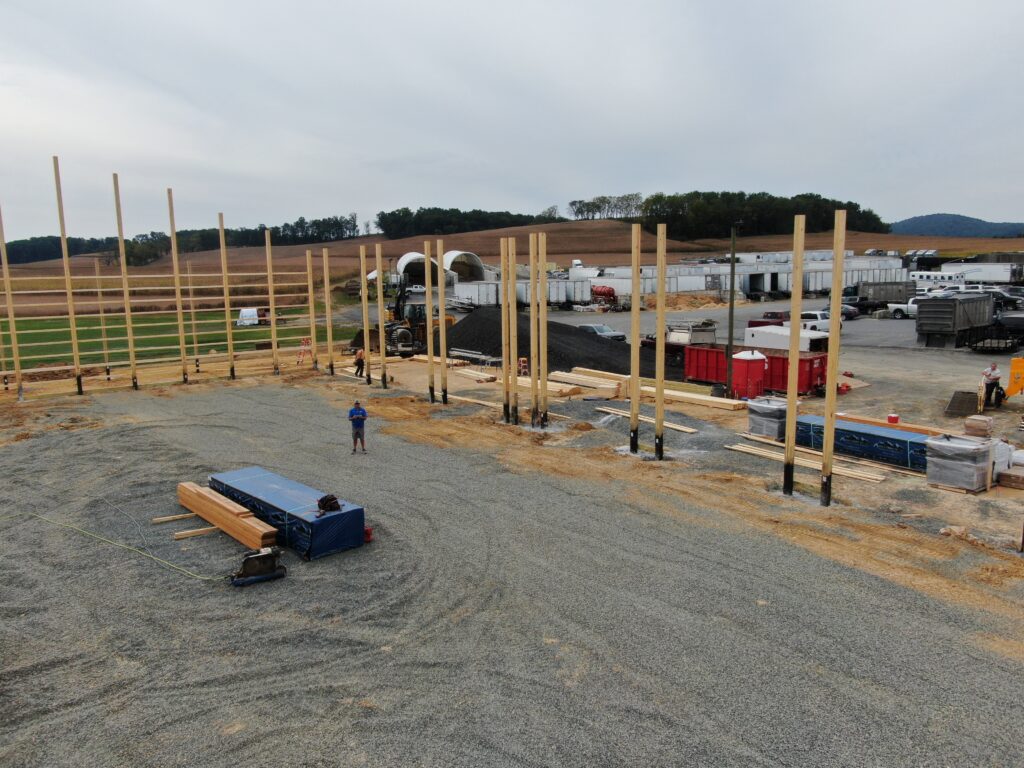

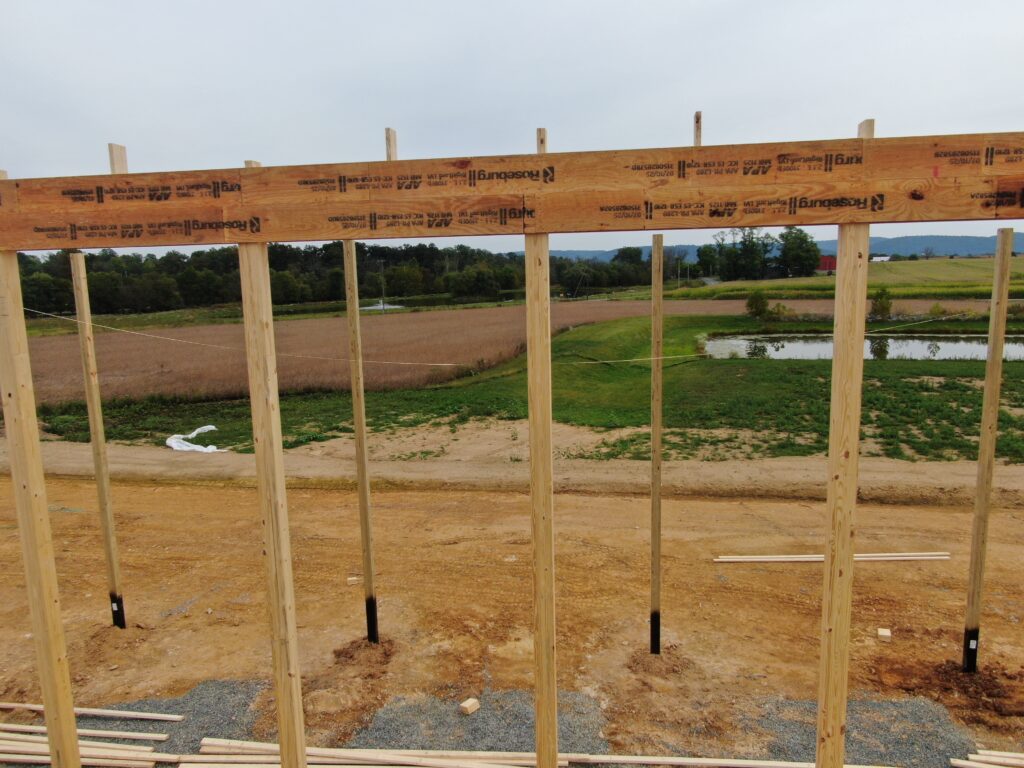

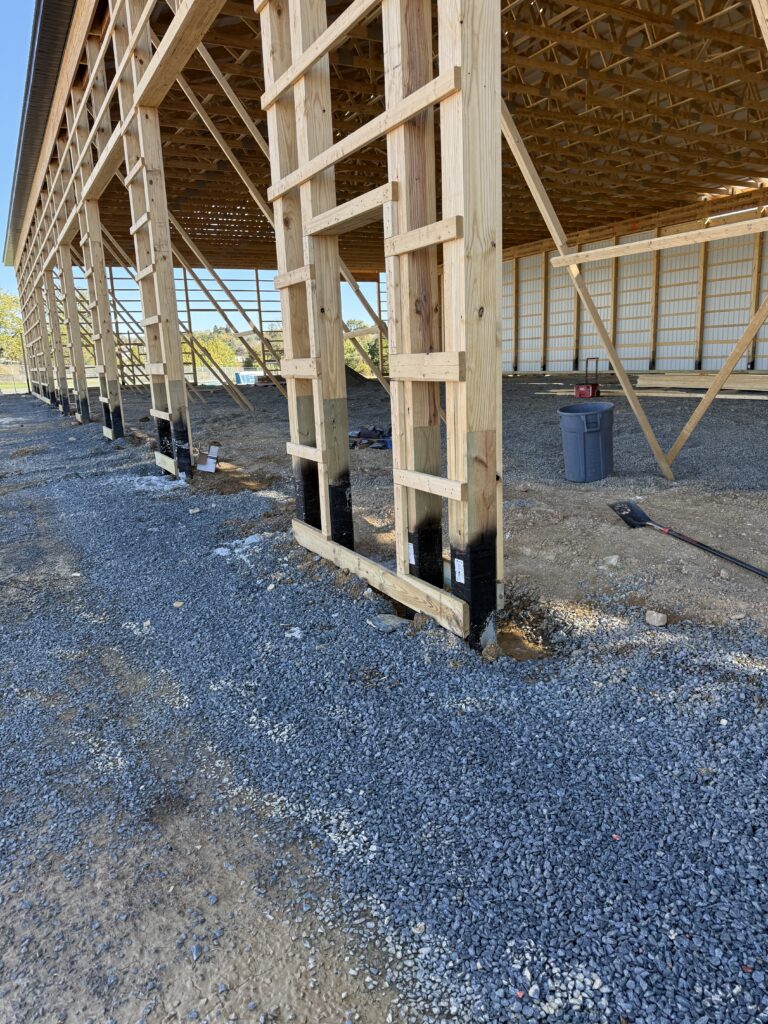

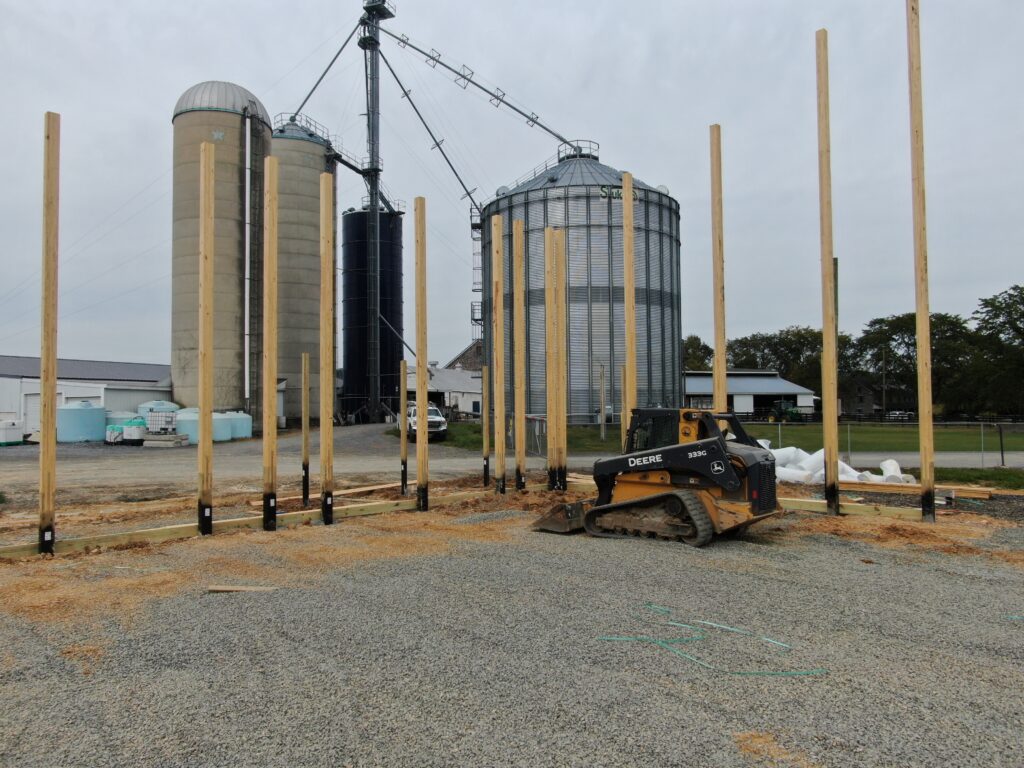

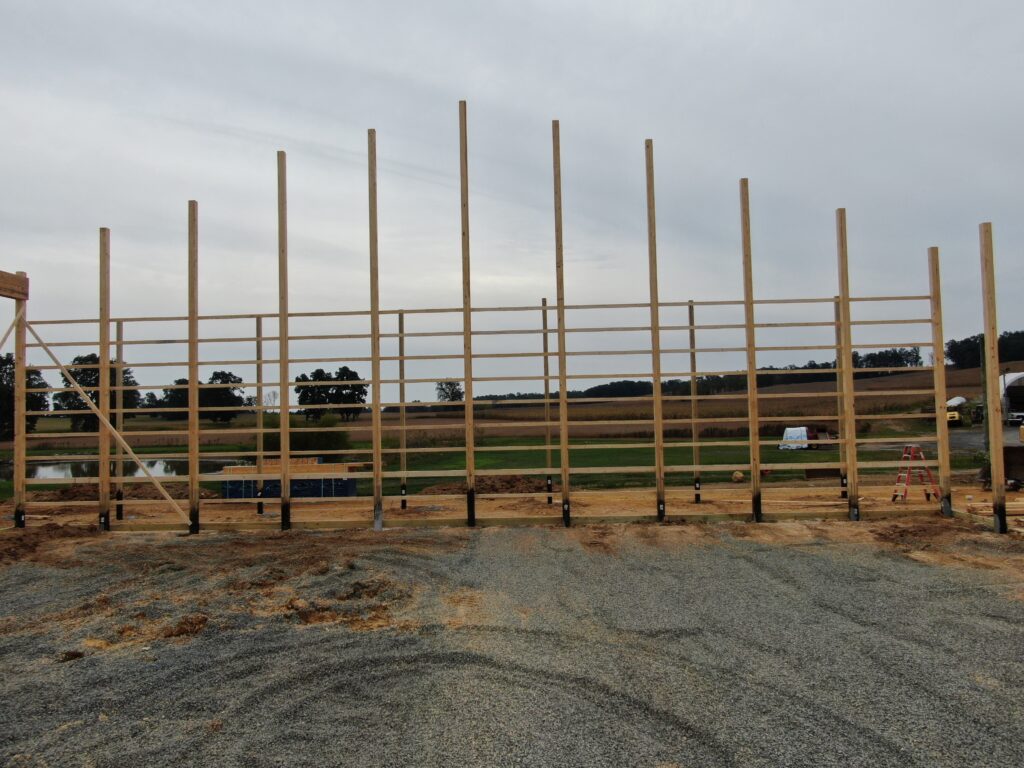

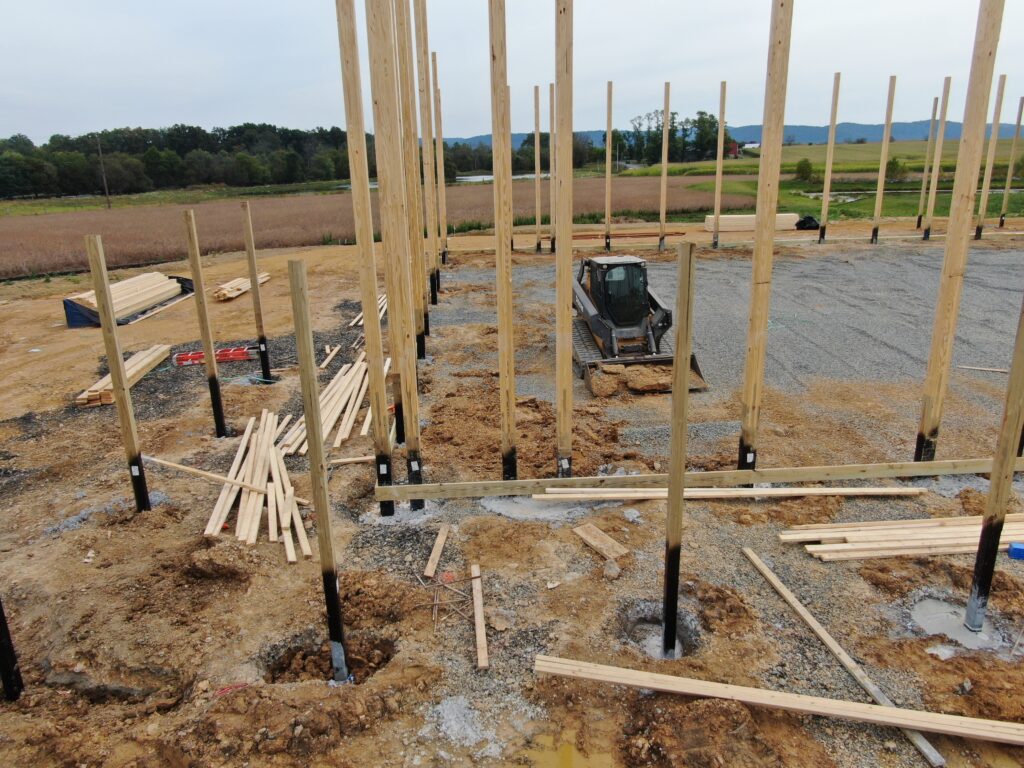

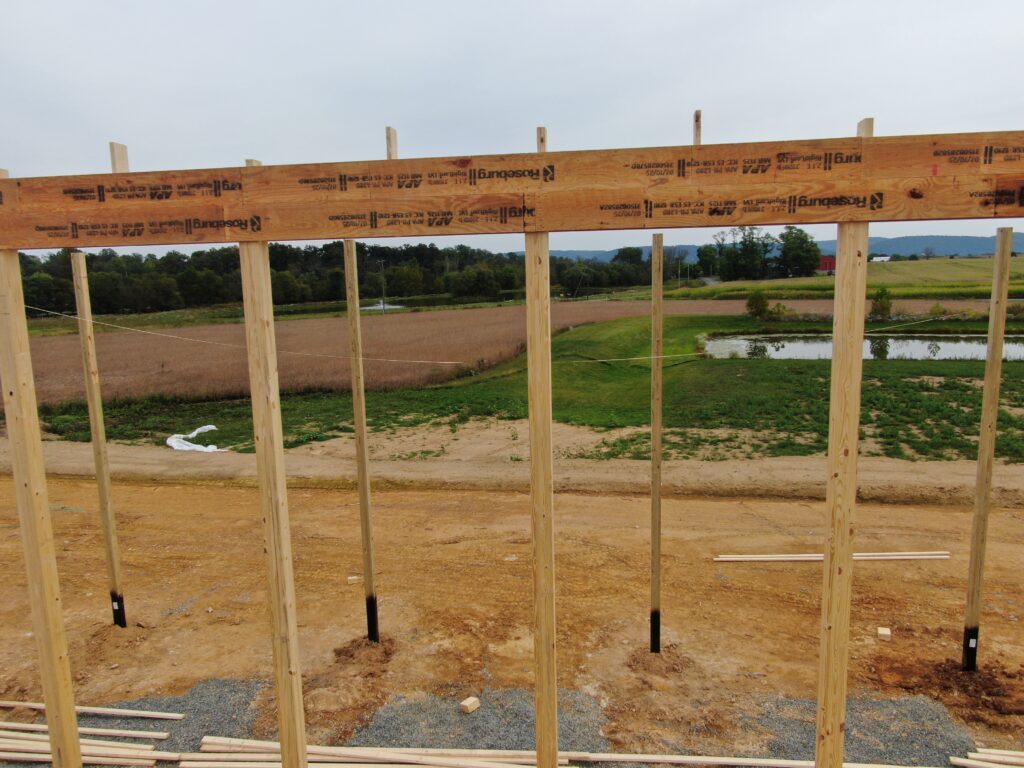

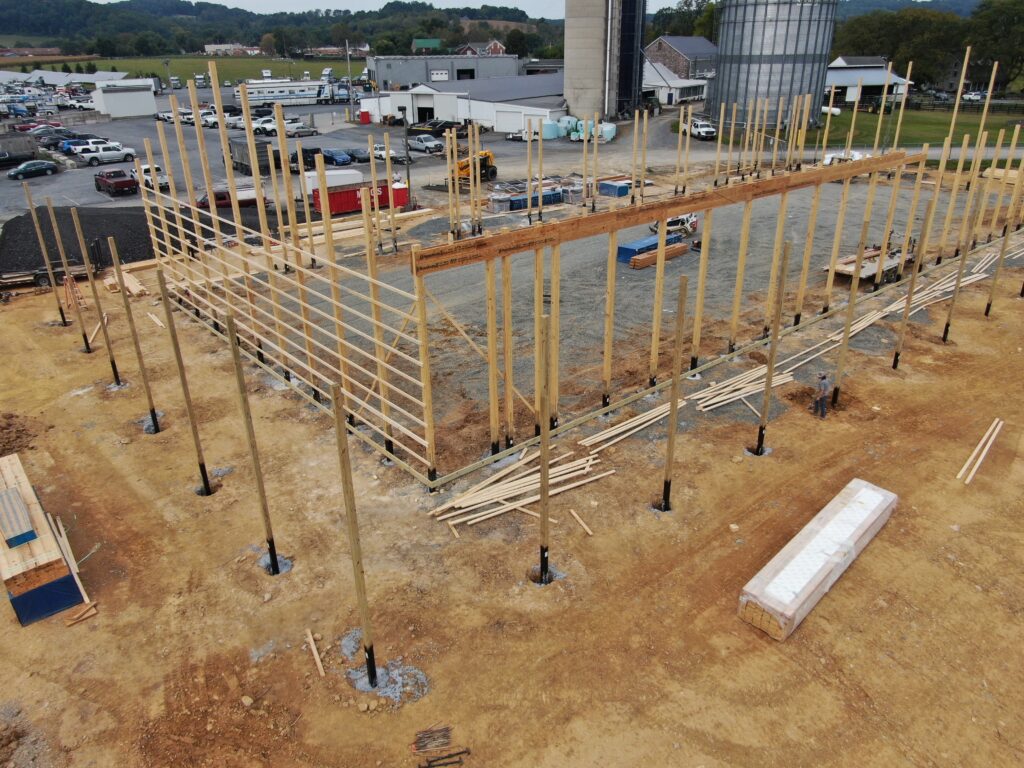

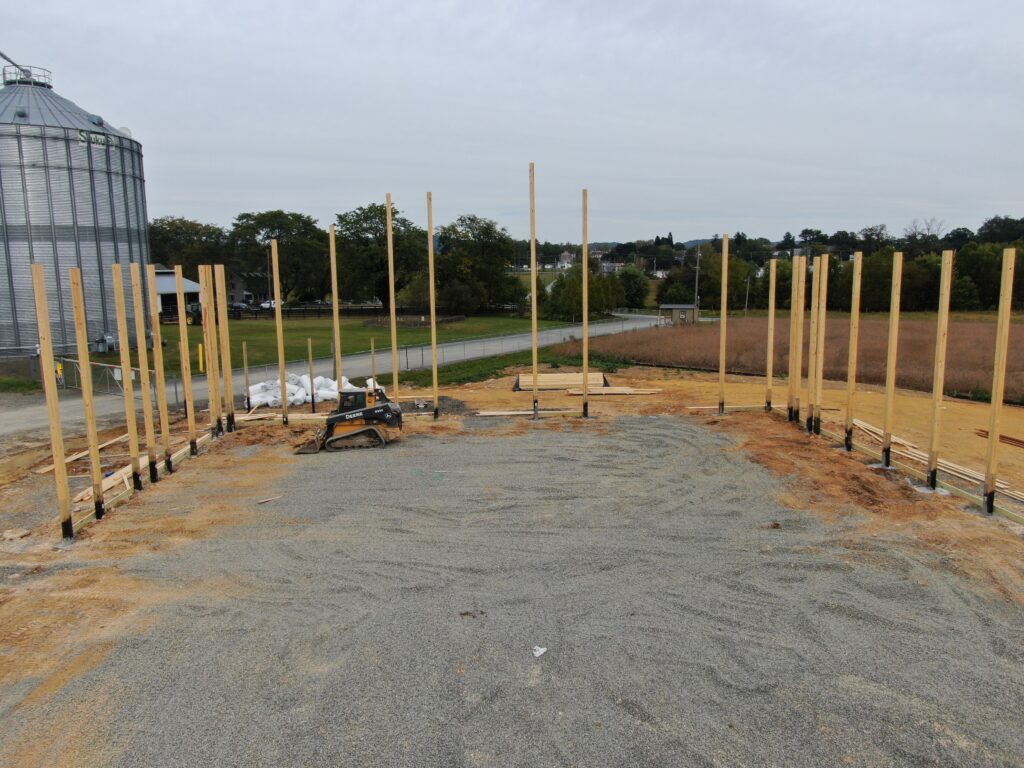

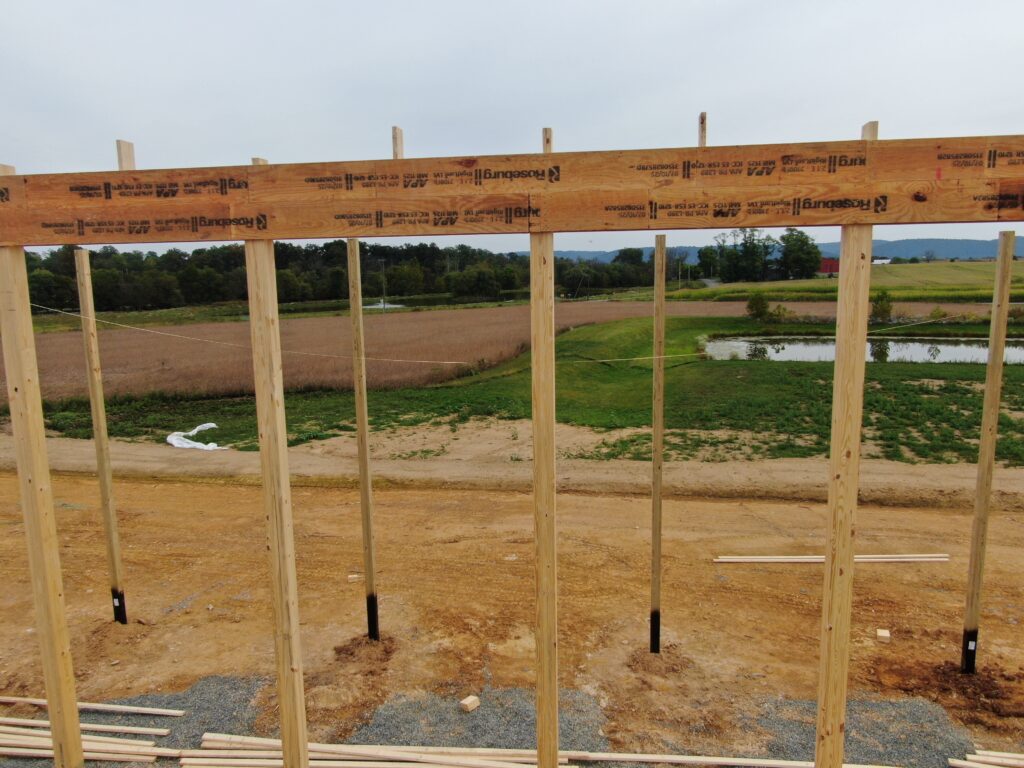

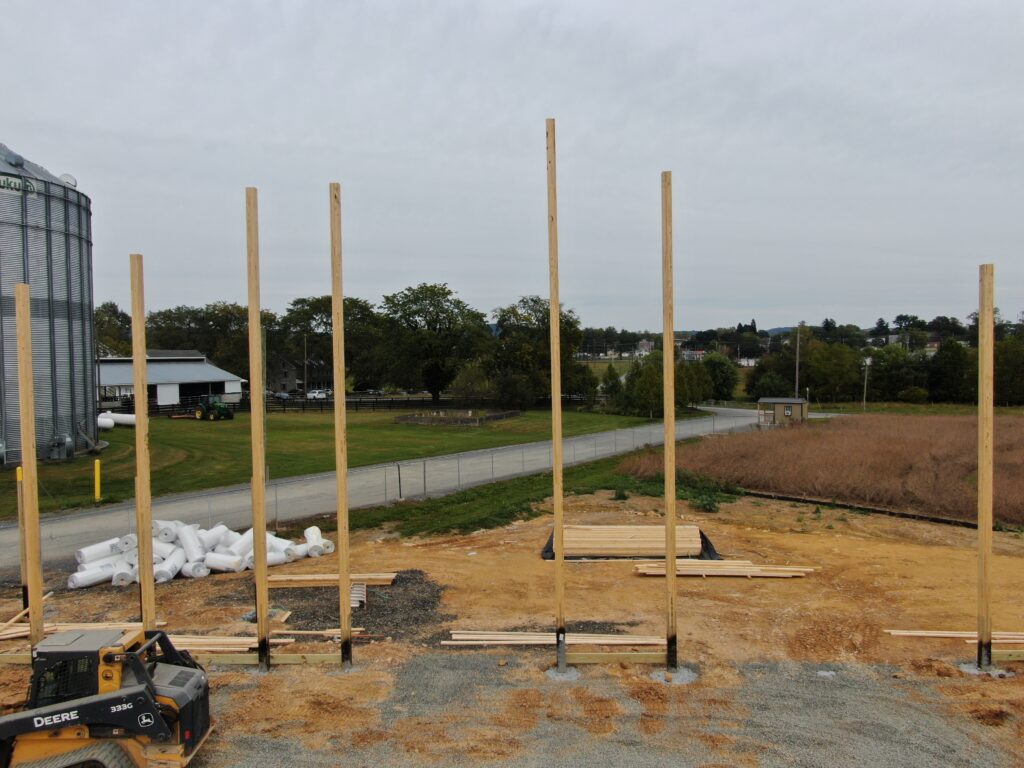

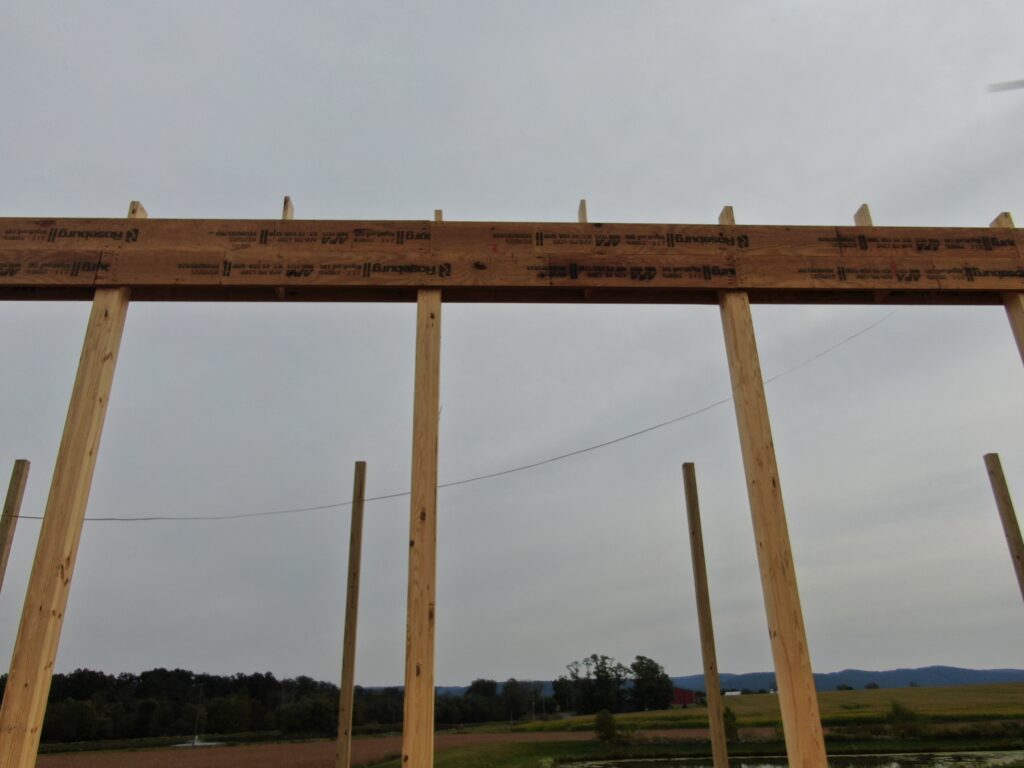

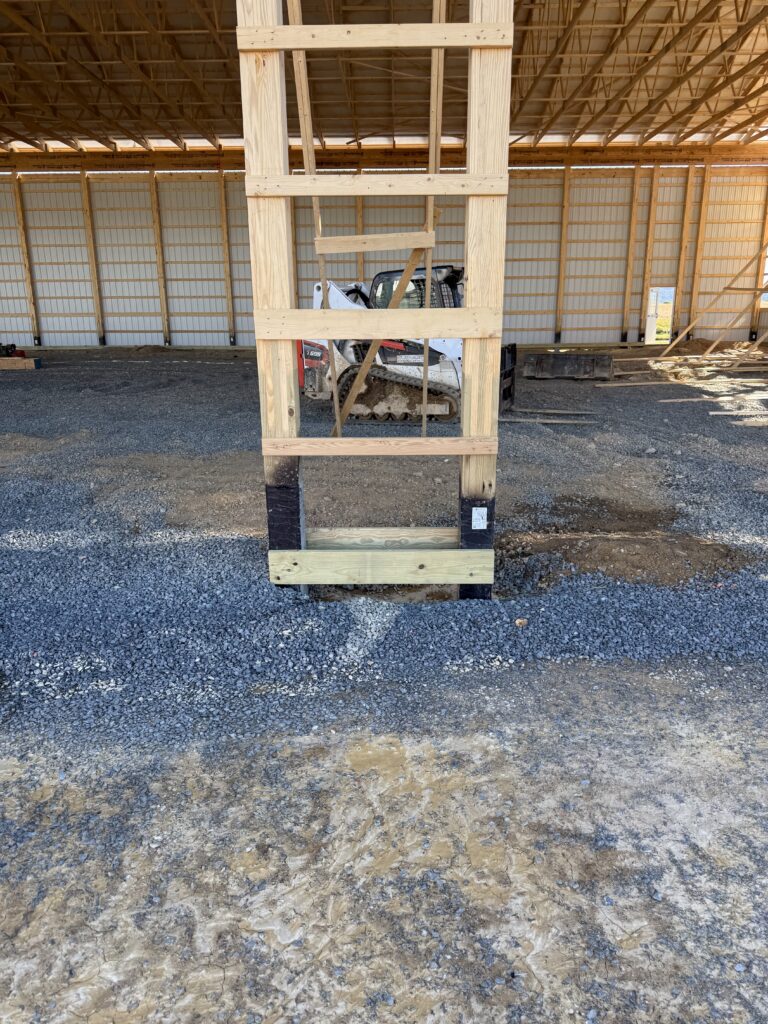

5-ply Glulam Post with Smart Post

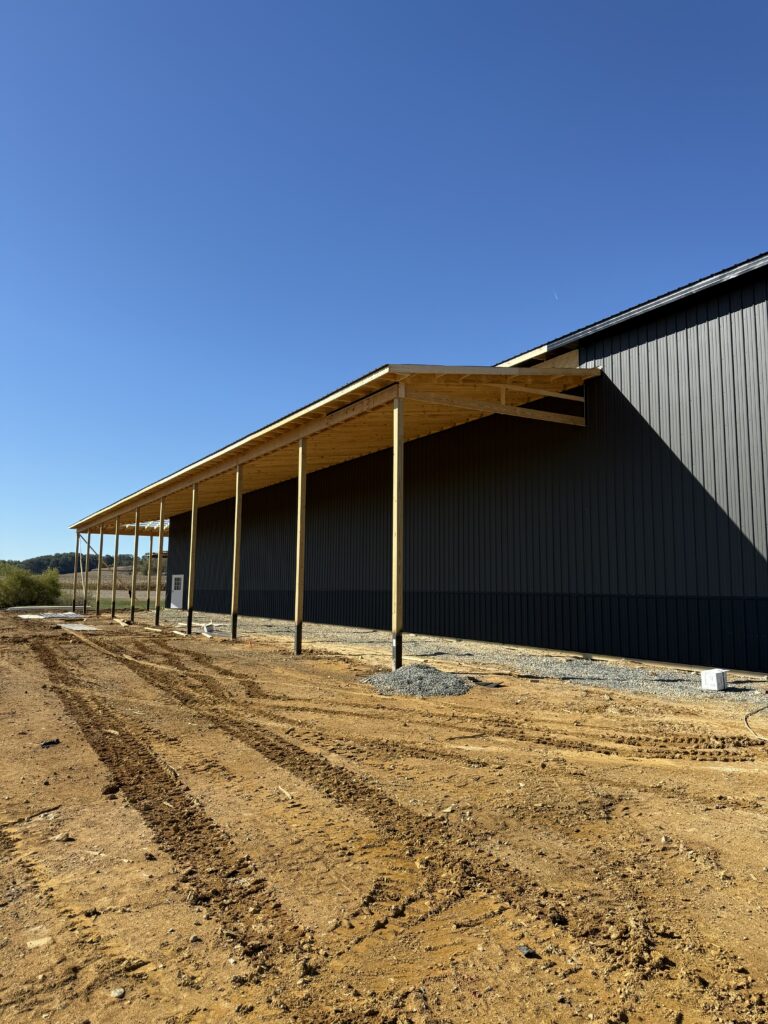

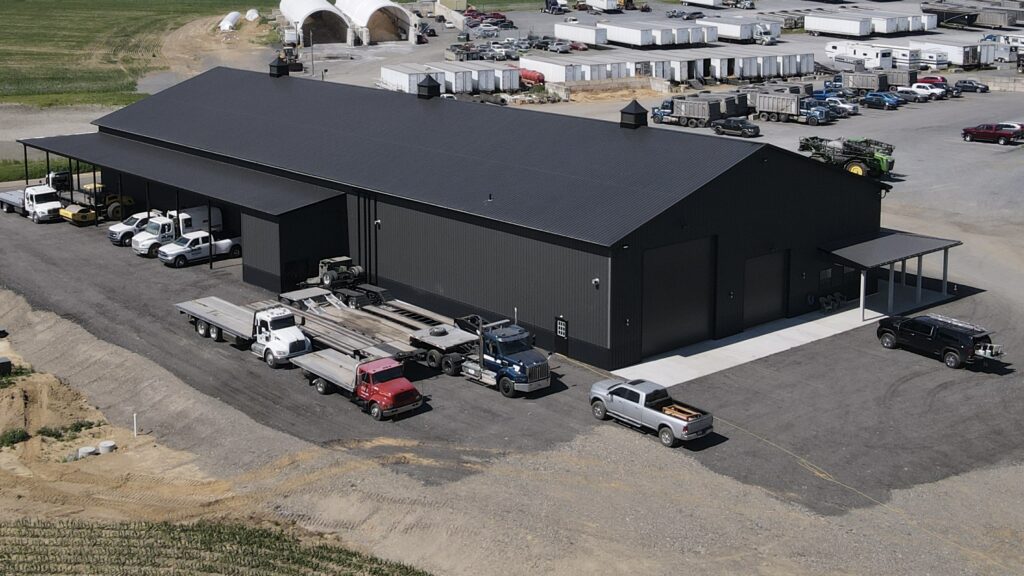

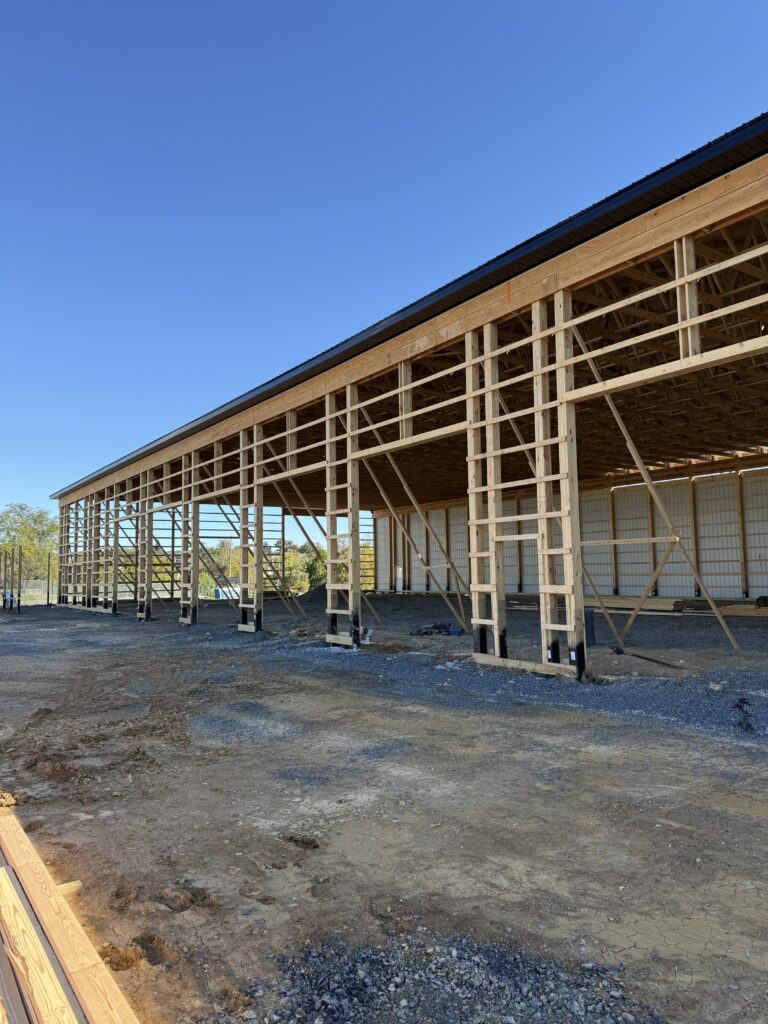

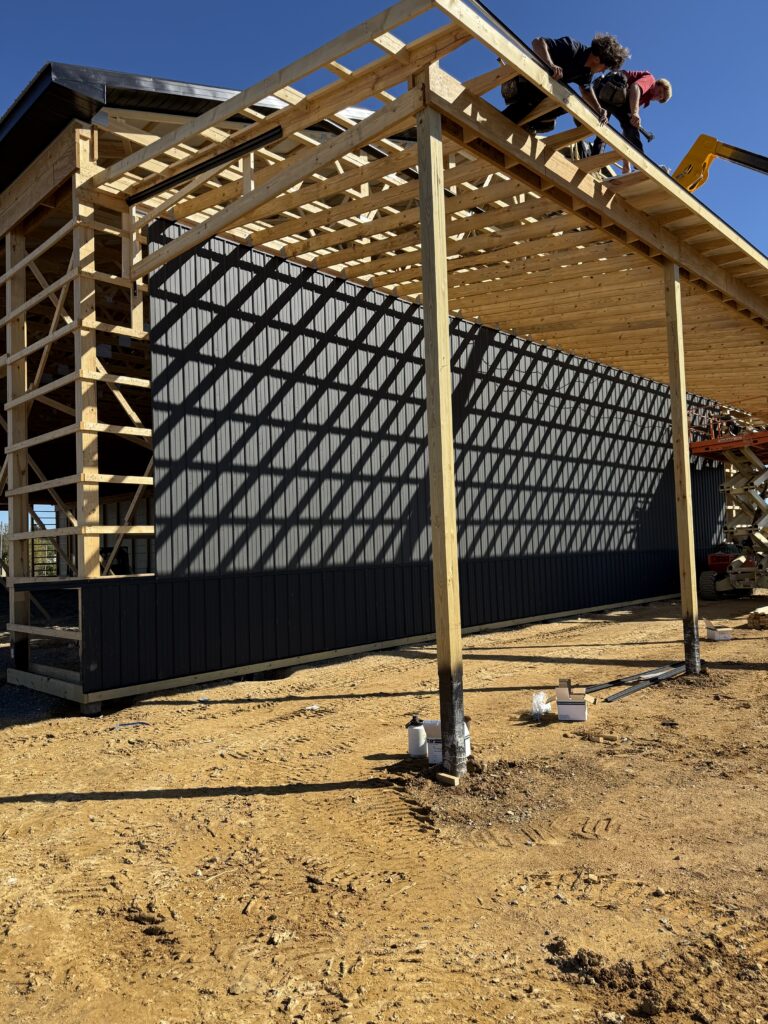

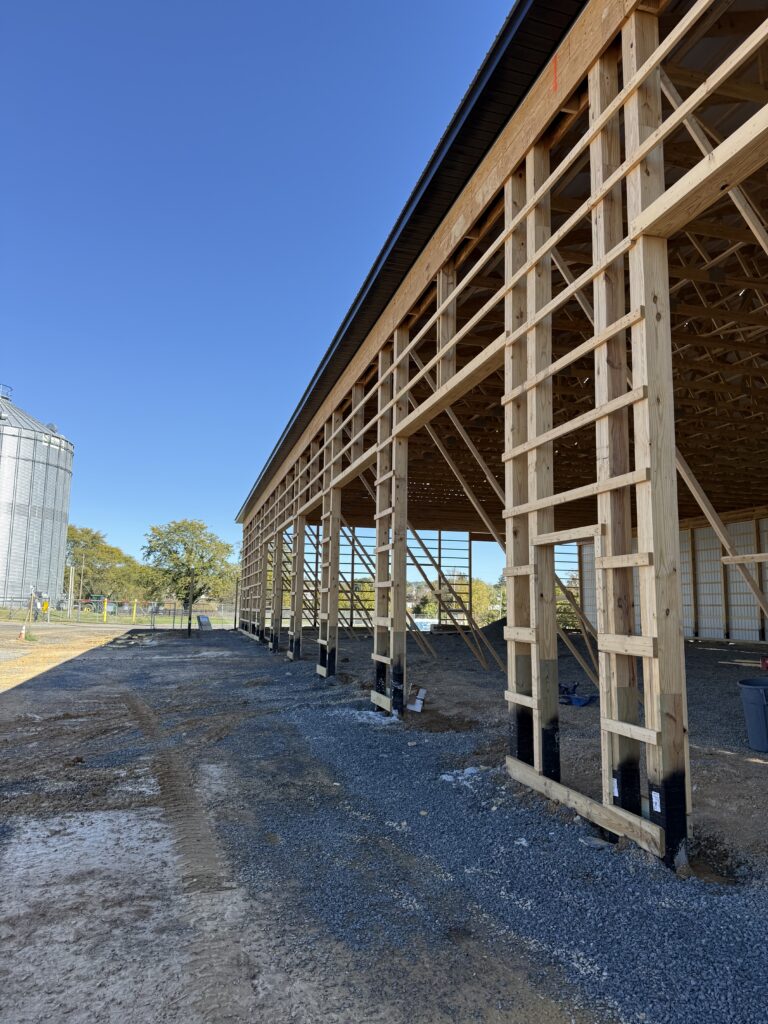

Multiple open lean-to areas for covered exterior space
28-gauge Patriot Panel Roofing

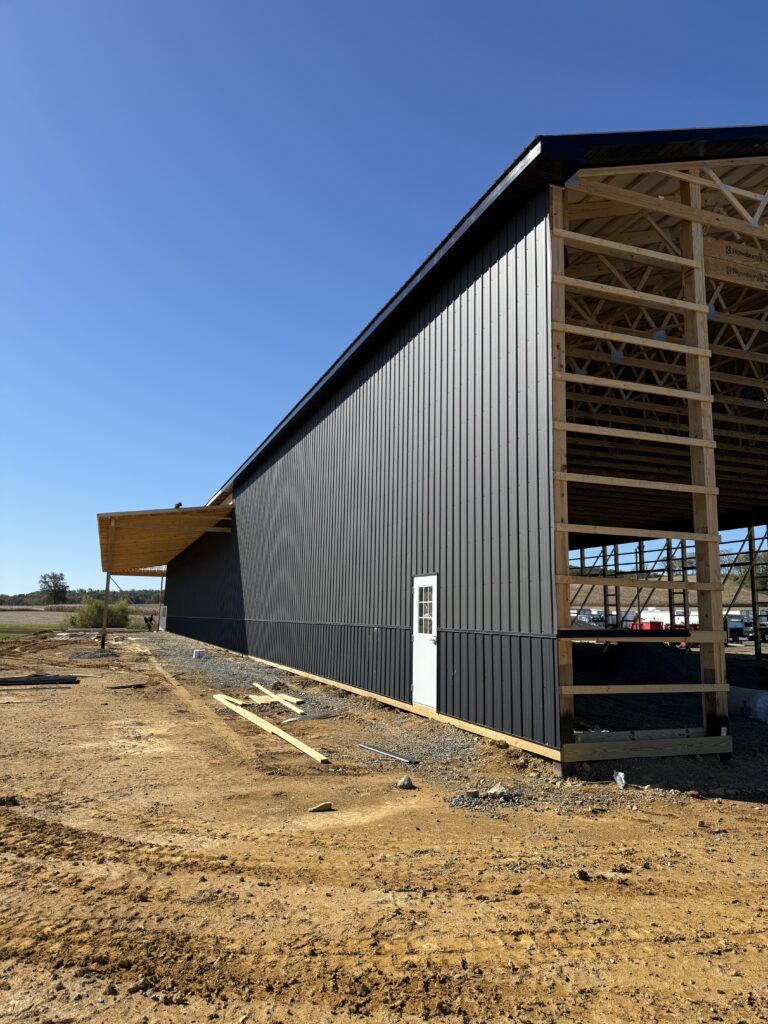

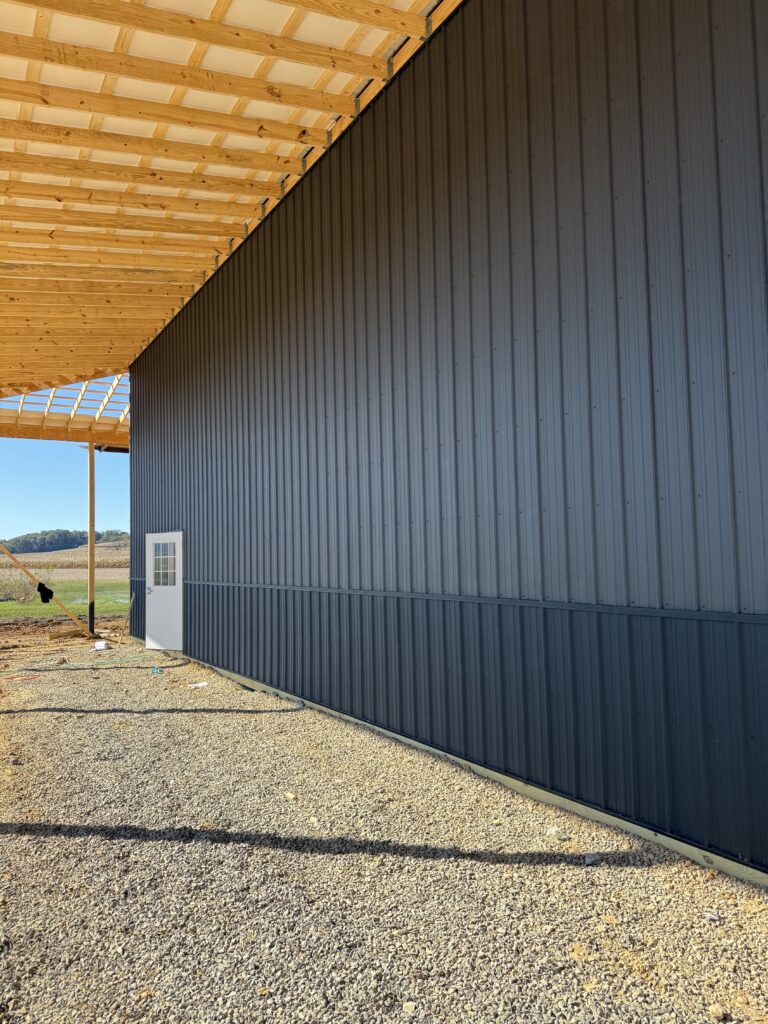

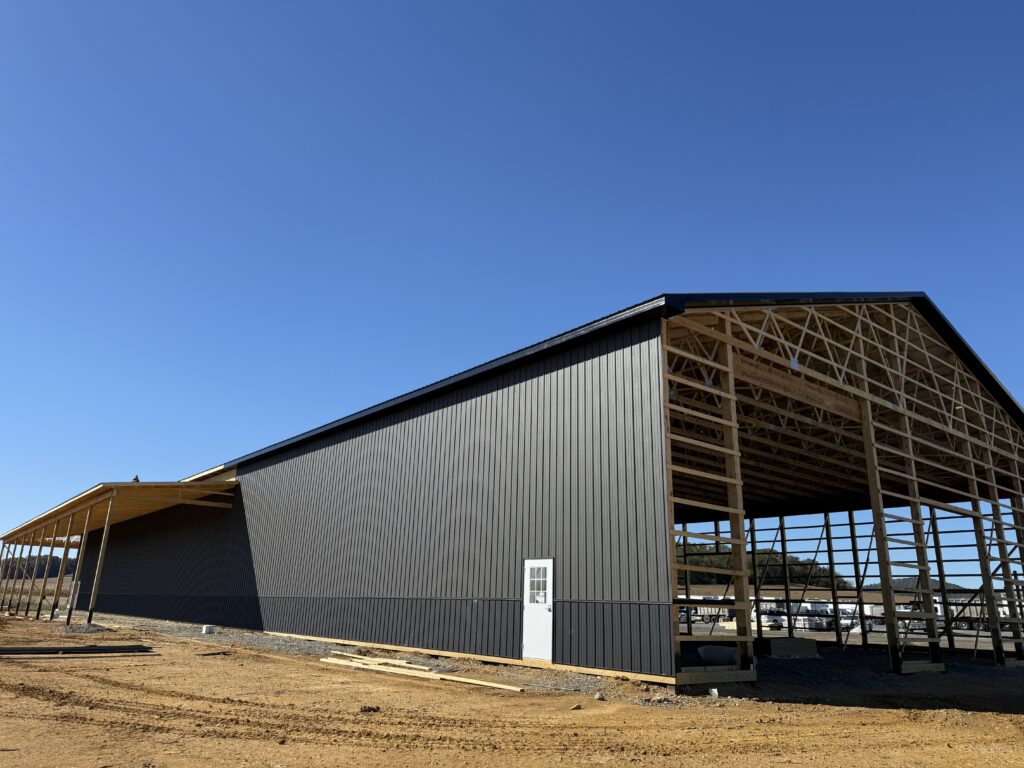

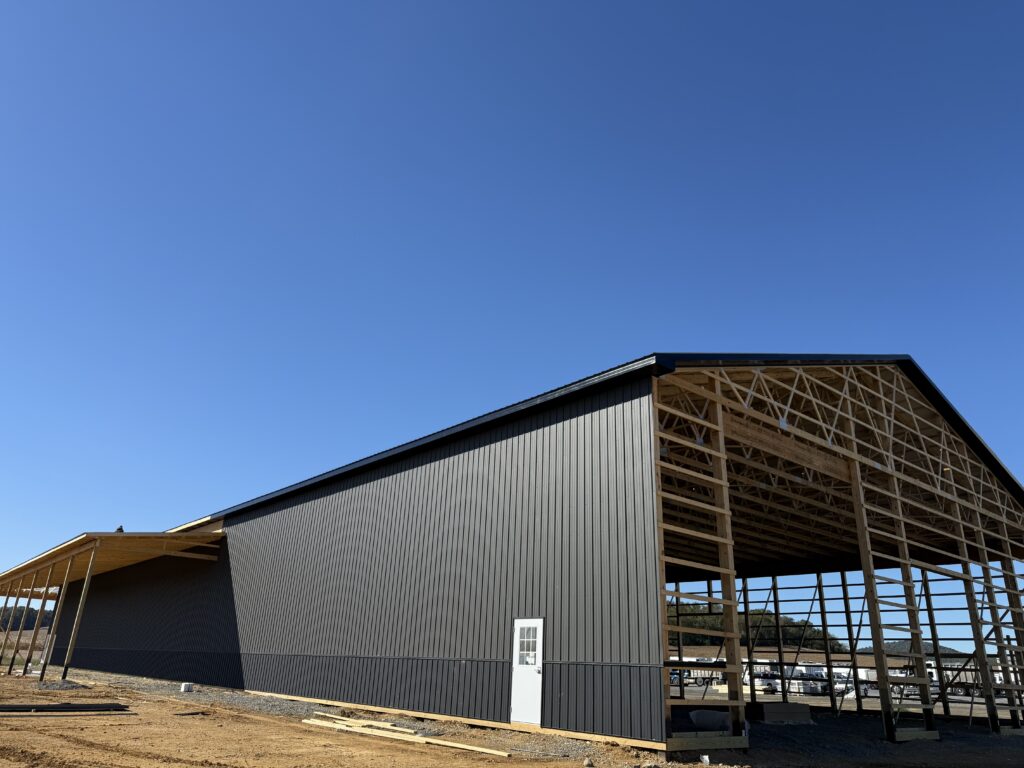

26-gauge Textured Siding
4′ wainscoting
18″ boxed vented eave and gable overhangs
Radiant roof barrier
R-38 blown ceiling insulation
R-21 sidewall insulation

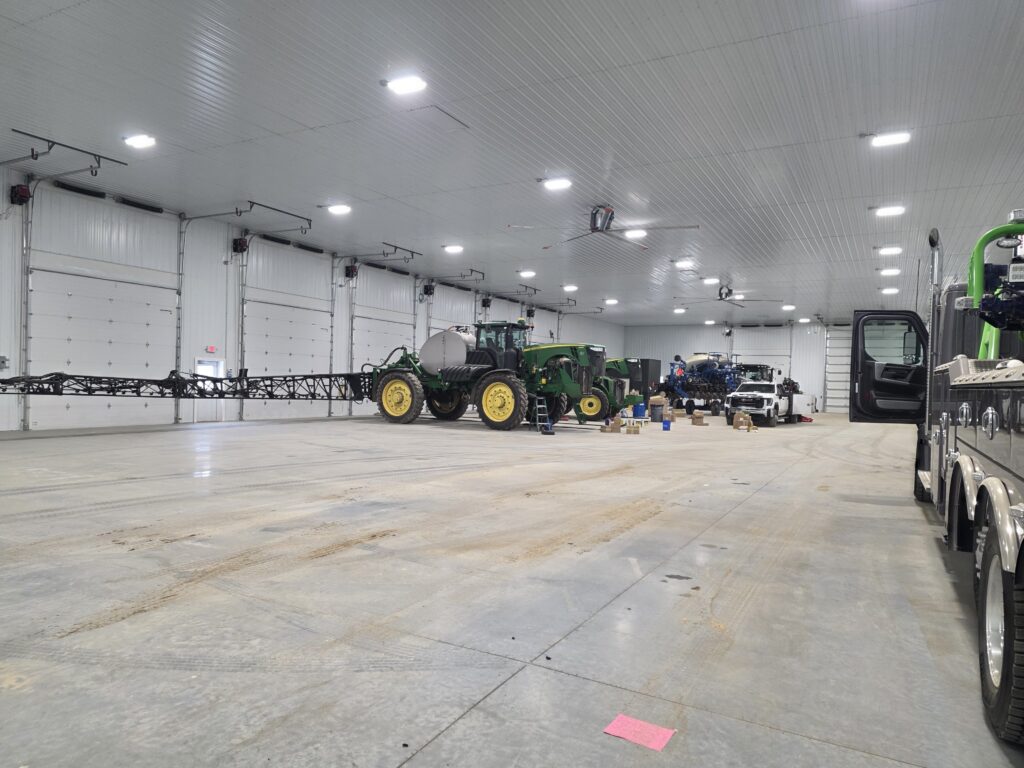

Steel liner panel on ceiling and sidewalls

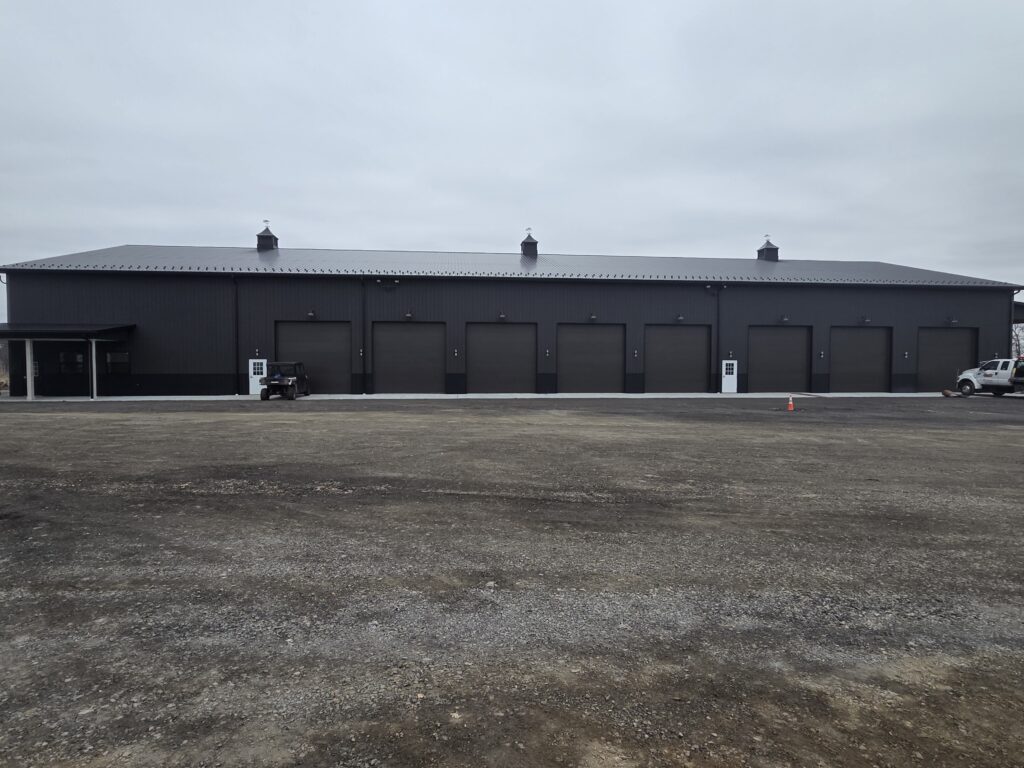

(9) 14′ x 14′ Overhead Doors
(1) 20′ x 20′ Overhead Door
(5) steel 9-lite entry doors with closers and panic bars
(4) insulated windows with grids
(3) 4′ vented cupolas
h
From trucking and equipment storage to warehouse and office use, this project is a strong example of how post-frame construction can provide an efficient, cost-effective solution for commercial & industrial facilitates.
h
If you’re planning a commercial building, equipment facility, or warehouse office space, Fetterville Pole Buildings has the experience, team, and capability to bring your project to life.
