Southampton, PA
Click on the above image to view it in its full size.
Black & Charcoal Done Right
.

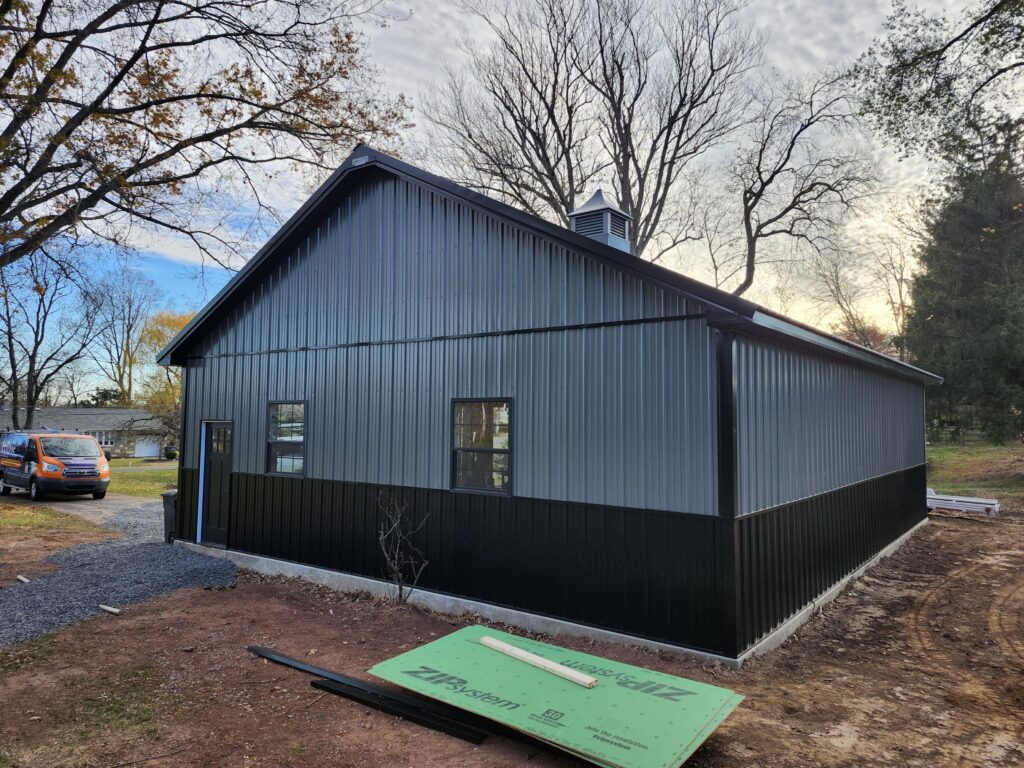

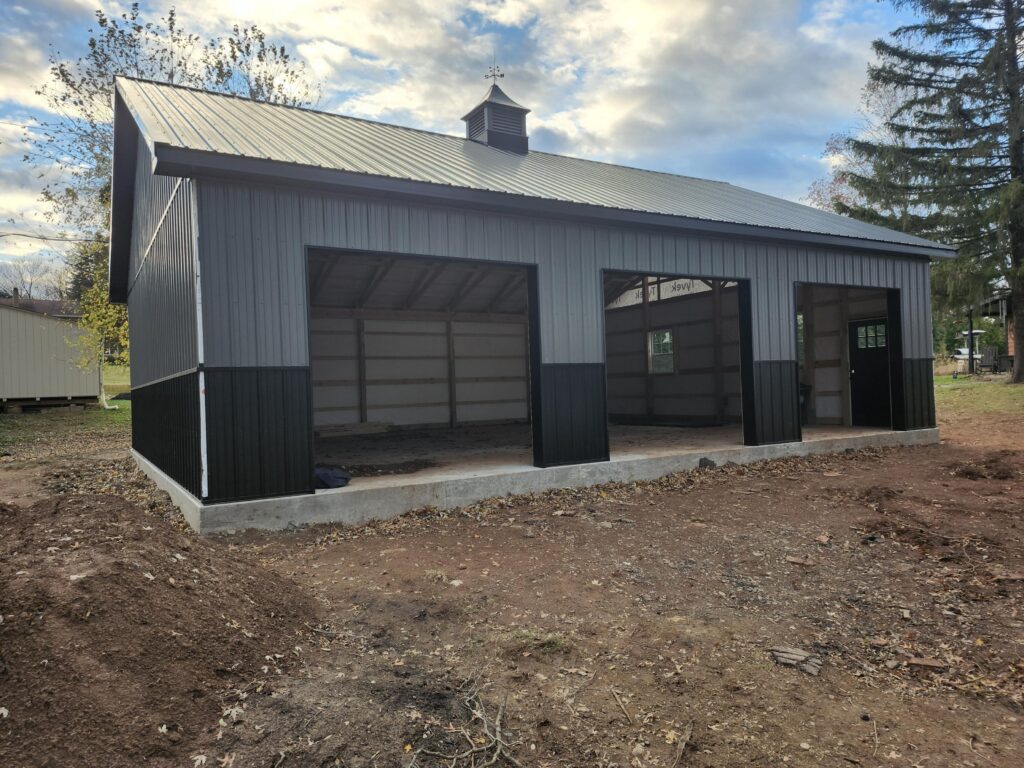

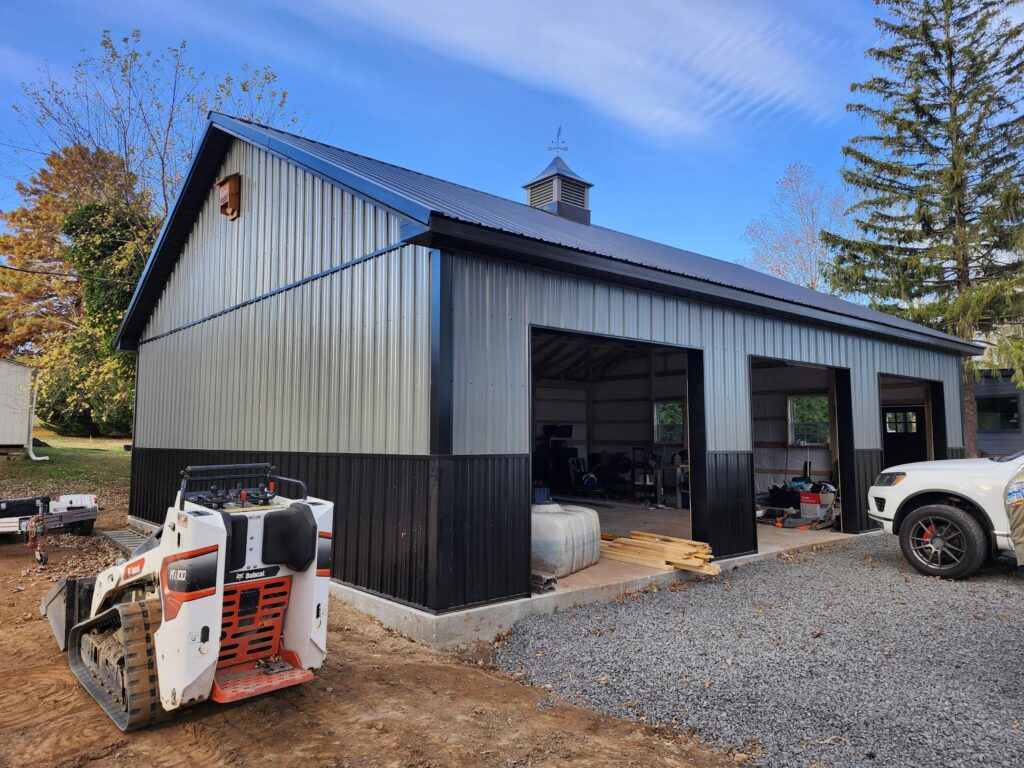

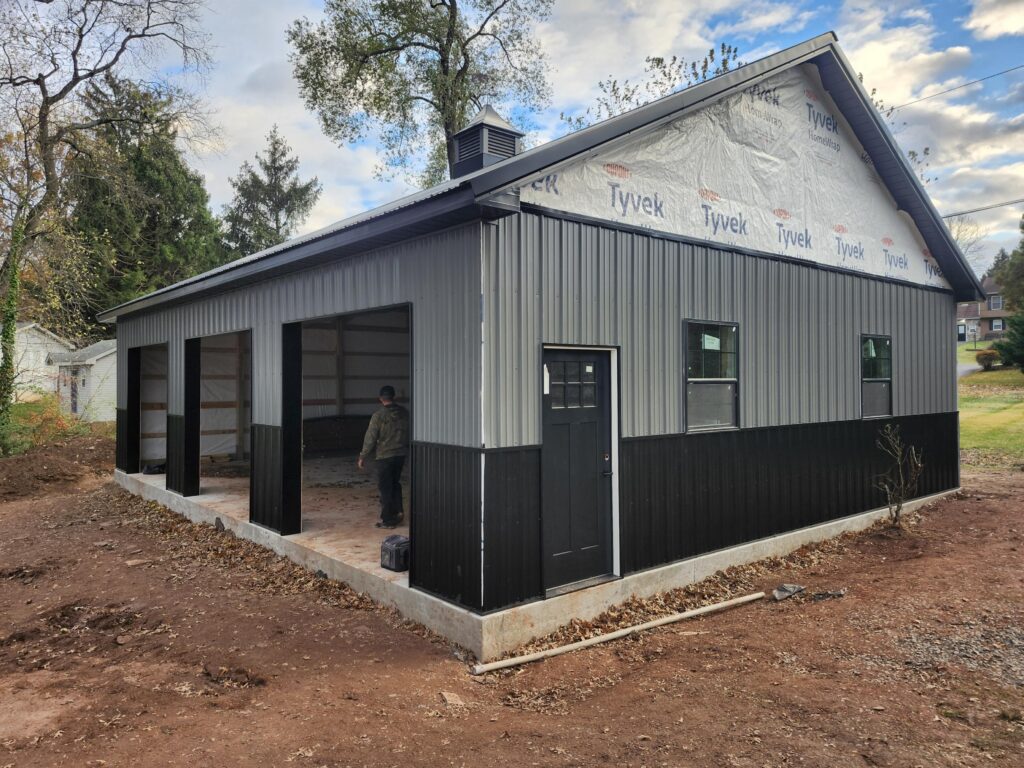

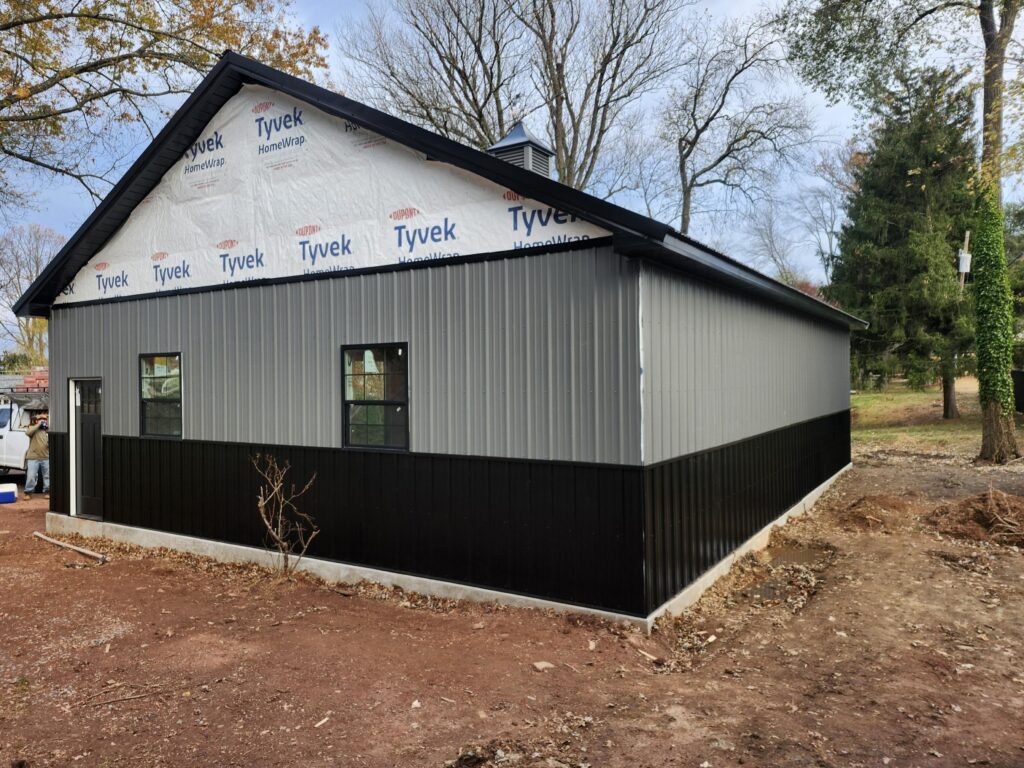

This 32′ x 40′ garage is another great example of the why black & charcoal combo remains a customer favorite. From the black wainscoting and windows to the black doors and cupola. Combined with the 6/12 roof pitch every detail comes together to give this build plenty of character.

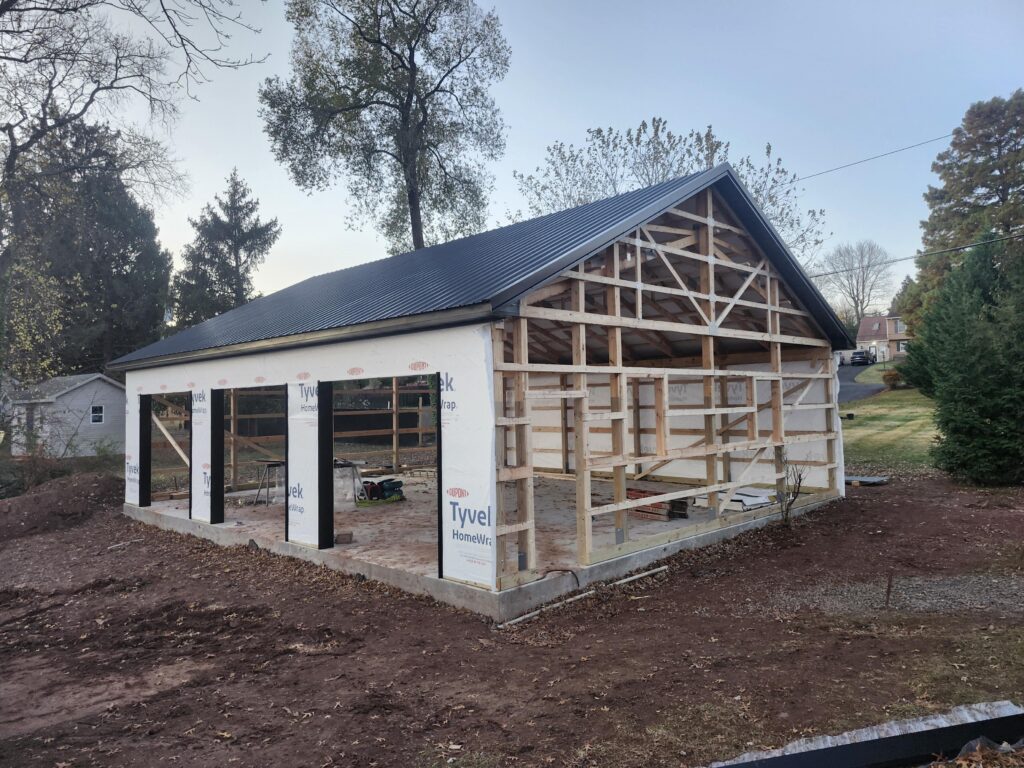

Unlike most post frame builds where posts are set 36″–42″ deep in the ground, this garage was bolted directly to the customer’s concrete pad using Sturdi-Wall brackets. Whether your pad is poured before or after construction, we can tailor the foundation approach to work for you.
.
Features & Specs
32′ W x 40′ L x 10′ Interior Height
6/12 Pitch Scissor Trusses (4′ o/c) with Ridge Vent
3-Ply 2×6 Glulam Bolted with Sturdi-Wall Brackets
Patriot Panel 28-Gauge Siding & Roofing (Lifetime Warranty)
Radiant Roof Barrier (Prevents Condensation)
House Wrap
12″ Overhangs on All Sides
(2) 3′ x 4′ Black Insulated Single-Hung with Grids
(3) 9′ x 8′ Steel Insulated Garage Doors
3′ Vented Cupola with Black Weathervane
.
Thinking of building your own backyard garage?
Call (800) 331-1875 or design your a custom quote today using our 3D Building Designer to start planning now.
.
Project # 034FEJB25
