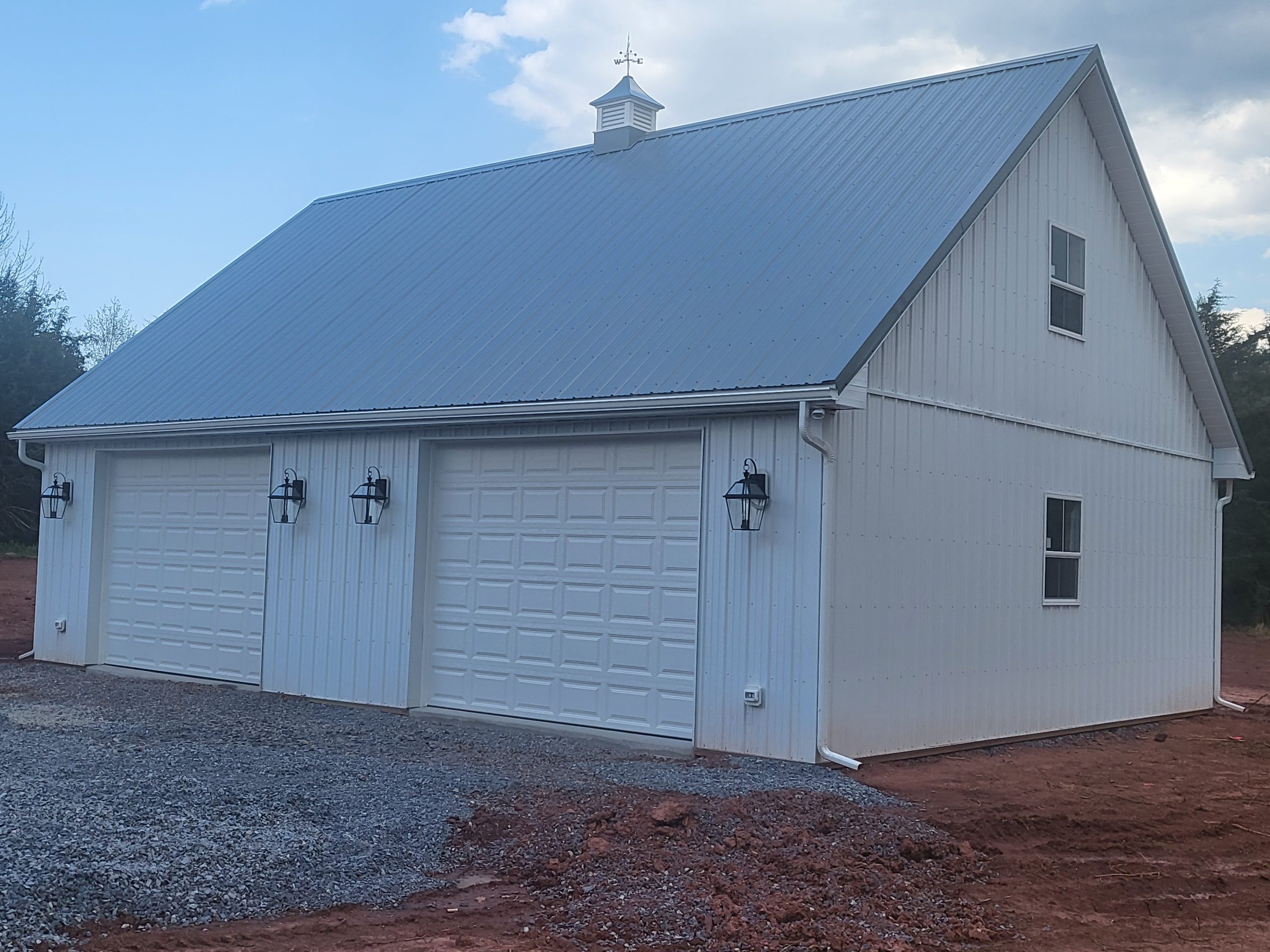

Click on the above image to view it in its full size.Buildings Specs:
30′ width x 40′ length x 10′ inside height
Roof System: 2′ o/c ATTIC trusses w/ Floor Pitch: 10/12 Loading: 30-5-40 Attic w/floor

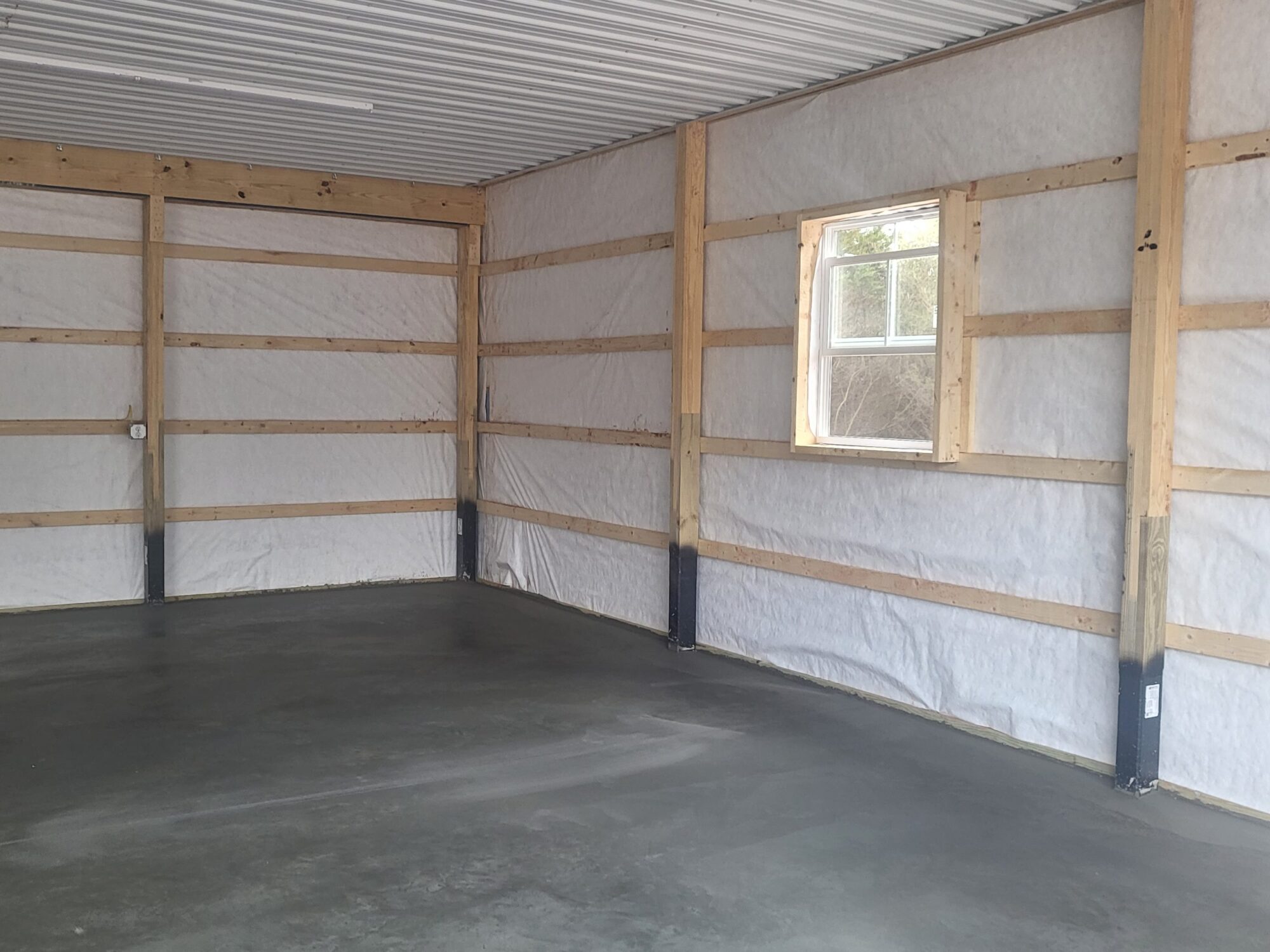

Walls: 8′ o/c 3-Ply 2×6 Glulam Load-Bearing Posts
Walls: Smart Post Option
Siding: 28 Gauge Painted Steel (Brite White)
Siding: 2244 sqft House Wrap
Roofing Type: 27 Gauge Painted Steel with Ridge Vent (Slate)
Overhangs: 12″ Boxed Vented on 2-eaves & 2-gables soffit and fascia
Insulation/R-21 Batt on Sides (Attic Walls)
Insulation/R-30 Batt on Ceiling (Attic Ceiling)
Insulation/R-38 Blown Insulation on Main Building Ceiling
Insulation/Radiant Insulation Barrier on Roof
Liner Panel on Ceiling
Concrete Floor: 4″ concrete floor 4000 psi w/fiber, control joints
2 – 12 X 9 Insulated Steel-Backed (White) Overhead Door(s) with Low Head Room Kit
1 – 3′ X 6’8″ Steel Flush Entry Door(s)
1 – 3′ X 6’8″ Fiberglass 9-Lite Entry Door(s)
4 – 36″ x 44″ Single Hung Insulated w/ Half Screen Window(s), with grids
1 – 2′ Cupola, Vented and a Standard Black weathervane
84 lineal ft of Gutter & 2 Downspouts

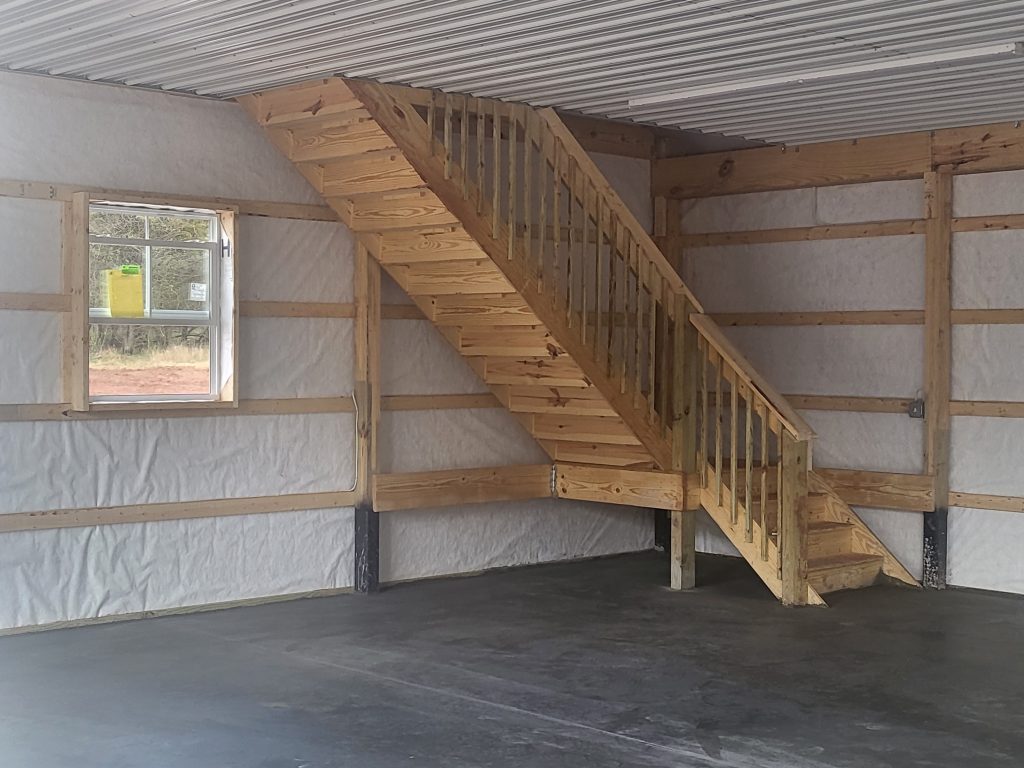

1 – 42″ Wide Stairway w/ Landing
Project# 003FEBS24
